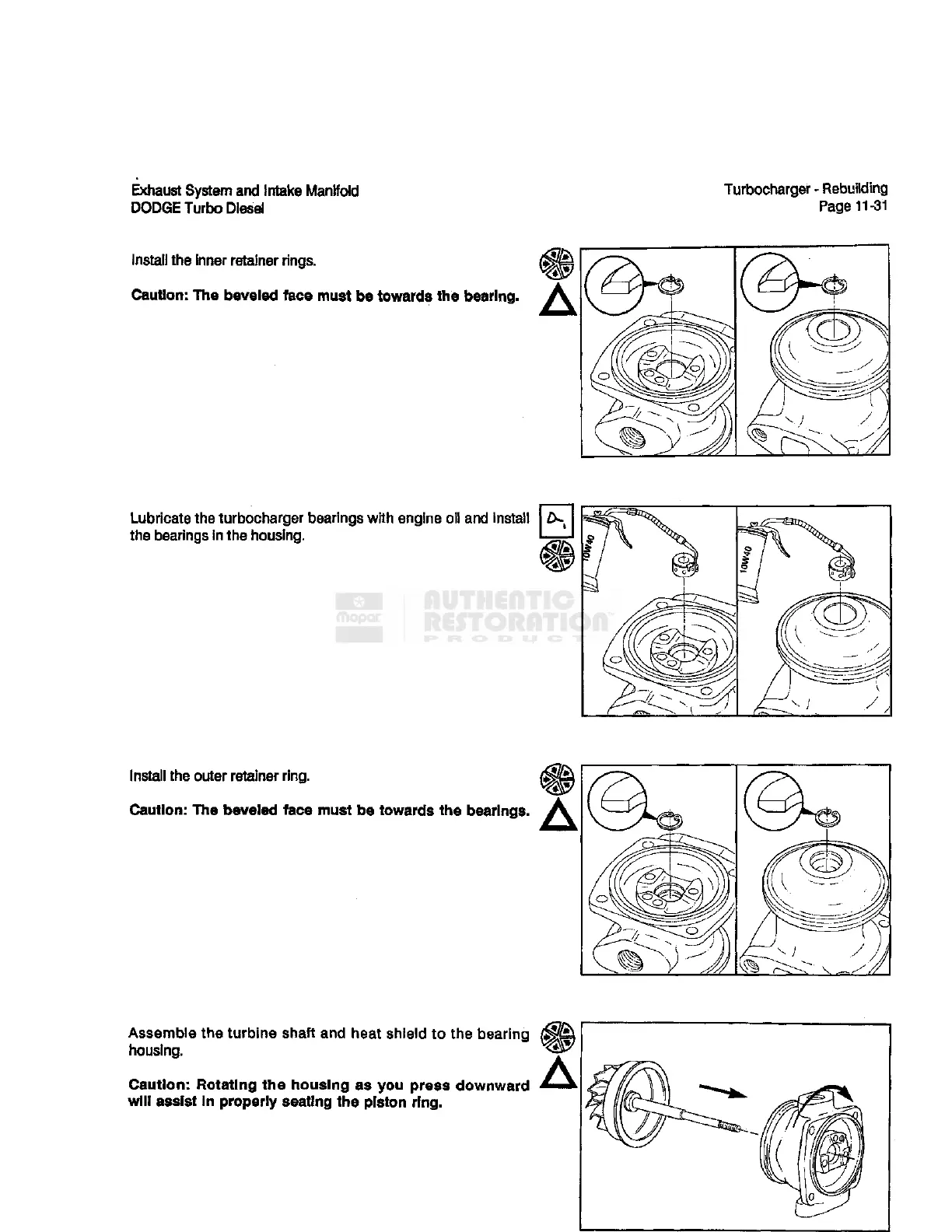

Exhaust
System and Intake Manifold
DODGE Turbo Diesel
Turbocharger - Rebuilding
Page 11-31
Install the inner retainer rings.
Caution:
The beveled face must be towards the bearing.
Lubricate the turbocharger bearings with engine oil and install
the bearings in the housing.
Install the outer retainer
ring.
Caution:
The beveled face must be towards the bearings.
Assemble the turbine shaft and heat shield to the bearing (jlpi
housing.
Caution:
Rotating the housing as you press downward • •
will
assist in properly seating the piston
ring.
