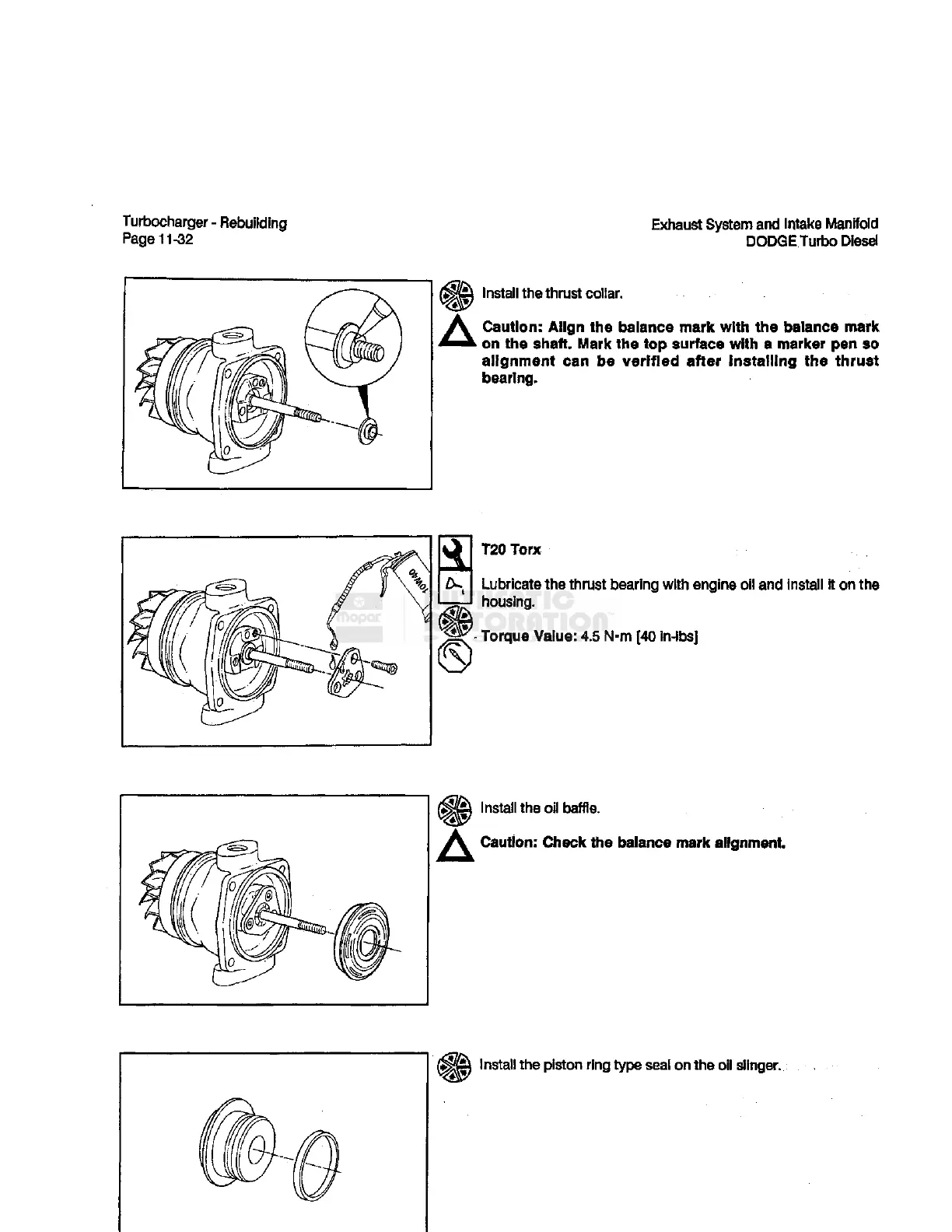

Turbocharger - Rebuilding
Page 11-32
Exhaust System and Intake Manifold
DODGE Turbo Diesel
Install the thrust collar.
Caution: Align the balance mark with the balance mark
on the shaft. Mark the top surface with a marker pen so
alignment can be verified after installing the thrust
bearing.
til
As
T20 Torx
Lubricate the thrust bearing with engine oil and install it on the
housing.
^'Torque Value: 4.5 N-m [40 in-lbs]
{
1|P
lnsta
H ^e oil baffle.
Caution: Check the balance mark alignment.
^Im install the piston ring type seal on the oil slinger.
