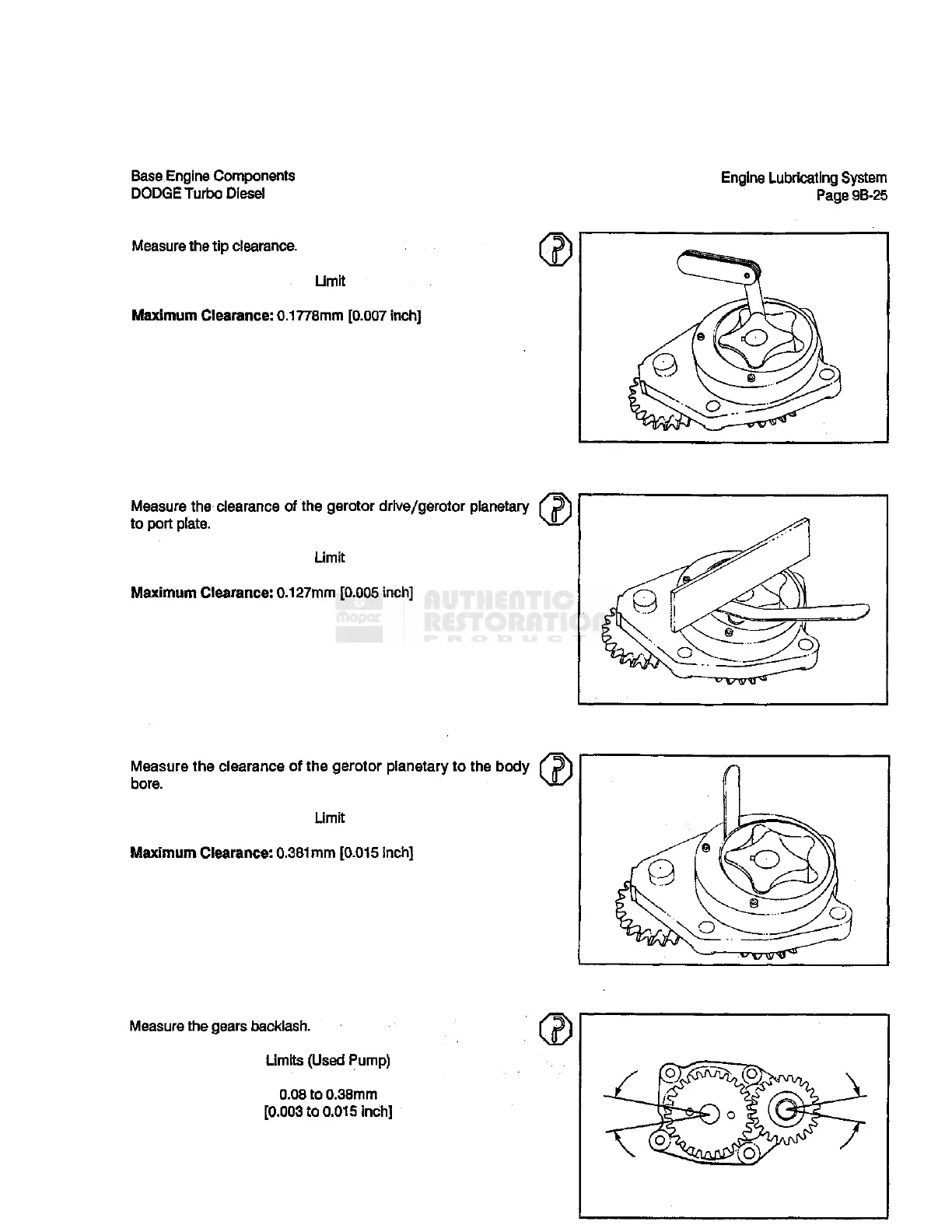

Base Engine Components
DODGE Turbo Diesel
Engine Lubricating System
Page 9B-25
Measure the tip clearance.
Limit
Maximum Clearance; 0.1778mm [0.007 inch]
Measure the clearance of the gerotor drive/gerotor planetary \ ~^f\
to port plate. ^LS
Limit
Maximum Clearance: 0.127mm [0.005 inch]
Measure the clearance of the gerotor planetary to the body \lf\
bore, \1L/
Limit
Maximum Clearance: 0.381mm [0.015 inch]
Measure the gears backlash.
Limits (Used Pump)
0.08 to 0.38mm
[0.003 to 0.015 inch]
