In-Chassis

Repairs

Page 9F-12

Base Engine Components

DODGE

Turbo Diesei

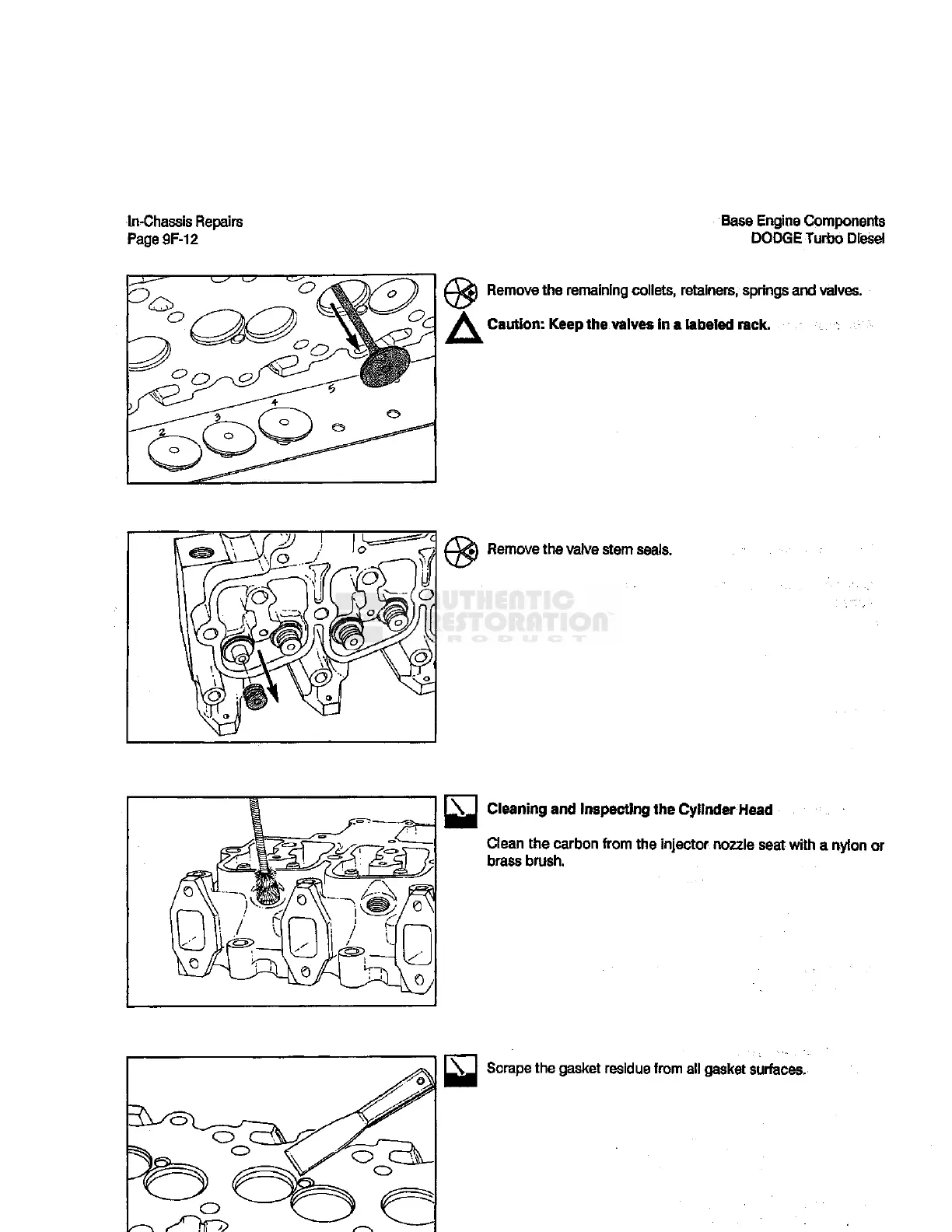

Remove

the remaining

collets,

retainers,

springs

and

valves.

Caution:

Keep

the wives in a labeled rack.

Remove the valve stem

seals.

\J Scrape the gasket residue from all gasket surfaces.
