Page§F-17

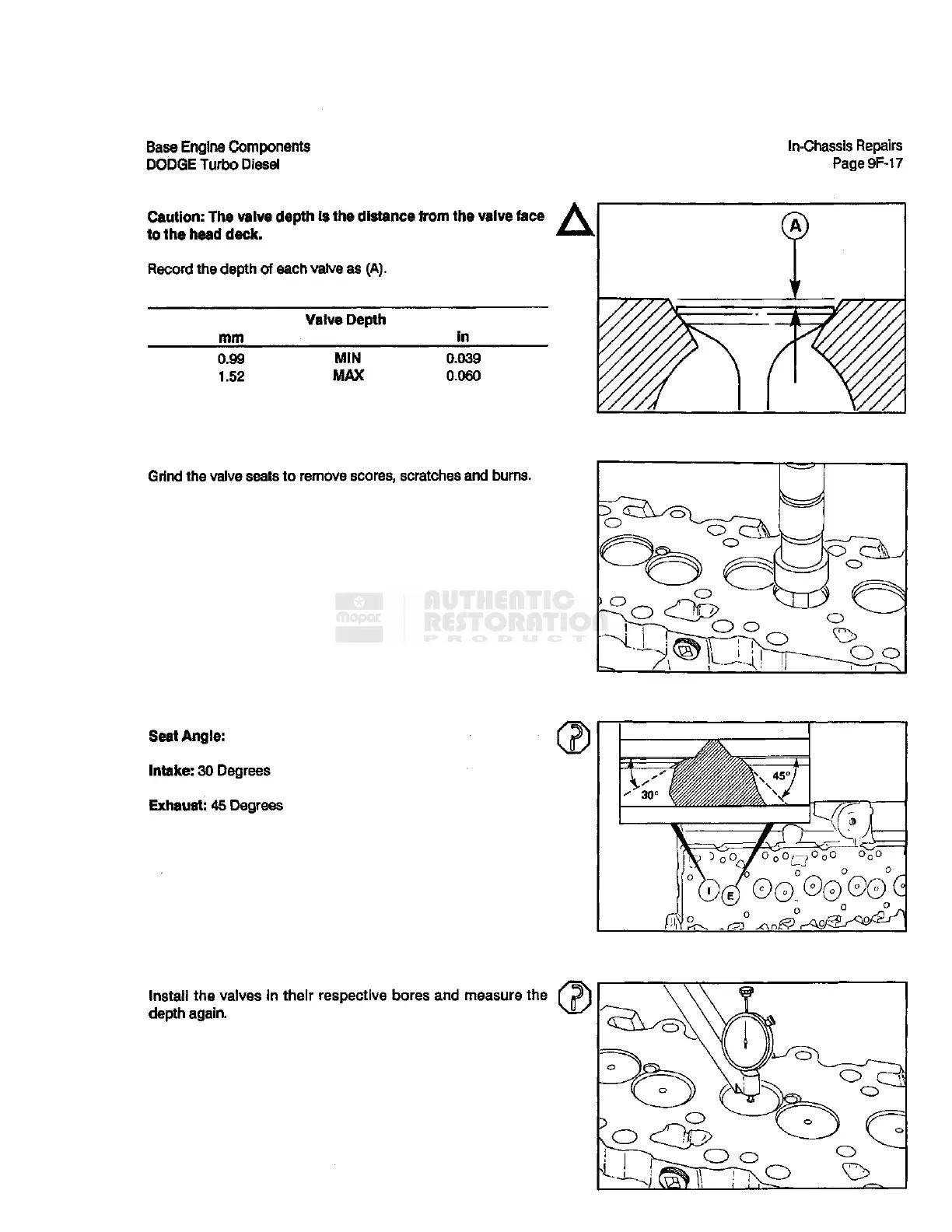

Grind the valve

seats

to remove scores, scratches and bums.

Seat

Angle:

Intake: 30 Degrees

Exhaust:

45 Degrees

Install the valves In their respective bores and measure the

depth

again.
