Dodge D350 1990 - Page 403

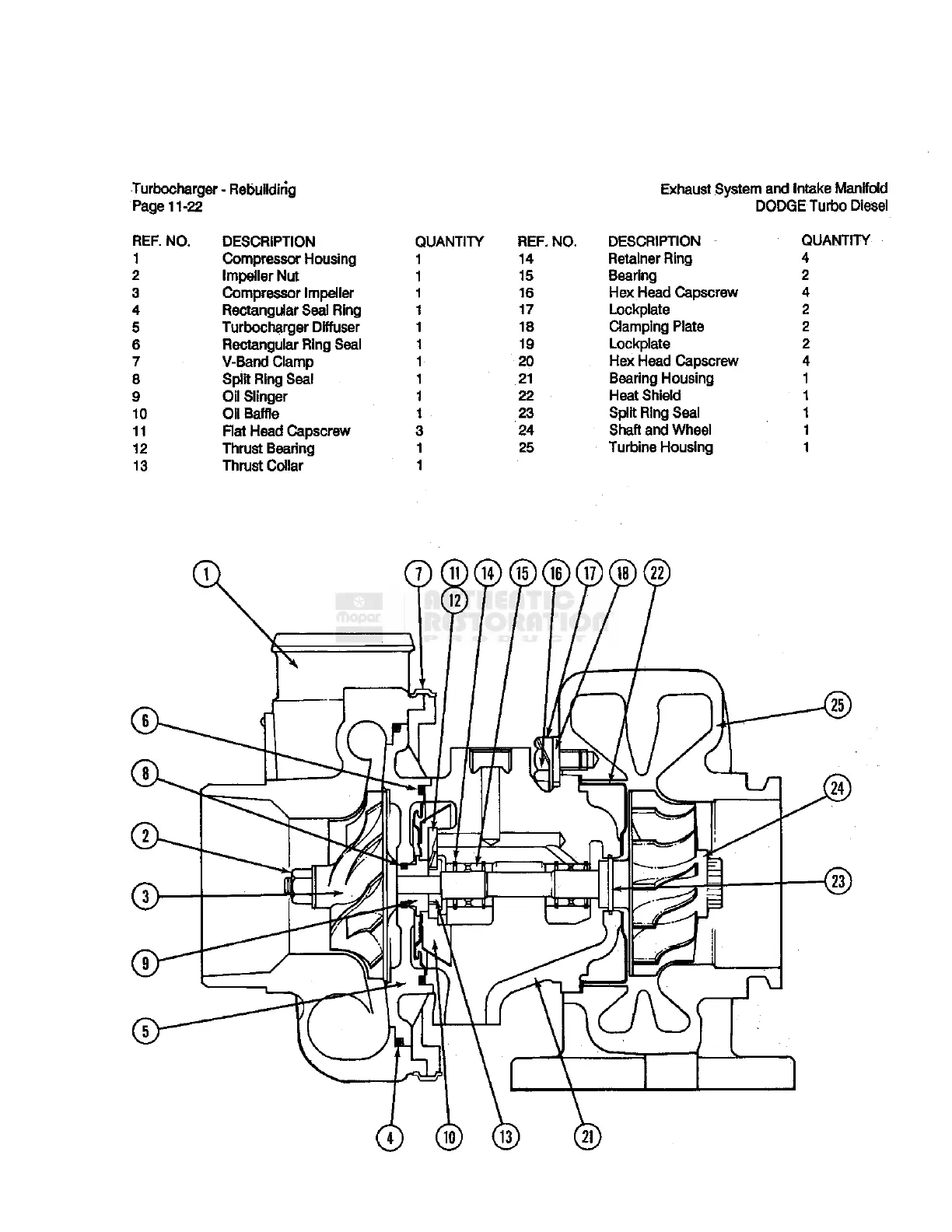

Turbocharger - Rebuilding
Page 11 -22
Exhaust System and Intake Manifold
DODGE Turbo Diesel
REF. NO. DESCRIPTION QUANTITY
1 Compressor Housing 1
2 Impeller Nut 1
3 Compressor Impeller 1
4 Rectangular Seal Ring 1
5 Turbocharger Diffuser 1
6 Rectangular Ring Seal 1
7 V-Band Clamp 1
8 Split Ring Seal 1
9 Oil Slinger 1
10 Oil Baffle 1
11 Rat Head Capscrew 3
12 Thrust Bearing 1
13 Thrust Collar 1
REF. NO. DESCRIPTION QUANTITY
14 Retainer Ring 4
15 Bearing 2
16 Hex Head Capscrew 4
17 Lockplate 2
18 Clamping Plate 2
19 Lockplate 2
20 Hex Head Capscrew 4
21 Bearing Housing 1
22 Heat Shield 1
23 Split Ring Seal 1
24 Shaft and Wheel 1
25 Turbine Housing 1
