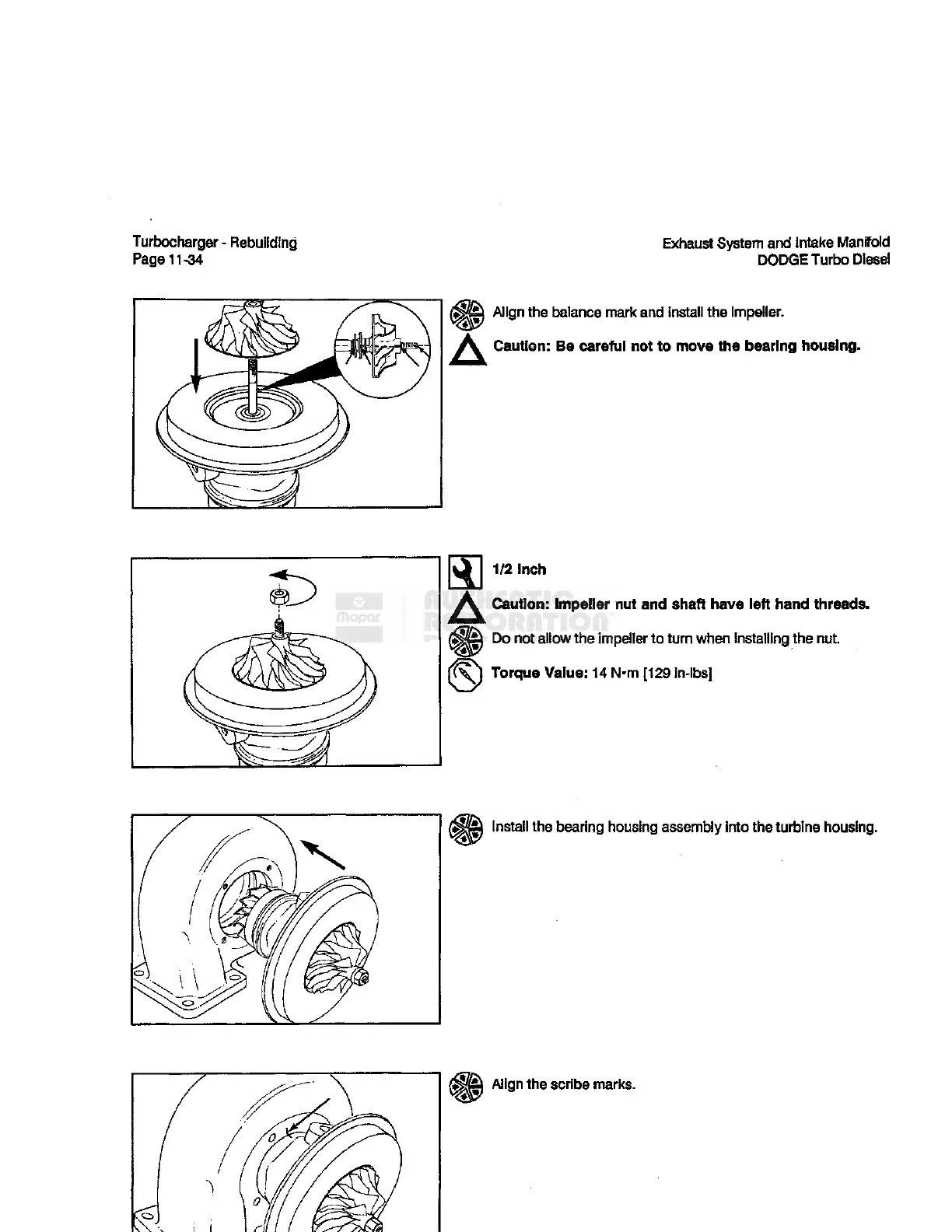

Turbocharger - Rebuilding
Page 11-34
Exhaust
System
and intake
Manifold
DODGE
Turbo Diesel
(||^ Align the balance
mark
and install the impeller.
j£S^ Caution: Be careful not to move the bearing housing.
|^| 1/2 Inch
j/S^ Caution: Impeller nut and shaft have
left
hand threads.
M±) Do not allow the Impeller to
turn
when Installing the nut.
Torque Value: 14 N-m [129 In-lbs]
||a
Install the bearing housing assembly
into
the
turbine
housing.
Align the scribe marks.
