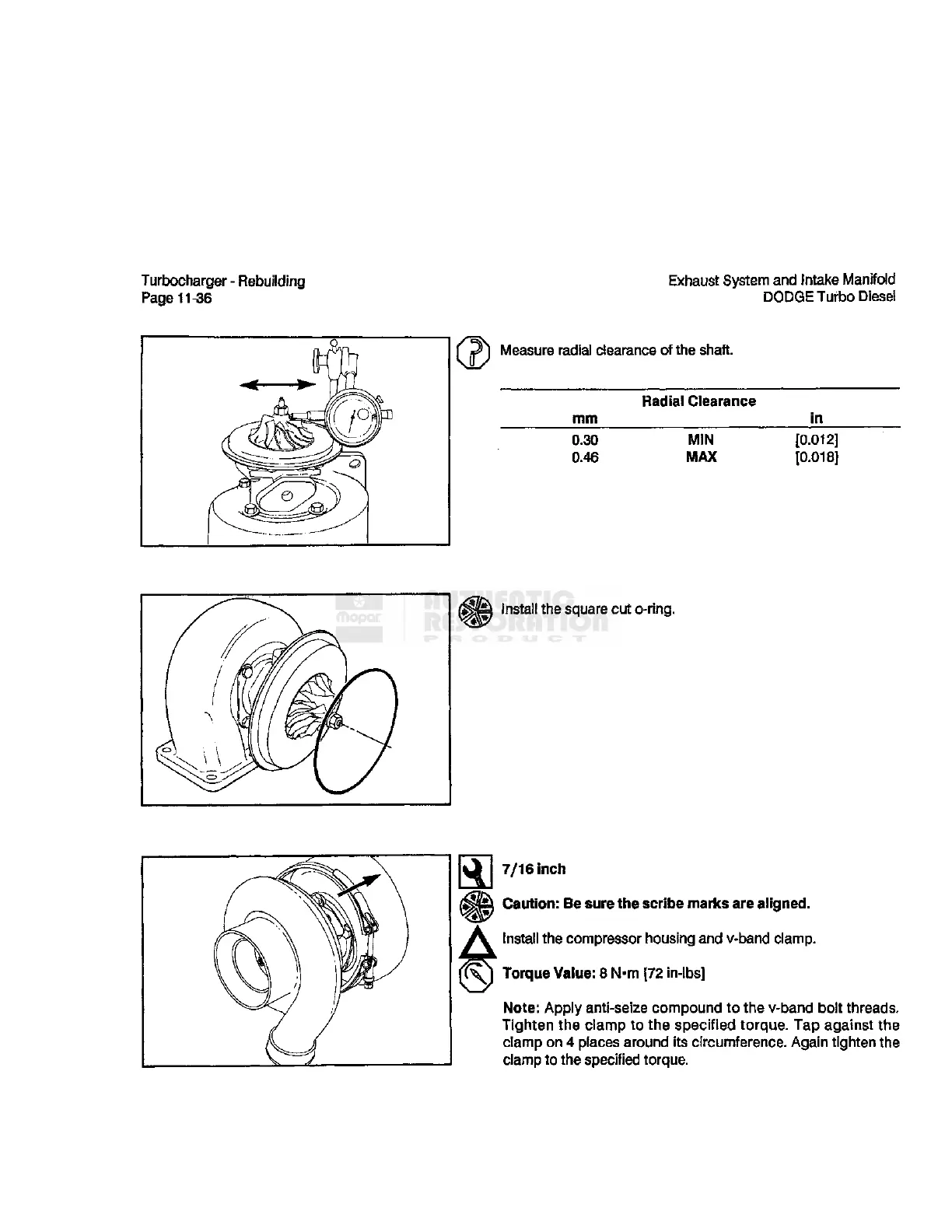

Turbocharger - Rebuilding
Page 11-36
Exhaust System and Intake Manifold
DODGE Turbo Diesel
install the square cut o-ring.
7/16 inch
;^Ȥ Caution; Be sure the scribe marks are aligned.
Install the compressor housing and v-band clamp.
t\) Torque Value: 8 N-m [72 in-lbs]
Note: Apply anti-seize compound to the v-band bolt threads.
Tighten the clamp to the specified torque. Tap against the
clamp on 4 places around its circumference. Again tighten the
clamp to the specified torque.
