2.3.1 Front Section

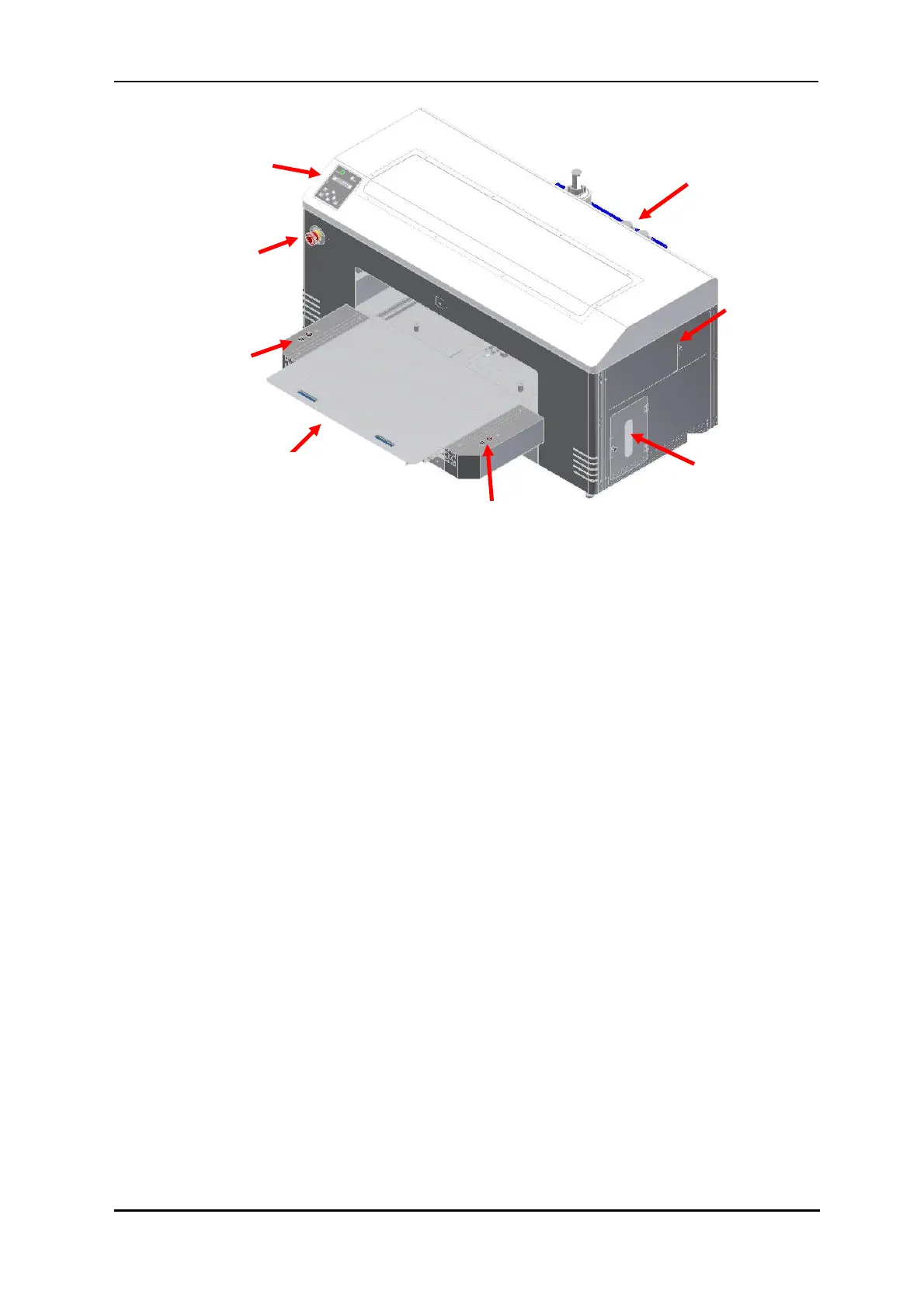

FIGURE 2-2 PRINTER
FRONT SECTION PARTS
Emergency stop
LCD and keypad
Bed up/down
buttons &
status light
Bed Load/eject
buttons &
status light
Waste ink
access
Pressure reset
and status light
WIMS &
Bulk ink
system
Media
tray
