2.3.2 Rear Section
Name
Function
AC mains power inlet
For inserting the mains power cable plug.
Network interface connector
Connector to connect a network interface cable.
USB cable connector
Connector to connect a USB cable.
TABLE 2-2 PRINTER REAR SECTION PARTS FUNCTION

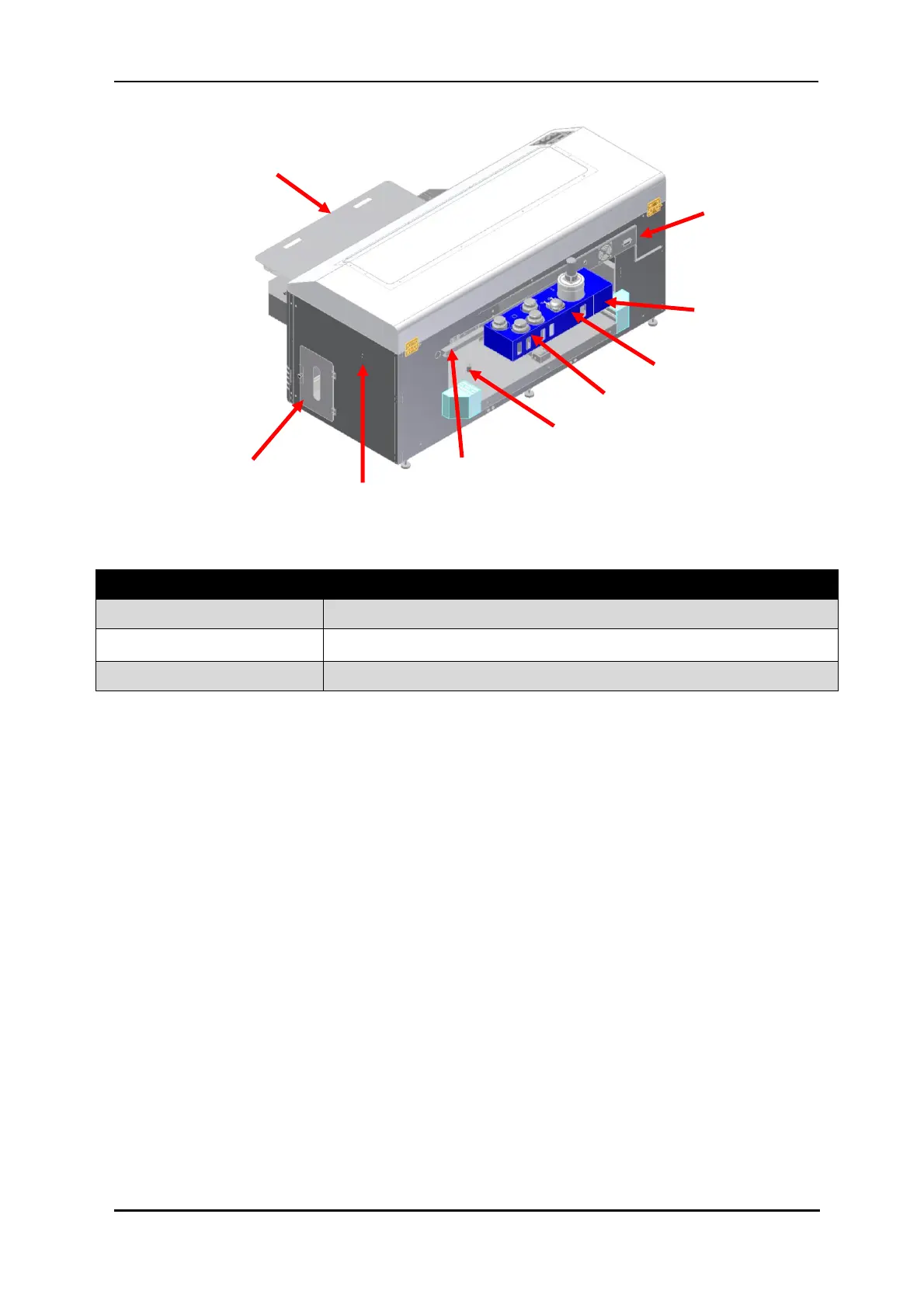

FIGURE 2-3 PRINTER
REAR SECTION PARTS
Media tray
Mains
inlet
Ethernet and
USB
WIMS unit
WIMSPump
and stirrer
Colour ink
bottles
Optical
sensor
Waste ink
access
Pressure reset
and status light
