Seat lock
Working lock (1) you can remove the passenger seat,
to reach the tool box, and the rider seat, to reach the
maintainer connector and other devices.
Removing the passenger seat
the key into the catch (1) and turn it clockwise
until the passenger seat latch disengages with an
audible click.
Remove the passenger seat (2) by the front
end and slide it forward and upwards to release the
seat rear fastener (3).

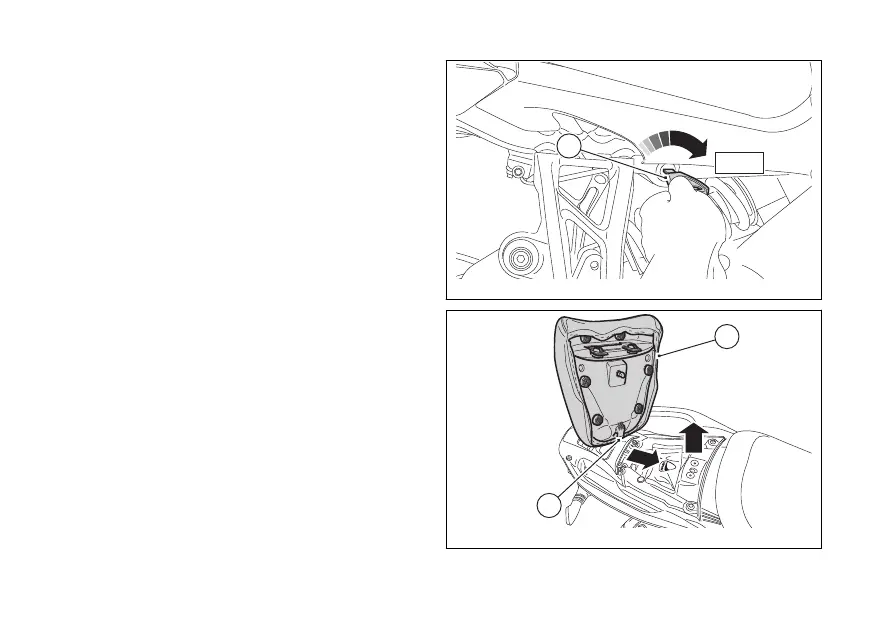

Fig 8
Fig 9
36
