Duplo DSC-10/20 User Manual

2-1
Chapter 2 Basic Operation
Chapter 2 Basic Operation

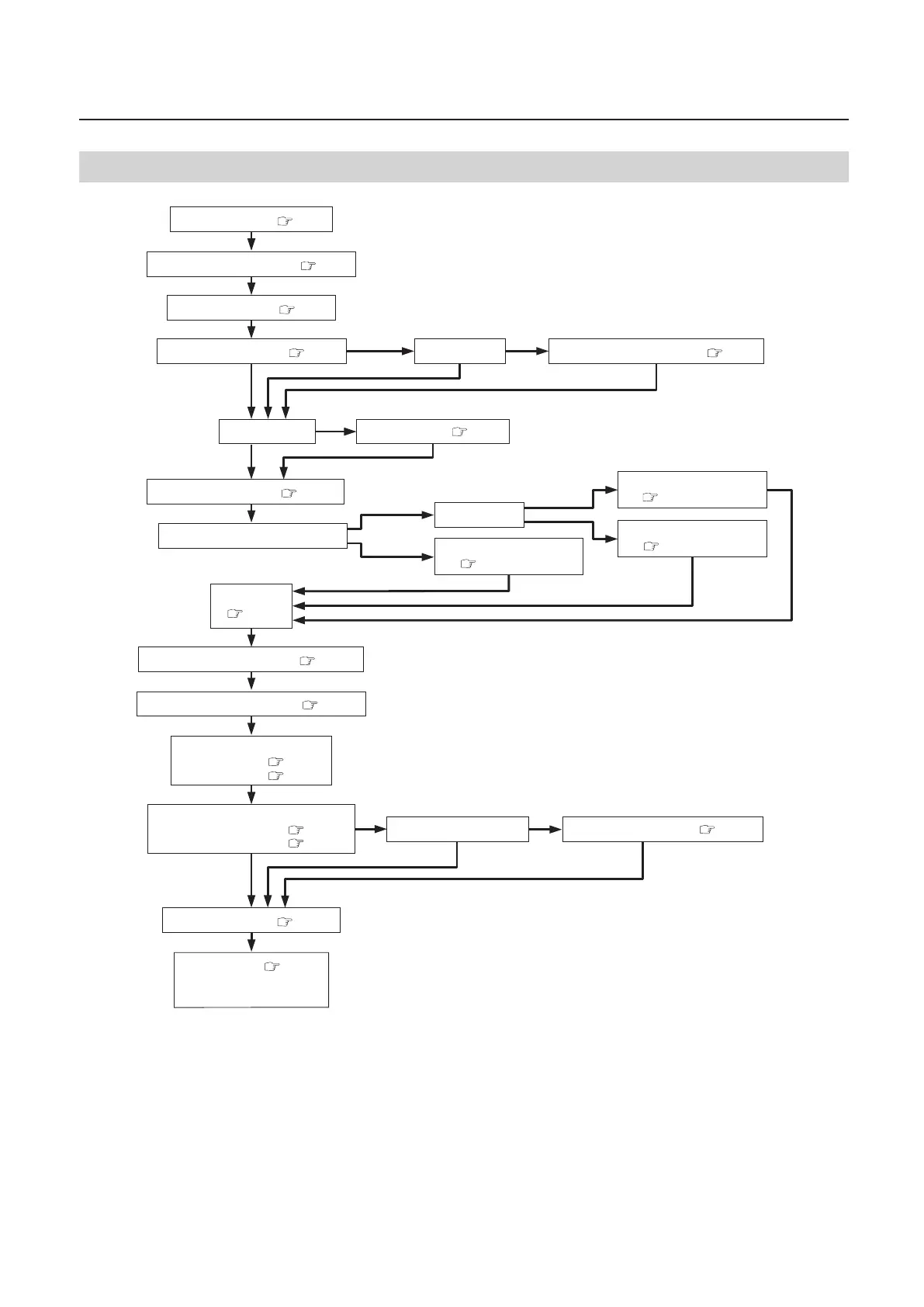

1. Flowchart of Operations
What is the program mode setting?
Use the stacker?
Insert interleaf?
Insert interleaf?
No
No
No
Yes
Yes
Yes
No
All Bins Mode
Alternate Mode
All Bins Mode
Alternate Mode
Adjust air blow.
• Separating air
• Pickup air
Using downstream unit?
( P.2-2)
Turn on the power.
Set the paper eject direction.
( P.2-2)
Set the block mode.
( P.2-3)
Set the interleaf insert mode.
( P.2-5)
P.2-14)
Conrm the order of loading.
(
P.2-11)
Conrm the order of loading.
(
P.2-13)
Conrm the order of loading.
(
P.2-6)
Set the stacker.
(
P.2-4)
Set the program mode.
(
P.2-11)
Conrm paper direction.
(
P.2-17)
Load paper.
(
P.2-20)
Adjust the guide and stopper.
(
P.2-21)
Adjust the stack height sensor.
(
P.2-22)
(
P.2-24)
(
Set the error detection function.
• Double-feed detection
• Feed-error detection
P.2-27)
(
P.2-28)
(
Downstream unit setting
P.2-29)
(
Perform the preset.
( P.2-29)
( P.2-31)
Start collating.
• Set the collating speed
• Set the number of sets
Yes
