1-2
Chapter 1 Prior to Use

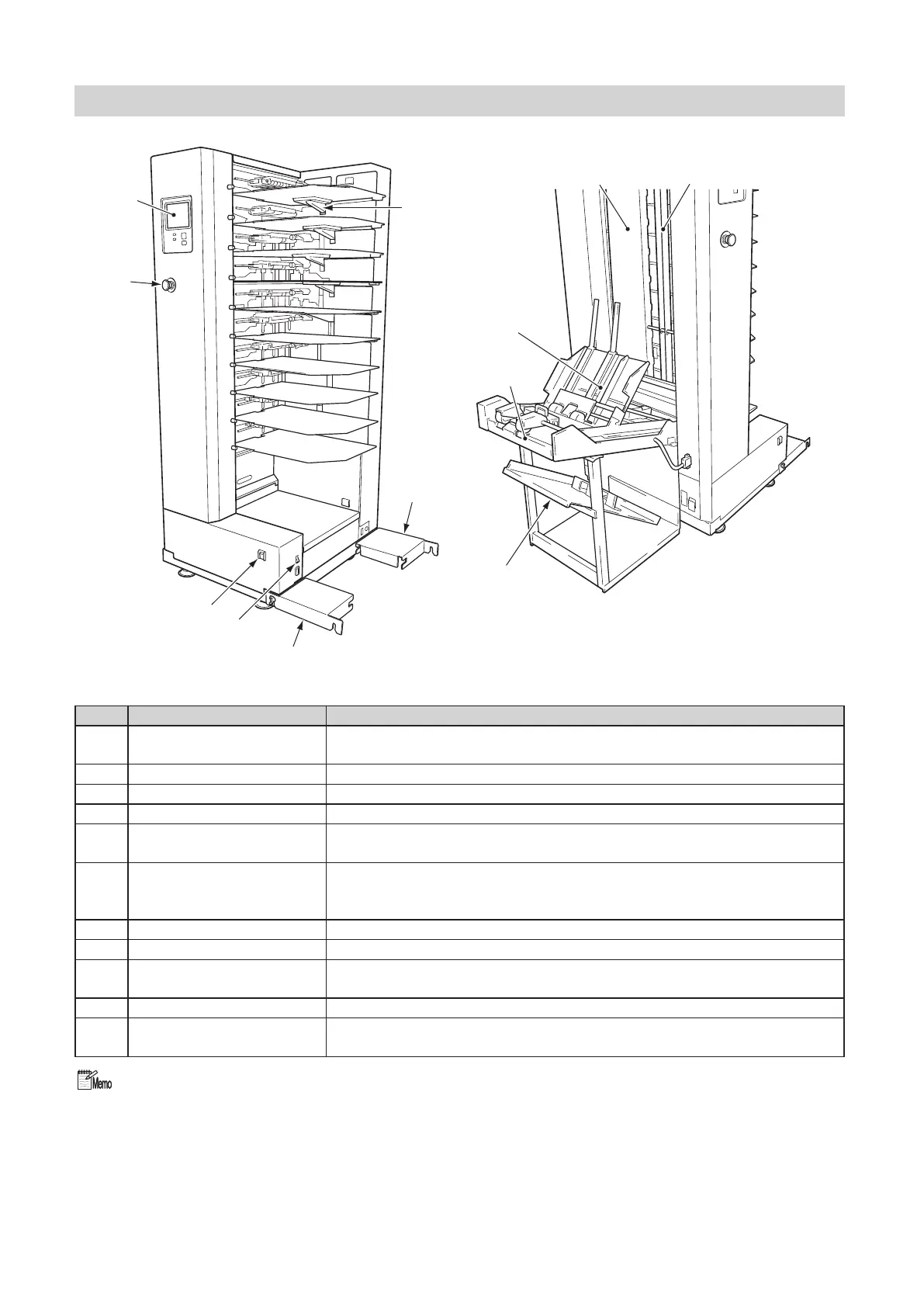

2. Names and Functions of Parts
[10]
[11]
[9]
[7]
[8]
[1]
[2]
[3]
[4]
[5]
[4]
[6]
No. Name Function
[1] Control Panel Consists of the touch panel, keys and lamps.
Used for operating or setting the machine.
[2] Emergency Stop Switch Press this switch to stop operations in emergency.
[3] Paper Feed Bin Base Supports the paper feed table
[4] Connecting Plate Used for connecting and securing two towers together.
[5] Main Power Switch When pressed, the power turns ON and the machine sets into the standby
state.
[6] Power Switch Turns ON/OFF the power of each tower.
When connecting two towers, the power of both towers can be turned ON/
OFF using the switch of tower A.
[7] Reject Tray When feed error occurs, faulty sets are ejected to this tray.
[8] Lifting Unit Transports collated paper to the downstream unit.
[9] Hand Marry Set paper here when feeding paper manually.
Enables manual feed of sets consisting of up to 10 sheets of paper at a time.
[10] Vertical Conveyance Board Conveys the fed paper.
[11] Sub Guide Presses the edge of the paper being conveyed to prevent the paper from ris-
ing.
[7] to [9] are collectively called LUL-HM. These are optional products.
To Next Page
