Chapter 2 Basic Operation
7) Remove the paper receiving stopper 2.
It need not be removed in operations, but
removal is recommended.
8) Press the key or load the paper on the
ejection stacker.
When performing preset, load paper on the
paper feed bin.
"2-6. Loading the Paper"

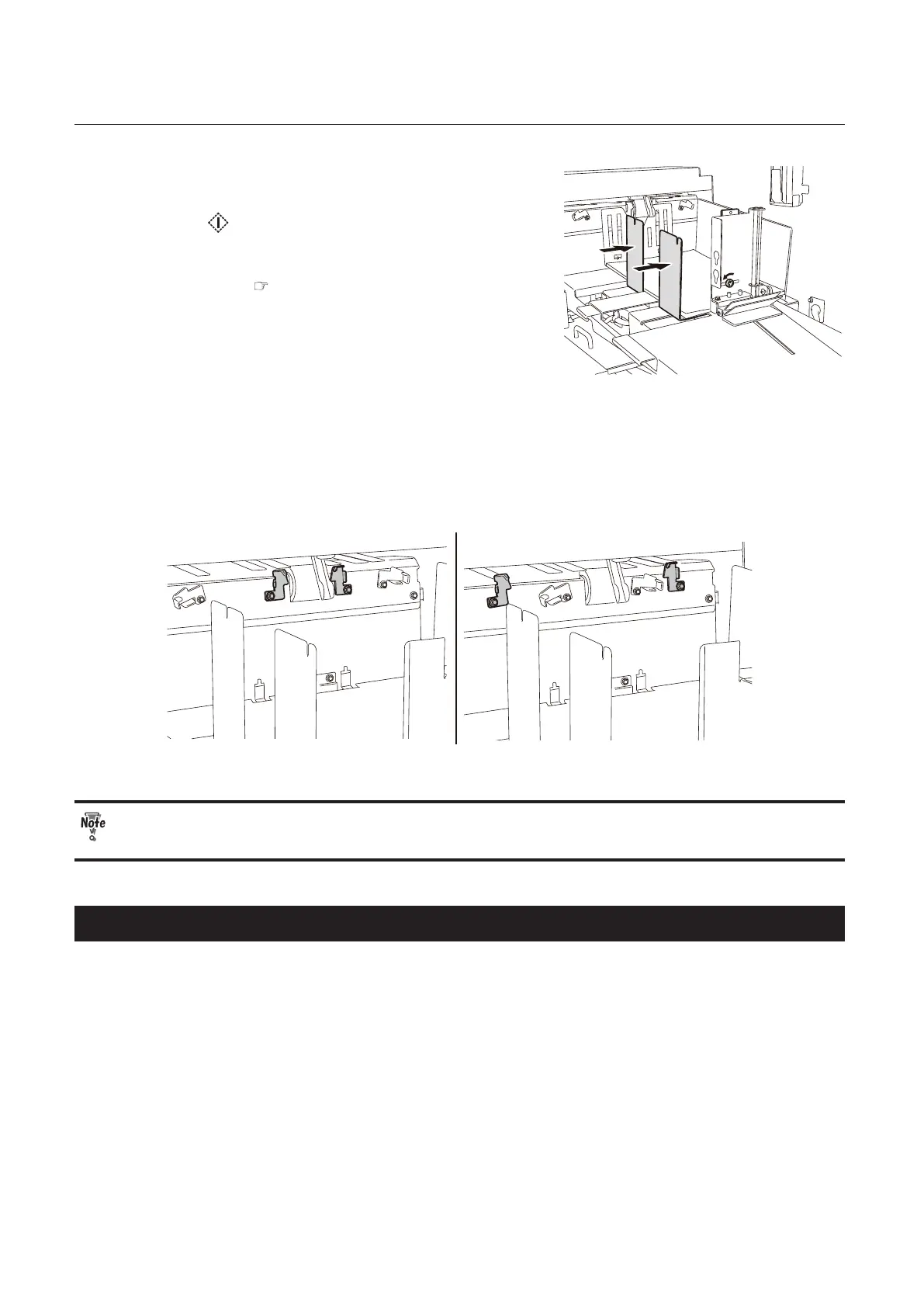

9) Adjust the side guide F to the paper size.
10) Adjust paper receiving stopper 1 to the paper size.
11) Remove the back joggers and set the auxiliary jump brackets according to the paper.
Standard position: two auxiliary jump brackets at center
When using more than ten sheets of coated paper (84.9 g/m2) larger than A3/LD size, turn down
the two auxiliary jump brackets at the center and stand the ones outside upright.
Two points at center Two points at outside
12) Set the back joggers.
After setting the auxiliary jump table, be sure to set the back jogger.
2-6. Loading the Paper
2-6-1. Before Loading Paper
• Separate the paper thoroughly.
• Otherwise, double-feed may occur.
Make sure that the printing ink on the paper is completely dry. Otherwise, ink smearing or double-feed
may occur.
• When collating single-folded or cross-folded paper, thoroughly atten each sheet.
Otherwise, paper jam may occur.
• When paper is thicker than 157 g/m
2
, only one sheet can be included in a set.
• Load paper thicker than 157 g/m
2
in the following bin.
Left side ejection: the topmost bin (bin 1)
Right side ejection: the bottommost bin (bin 10)
