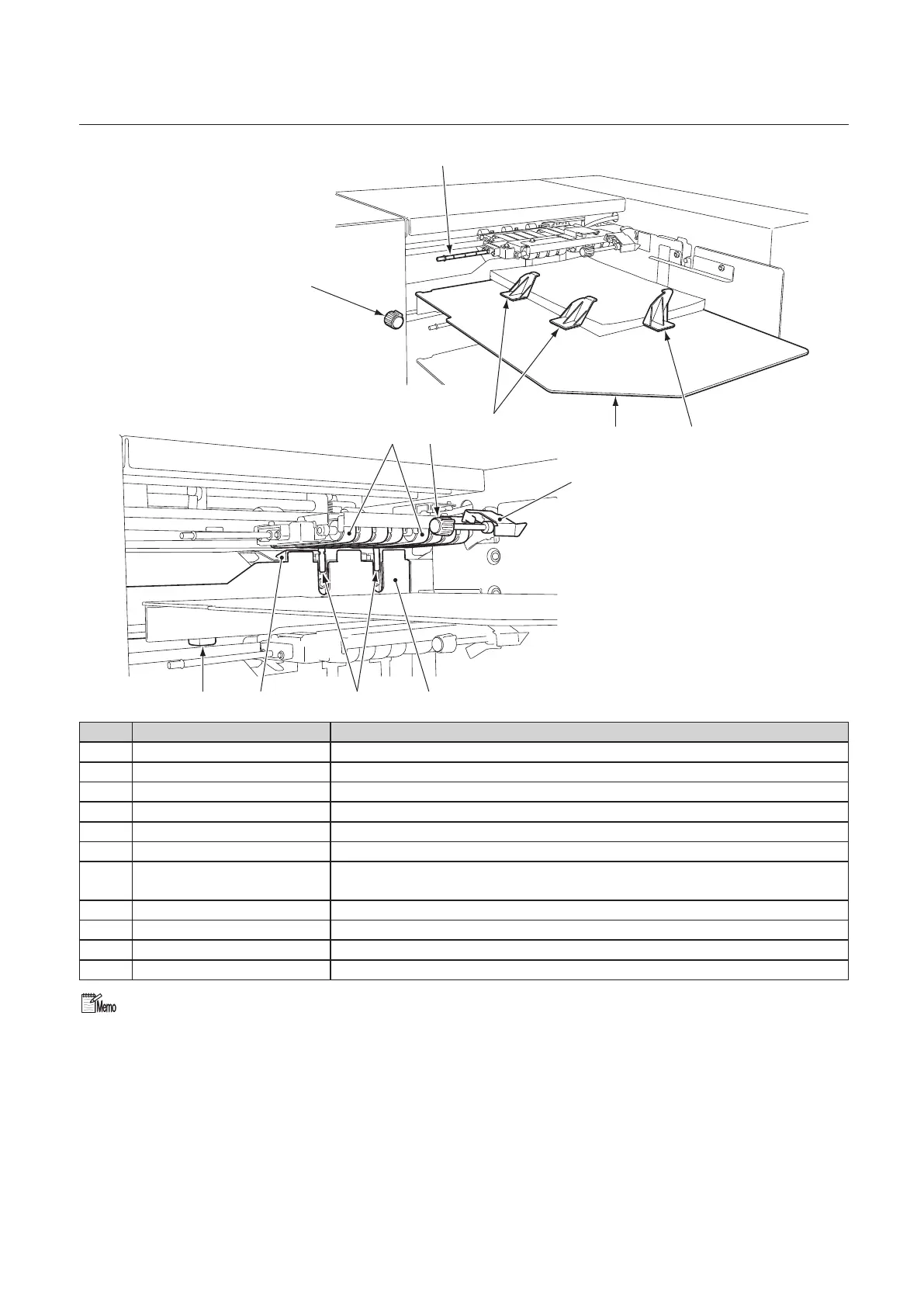

1-3
Chapter 1 Prior to Use
[1]
[9]
[3] [2]
[2]
[4] [8][10][11]
[5] [7]
[6]
No. Name Function
[1] Separating Air Adjustment Adjusts the separating air by changing the position of the shutter.
[2] Paper Guide Presses the edge of the paper to hold the paper in place.
[3] Paper Feed Table Used for loading paper to be collated.
[4] Separating Air Duct Blows out the air for separating paper loaded to the paper feed bin.
[5] Suction Belt Sucks and conveys the paper.
[6] Stack Height Sensor Determines the height of the paper oated by the separating air.
[7] Stack Height Sensor Adjust-
ment
Adjusts the position of the stack height sensor.
[8] Shutter Adjusts the amount of separating air blown out.
[9] Suction Box Shutter Bar Adjusts the range of suction.
[10] Separator Prevents double-feeding of the paper.
[11] Separator Adjusting Knob For adjusting the position of the separator.
In this manual, the function required for feeding paper is generally called paper feed bin.
To Next Page
