Chapter 1 Prior to Use
[3]
[4]
[5]
[6]
[7]
[9]
[10]
[10]
[10]
[10]
[8]
[2]
[1]
[9]

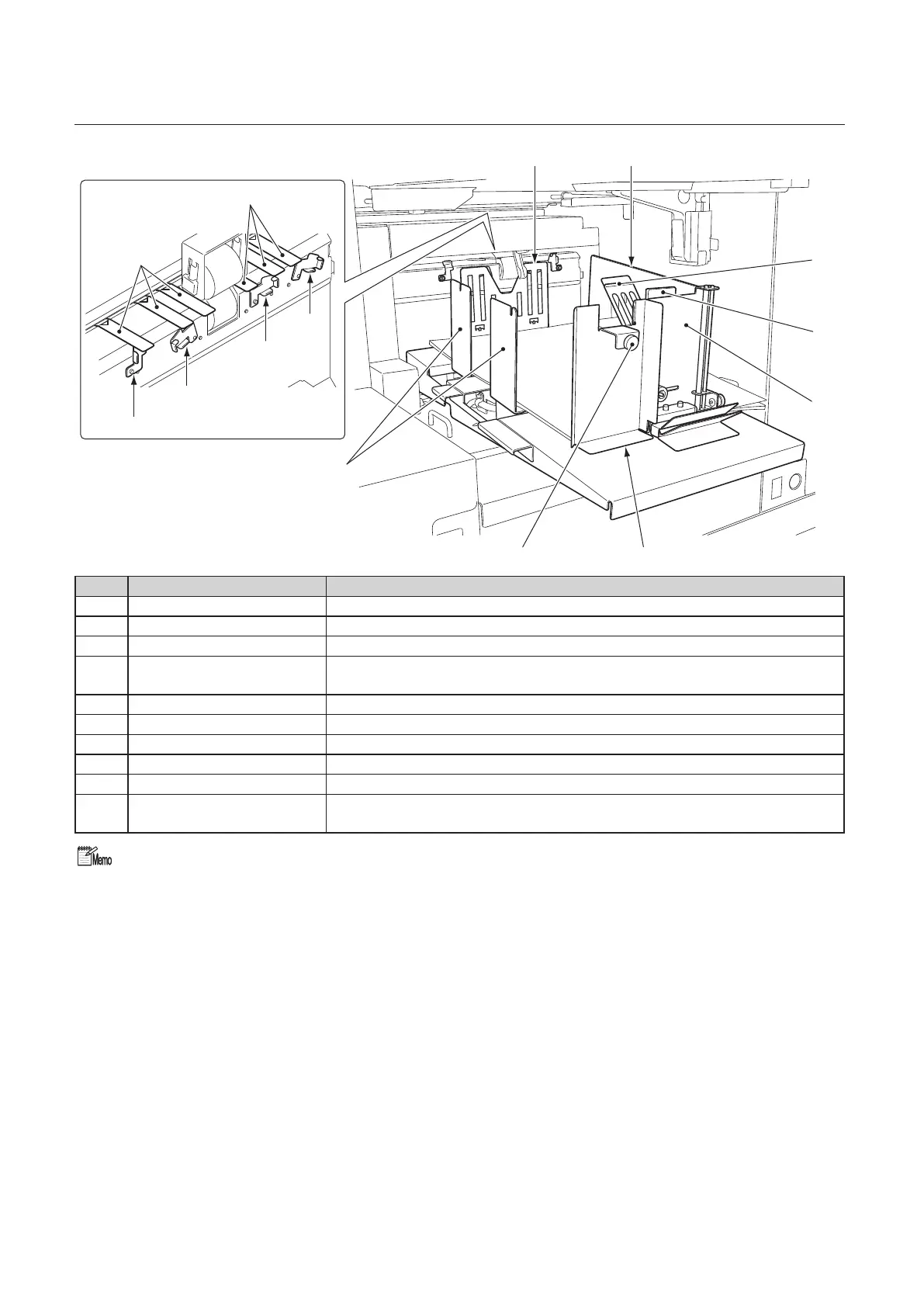

No. Name Function
[1] Paper Receiving Stopper3 Prevents collated paper from falling apart during the sorting process.
[2] Paper Receiving Stopper2 Receives the leading edge of ejected collated paper.
[3] Paper Receiving Stopper1 Holds paper receiving stoppers 2 and 3.
[4] Auxiliary Stopper Depending on the paper size used, attach one of these to paper receiving
stopper 1 or side guide F to help align paper.
[5] Knob Fix the auxiliary stopper to side guide F.
[6] Side Guide F Aligns the sides of collated paper.
[7] Back Jogger Aligns the trailing edge of ejected collated paper.
[8] Side Gide B Use this as a guide for aligning ejected collated paper.
[9] Jump Table Prevents ejected collated paper from falling apart.
[10] Auxiliary Jump Table Supports the jump table from the bottom. Settings dier according to the
type of paper and number of sheets used.
[1] to [8] are collectively called the ejection stacker. These are optional.
