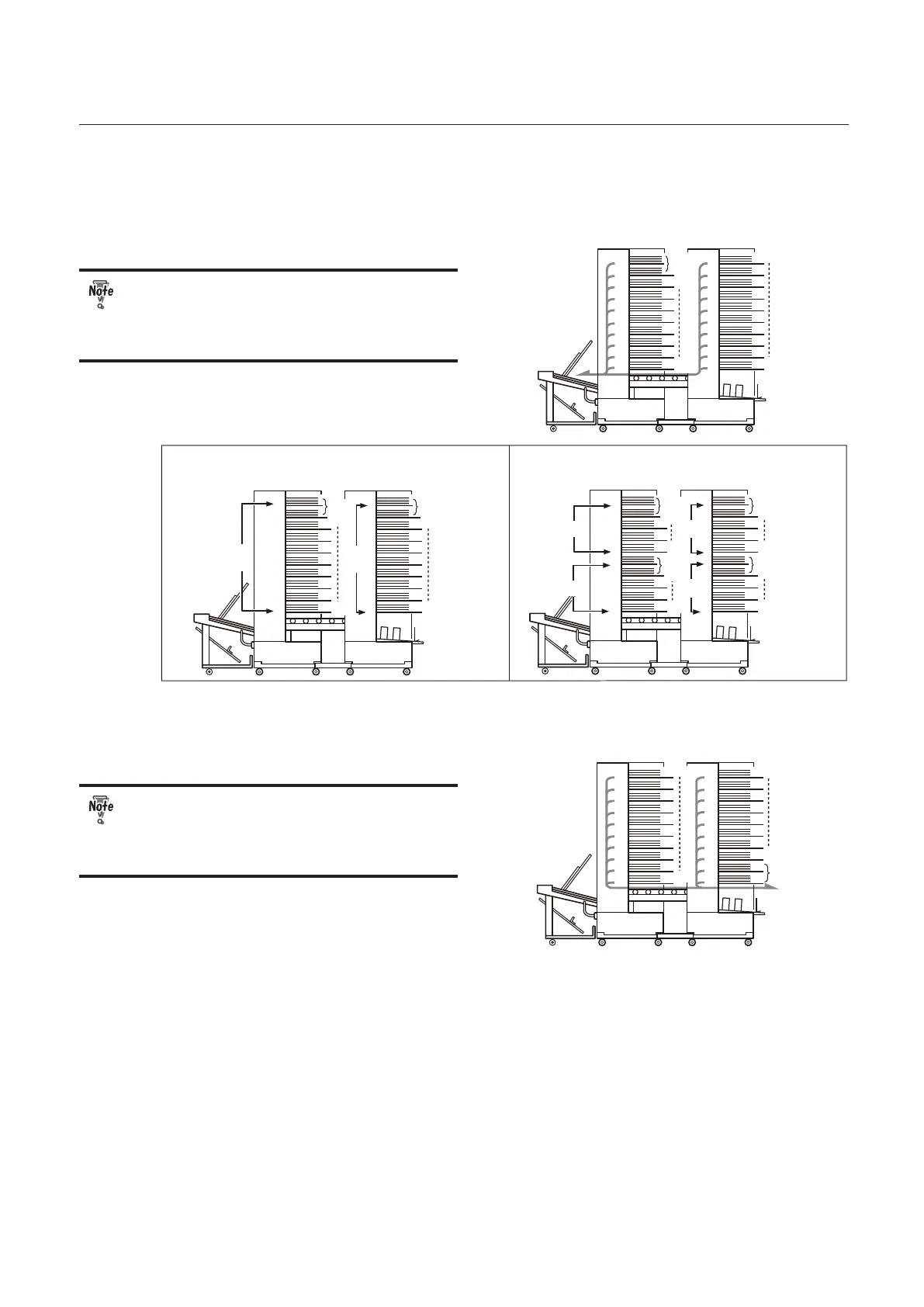

2-6-4. Order of Loading (When alternate mode is selected)
• Left side ejection
P.10
P.19
A B
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
(P.1)
Thick
paper
P.2
P.9
Load the thick paper on bin 1 and 2.
When using two collators, load the thick paper
on bin 1 and 2 of tower A.
Load paper thicker than 157 g/m
2
on the
topmost bin (bin1). If the paper is loaded
on the other bin, it may not be able to be
fed.
When using the block mode, load the paper as follows:
• Load thick paper on the top two bins of each block.
A B
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Block Mode 1/4
Block Mode 1/2
A B
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
No.1
No.2
No.1
No.2
No.3
No.4
P.9
P.4
(P.1)
Thick
paper
P.9
P.4
P.4
P.4
(P.1)
Thick
paper
(P.1)
Thick
paper
(P.1)
Thick
paper
(P.1)
Thick
paper
(P.1)
Thick
paper
• Right side ejection
P.9
A B
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
(P.1)
Thick
paper
P.2
P.19
P.10
Load the thick paper on bins 9 and 10.
When using two collators, load the thick paper
on bins 9 and 10 of tower B.
Load paper thicker than 157 g/m
2
on the
bottommost bin (bin10). If the paper is
loaded on the other bin, it may not be able
to be fed.
