Operation
26
Operating Instructions 171/173 - 02.0 - 09/2019

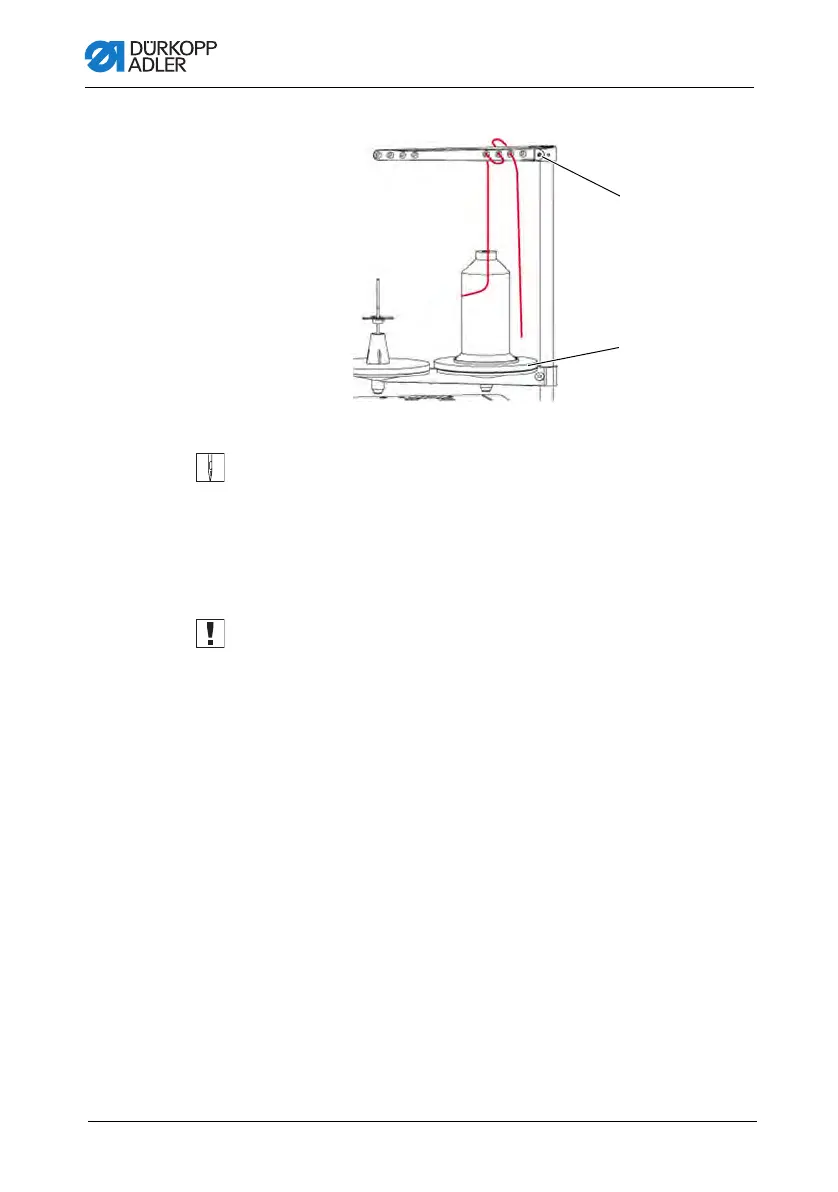

Fig. 8: Threading the looper thread
(
1)
To thread the looper thread:
1.
Switch off the machine.
2.
Fit the thread reel on th
e ri
ght plate of the reel stan
d
(2).
3.
Fit the thread in a
wavelike manner through the holes of the
thread guide
(1).
Important
The thread guide
(1) must be par
allel to the
reel stan
d
(2).
(1)
- Thre
ad guide
(2)
- Reel
stand
①
②
27
29
Table of Contents
Default Chapter
3
Table of Contents
3
1 About These Instructions
7
For Whom Are These Instructions Intended
7
Representation Conventions - Symbols and Characters
8
Other Documents
9
Liability
10
2 Safety
11
Basic Safety Instructions
11
Signal Words and Symbols Used in Warnings
12
3 Machine Description
17
Components of the Machine
17
Proper Use
18
Declaration of Conformity
19
4 Operation
21
Preparing the Machine for Operation
21
Switching on and off the Machine
22
Inserting or Replacing the Needle
23
Threading the Needle Thread
24
Threading the Looper Thread
27
Threading Twin-Needle Machines
31
Thread Tension
32
Setting the Needle Thread Tension
33
Setting the Looper Thread Tension
34
Setting the Thread Quantity
34
Setting the Needle Thread Regulator
34
Setting the Looper Thread Take-Up
36
Stitch Length
37
Setting the Stitch Length
37
Setting the Stitch Condensing
39
Sewing Feet
41
Setting the Sewing Foot Pressure
41
Lifting the Sewing Foot
42
Locking the Sewing Foot at the Top Dead Centre
43
Roller Top Feed (Optional)
44
Setting the Roller Top Feed Length
45
Setting the Pressure of the Carrier Roller
46
Lifting the Carrier Roller
48
Edge Pinker (Optional)
49
Adjusting the Edge Guide
50
Adjusting the Height of the Chain Cutter Guard
51
Deactivating the Edge Pinker
52
Disassembling the Edge Pinker
53
Buttons on the Machine Arm
54
Sewing
55
5 Programming
57
Edge Pinker
62
Setting the Parameters
62
Activating the Chain Cutter
62
6 Maintenance
63
Cleaning
64
Lubricating
65
Lubricating the Machine Head
66
Lubricating the Looper
67
Servicing the Pneumatic System
68
Setting the Operating Pressure
68
Draining the Water-Oil Mixture
69
Cleaning the Filter Element
70
Parts List
71
7 Setup
73
Checking the Scope of Delivery
73
Removing the Transport Locks
73
Assembling the Stand
74
Tabletop
75
Completing the Tabletop
75
Assembling the Tabletop to the Stand
76
Assembling the Reel Stand
77
Setting the Working Height
78
Assembling the Pedal and the Setpoint Device
80
Inserting the Machine Head
81
Assembling the Control
82
Assembling the Control Panel
83
Assembling the Knee Lever
85
Assembling the Oil Extraction Line
86
Electrical Connection
87
Connecting the Control
87
Creating the Equipotential Bonding
88
Pneumatic Connection
89
Assembling the Compressed Air Maintenance Unit
90
Setting the Operating Pressure
91
Performing a Test Run
92
8 Decommissioning
93
9 Disposal
95
10 Troubleshooting
97
Customer Service
97
Errors in Sewing Process
98
11 Technical Data
101
Data and Characteristic Values
102
Requirements for Trouble-Free Operation
103
12 Appendix
105
Wiring Diagram
106
