Operation
Operating Instructions 171/173 - 02.0 - 09/2019 27

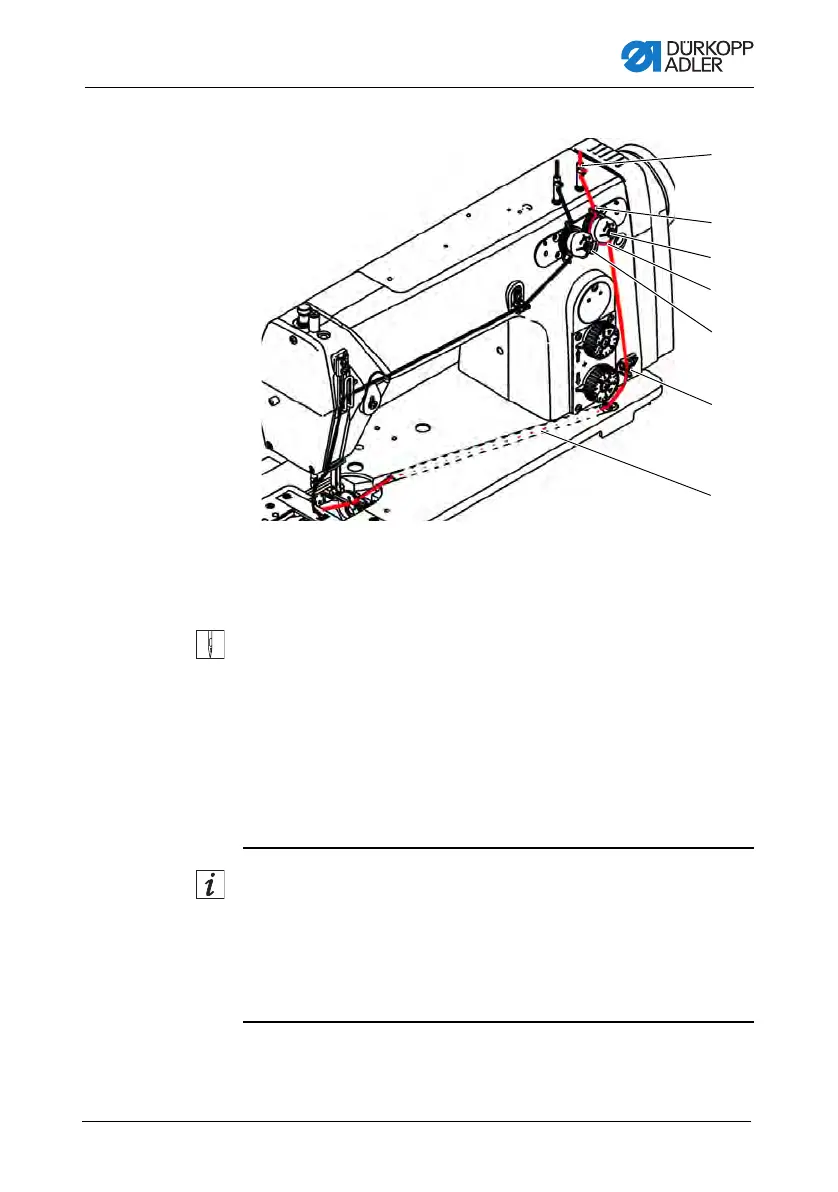

Fig. 9: Threading the looper thread (2)
4. Feed the thread through the thread guide (3) from above
downwards.
5. Guide the thread around the back of the thread guide (3)
and from the rear to the front through the bottom hole.
6. Feed the thread from above downwards through the thread
guide (4) on the looper thread tension (5).
7. Guide the thread counterclockwise around the looper thread
tension (5).
Information
The thread must always be fed around the relevant tensioning
disk such that it covers the greater distance from thread guide (4)
to thread guide (6).
By pressing on the tension opener (7), the tension can be opened
to allow the thread to be fed around.
(3) - Thread guide
(4) - Thread guide
(5) - Looper thread tension
(6) - Thread guide
(7) - Tension opener
(8) - Thread advancing device
(9) - Thread groove
