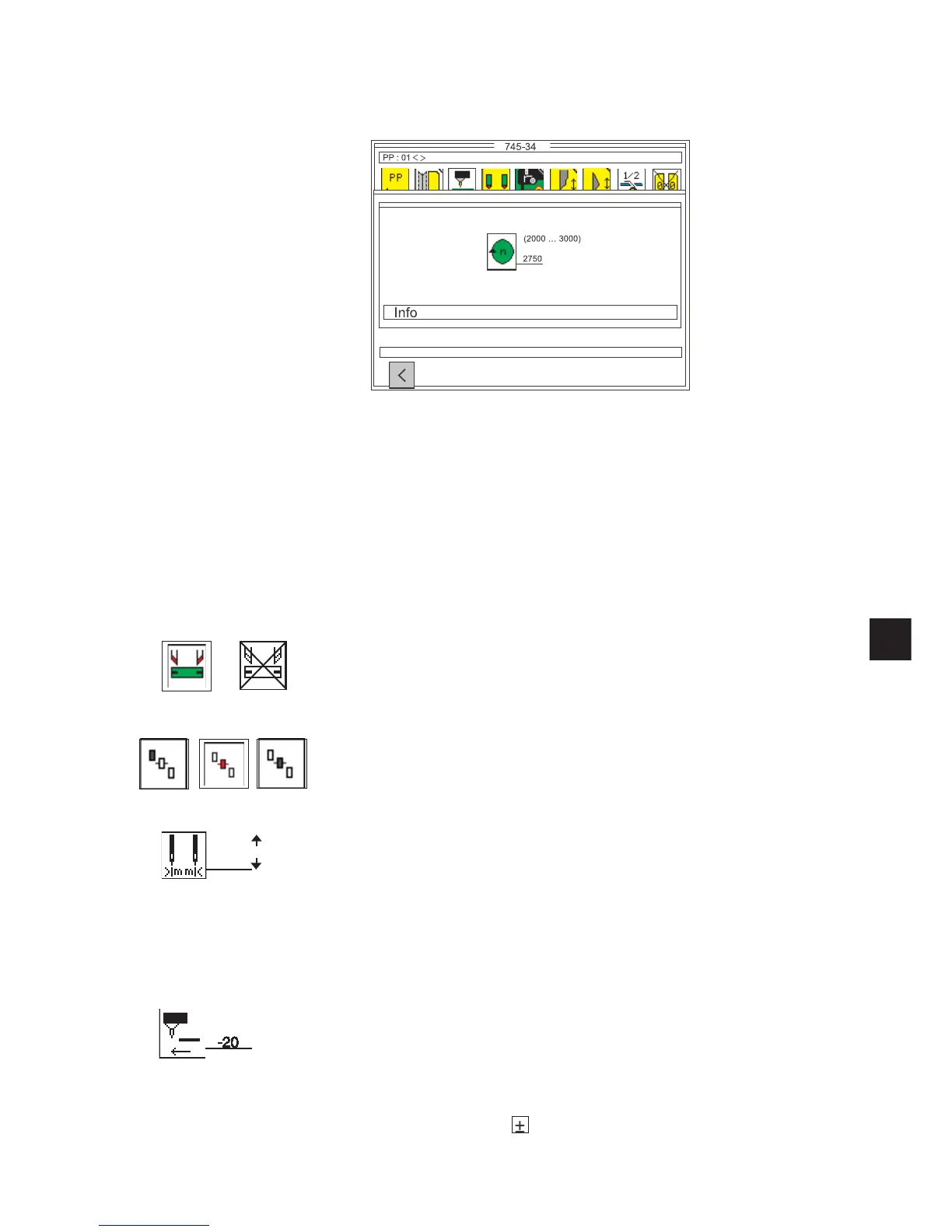

5.2 Changing parameter values
Parameter values are changed in the individual parameter screens.
–
Select the required parameter with the “ï”or“ð”cursorkeys.
A black background appears behind the symbol of the selected
para me ter.
–
Press the OK key.
The settings window appears with the current values or to enable
values to be entered.
–
Change the parameters as described under 1 to 4 below.
–
Press the OK key.
The new parameter settings are saved.
When changing parameter values we must distinguish among four
groups of parameters:
1. Functions that are sw itched on and off
–
Switch the parameter function on and off w ith the “ð”or“ï”cursor
keys.
(on) (off)
2. Parameters w ith various functions
–
Set the required parameter function with the “ð”or“ï”cursor
keys.
3. Parameters w hose values are changed in stages
–
Select the previous or next parameter-value stage with the “ñ”or
“ò”cursorkeys.
Entry:
10, 12, 14, 16, 18, 20, 22, 24, 26, 30
4. Parameters w hose values are entered w ith the decimal keypad
–
Enter the required parameter value on the decimal keypad.
CAUTION:
The value must be within the set limits.
If the value entered is too large or too small, the upper or lower
limit is displayed when the Enter key is pressed.
[-20 ...+20]
–
If a plus or minus sign appears in front of the parameter value, it
can be changed with the “ ” k ey.
4
9
