DURKOPP ADLER 745-34-2 - Checking and Adjusting the Piping Knives; Checking the Piping Knife Motion

7.3.10. Checking and adjusting the piping knives

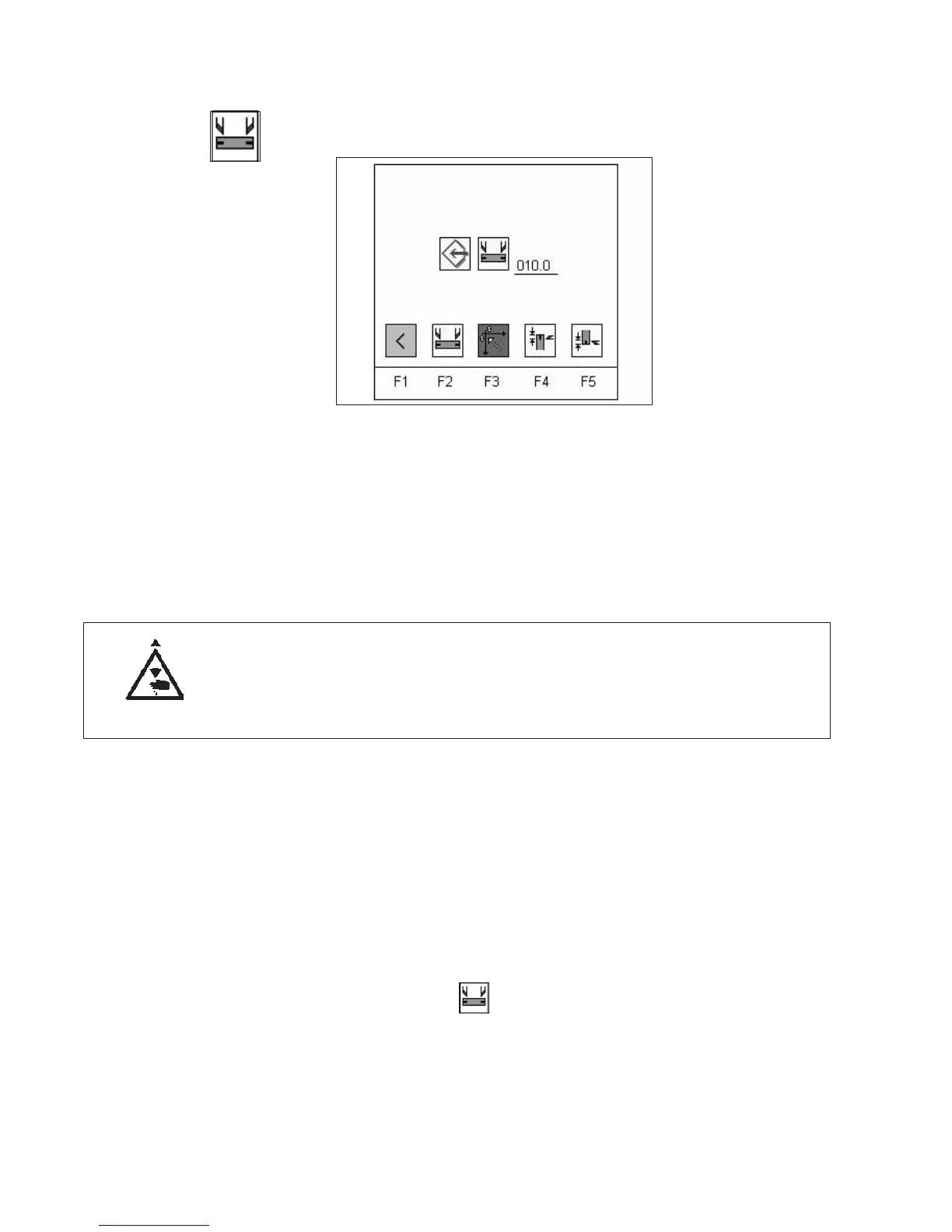

In the test program “Checking and adjusting the piping knives” you can
check the knife and step motor motion and adjust the reference
position of the piping knives.
–
Press key “F3“:
Make reference run.
The reference run has to be made before the further functions are
accessible.
–
Press key “F1“:
Quit the test program for piping knives.
7.3.10.1 Checking the piping knife motion
Caution: Danger of injury !
Danger of cuts !
Do not reach in the piping knife zone.
Exercise utmost caution when making tests with the machine running.
Check the knife motion
–
Press key “F2“:
Switch both piping knives on and off again.
–
Press key “F4“:
Switch the piping knife for the seam beginning on and off again.
–
Press key “F5“:
Switch the piping knife for the seam end on and off again
Check the step motor
–
Press key “F3“:
The reference run is carried out.
Select the symbol with the cursor keys “ï” and “ð”
Enter the path (max. 120 mm) via the numeric keyboard and confirm
with the “OK”key.
The cutting unit moves to the entered position.
