Caution: danger of injury
During template scanning the feed clamps move back and
forth several times.
Do not reach into the path of the feed clamps.
Folding station must be swung out
–
Press function key “F5”.
The template is scanned.

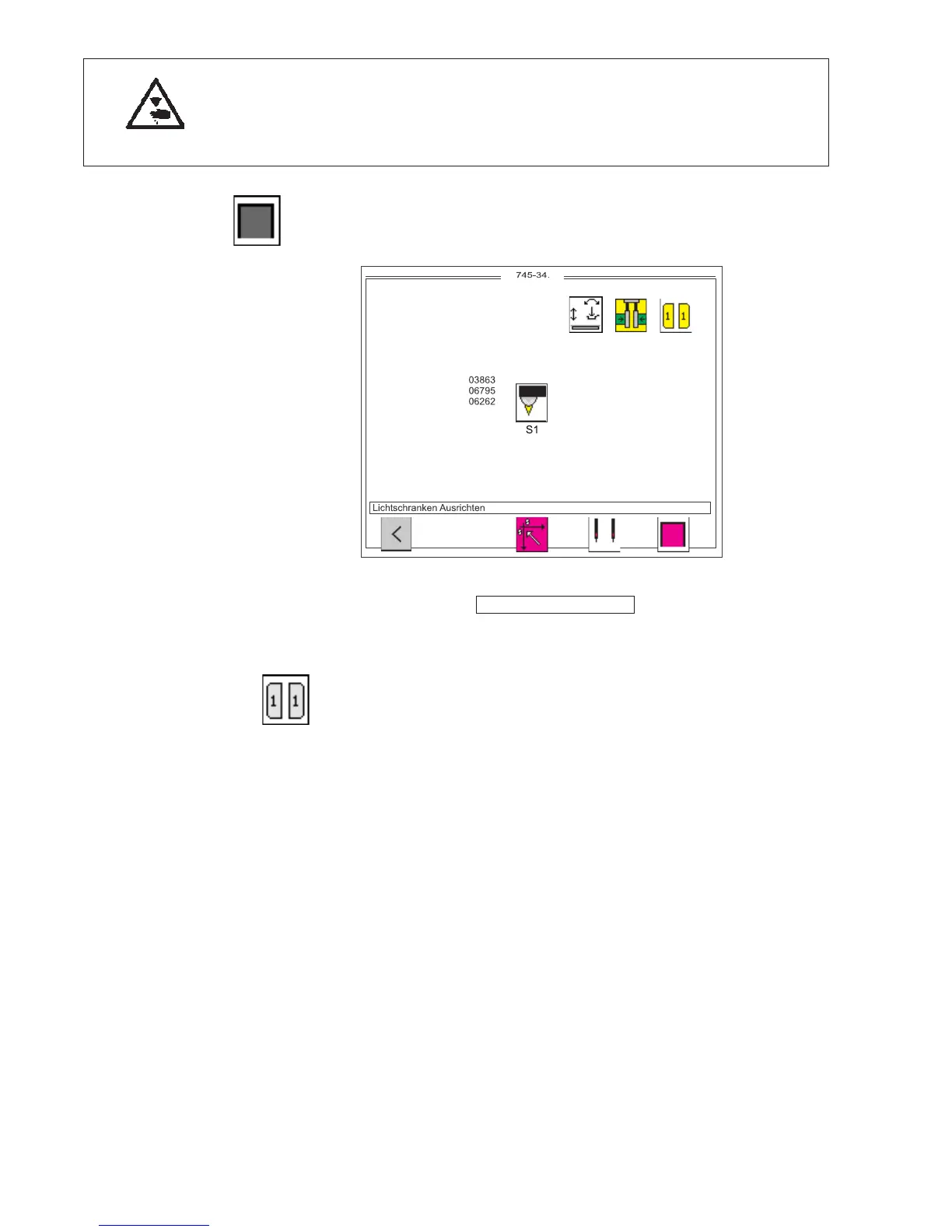

The scanned parameters appear in the display. They are
automatically passed to the controller.
789
Info line:
Aligning light barriers
–
Press “9”.
The flap clamp opens.
–
Remove the template.
–
Press function key “F1” to terminate the test program.
–
Push feed clamps backwards by hand.
–
Swivel folding station back.
–
Press the “RST” key or switch the machine off and on again.
7.3.4.5 Error Display
Error 1:
–
Incorrect alignment of the light barrier.
–
Incorrect sensitivity setting.
–
Template inserted in a wrong way.
Error 2:
–
Wrong / Damaged template for “straight pockets”.
Error 3:
–
Wrong / Damaged template for “slanting pockets”.
58
