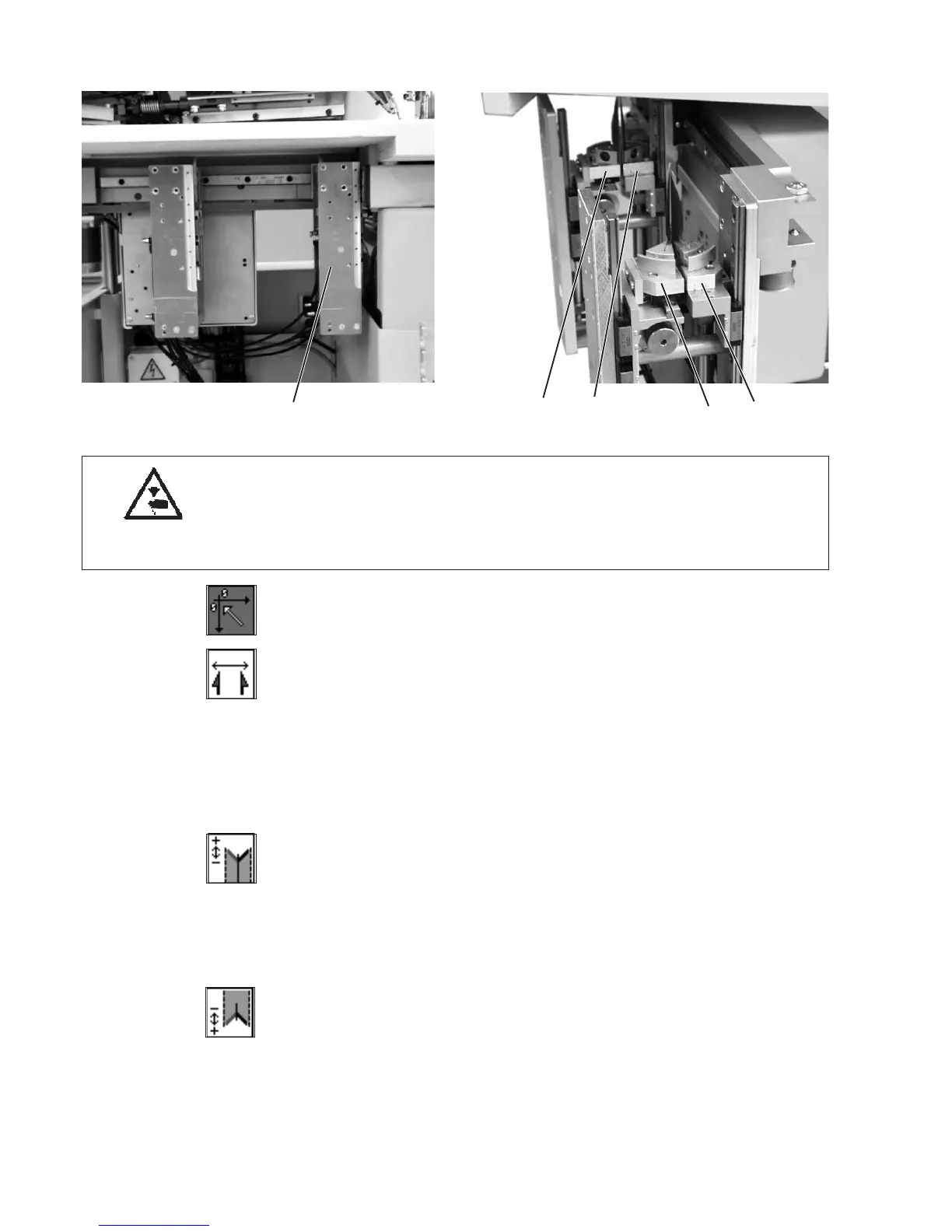

7.3.5.1 Checking the corner-blade station

Caution: danger of injury

Serious cuts may result from reaching into the vicinity of the corner

blades.

The utmost care must be taken when carrying out tests on the machine

when it is running.

–

Press function key “F3”.

The corner-blade frames carry out a reference run.

–

Select the “corner-blade distance” symbol with cursor keys “ï”or

“ð”.

–

Enter a corner-blade distance and press the “OK” key to move the

corner blade.

Example:

corner-blade distance entry = 100 mm.

–

Check the distance between the corner-blade frames 1 and 6.

7.3.5.2 Checking the front left corner blade (automatic corner-blade station only)

–

Select the “seam-start corner-blade correction” symbol with

cursor keys “ï”or“ð”.

–

Enter a correction value (+ or -) and press the “OK”keytomove

the corner blades.

–

Check the distance between corner blades 2 and 3.

7.3.5.3 Checking the rear left corner blade (automatic corner-blade station only)

–

Select the “seam-end corner-blade correction” symbol with

cursor keys “ï”or“ð”.

–

Enter a correction value (+ or -) and press the “OK”keytomove

the corner blades.

–

Check the distance between corner blades 4 and 5.

54 32
