DURKOPP ADLER DAC BASIC - V 12-2010 User Manual

Programming at user level
15
© 2010 Dürkopp Adler AG
5 Programming at user level

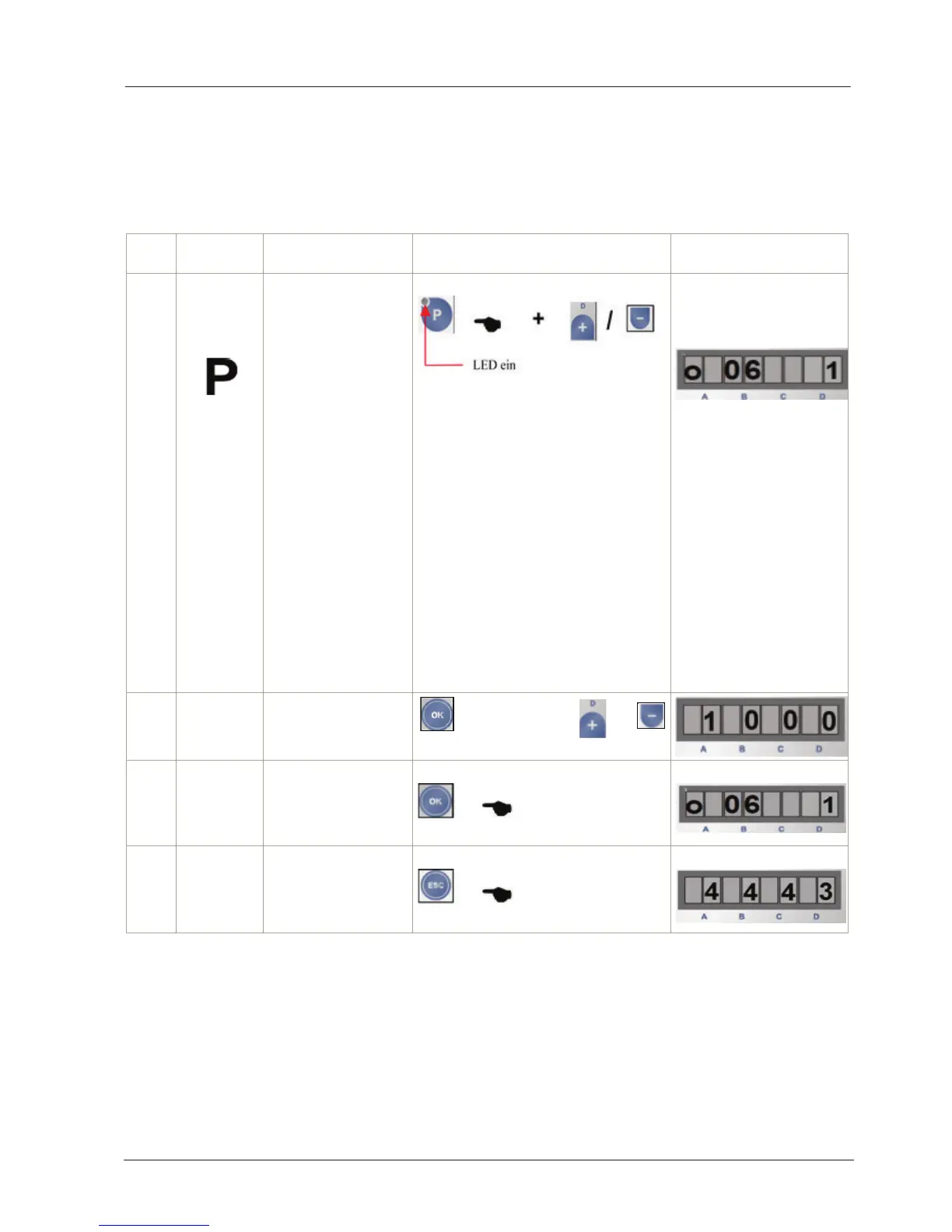

5.1 Set bobbin thread counter and bobbin thread monitor function
Butto
n
Position
Setting
Settings
Display
23
Open selection
00 = Bobbin thread counter on/off
01 = R
eset value of the bobbin thread
counter A
.
02 = Reset value of the bobbin thread
counter B
03 = R
eset value of the bobbin thread
counter C
..
04 = Factor of the bobbin thread
counter A, B, and C
05 = Number of stitches for bobbin
thread monitor
06 = Stopping motor if the counter has
reached the value 0.
07 = Sewing foot down after thread
trimming.
08 = Counter value display
.
19
select Reset value
D
+
/
19
Confirm selection
22
Exit programming
level
If button 18 is pressed to reset the reel counter, the following formula applies to the counter status:
Counter status = reset value x factor [stitches]
Counter status = Number of stitches for bobbin thread monitor [stitches] (If bobbin thread monitor is activ. Only
DAC
classic
)

DURKOPP ADLER DAC BASIC - V 12-2010 Specifications

General

Model	DAC BASIC - V 12-2010
Category	Sewing Machine
Type	Industrial Sewing Machine
Frequency	50/60 Hz
Stitch Type	Lockstitch
Sewing Speed	5, 000 stitches/min
Motor Power	0.55 kW
Voltage	230 V
