Setting the basic functions
DAC basic/classic
54
The "thread clamp" signal is triggered depending on parameter t 01 20.
The following settings are possible with parameter t 01 00 :
When the thread clamp is activated, the speed is limited to 250 min
-1
until the thread clamp switches off. The
angle setting always relates to the set reference position.

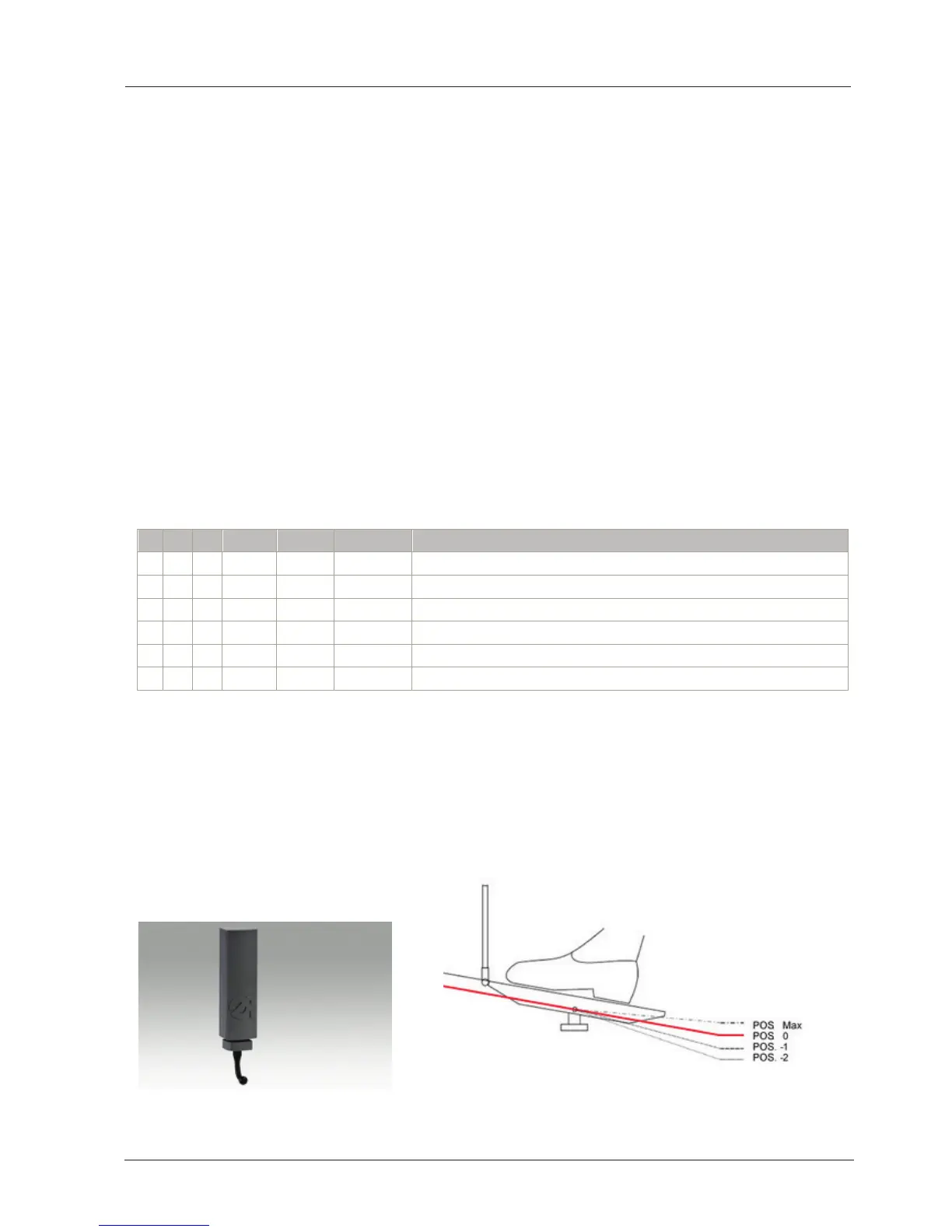

12.10 Reference value transmitter
•
The reference value transmitter (SWG) is fastened under the machine table with an assembly bracket.
•
The reference value transmitter's pull and push rod are connected to the machine pedal by a connecting rod.
•
Screw the assembly bracket for the reference value transmitter under the machine table so that the SWG
push and pull rod and the pedal connecting rod form as straight a line as possible in order to ensure the best
transfer of power between the SWG and the pedal.
•
The connecting rod and the pedal should form an angle as close to 90° as possible.
•
You must ensure that the pedal moves freely.
L
C
P
Min
Max
Unit
Description
t
08
20
-
-
Calibrating pedal
t
08
21
12
64
Stages
Number of pedal speed stages
t
08
21
0
0
-
Calibrating pedal
t
08
22
0
4
-
Speed curve
t
08
23
10
255
ms
Debouncing position 1
t
08
24
25
255
ms
Debouncing position 2
The reference value transmitter's stroke in the forward direction (speed display) can be divided into variously
precise speeds with parameter t 08 21.
The reference value transmitter can be re-calibrated with parameter t 08 20 after it has been replaced or if it has
not been working correctly.
Select the parameter and confirm with OK.
