7.2 Electrical connection (mains connection)
Working on the electrical equipment (connection, maintenance, repairs) must only be done by or under the
supervision of a qualified electrician.
The DAC
basic
or DAC
classic
control unit is intended to be connected to an earthed alternating current network
with a rated voltage in the range of 180V - 260 V 50/60 Hz .
Before connecting the mains lead ensure that the rated voltage is within the rated voltage range specified
on the DAC
basic
or DAC
classic
rating plate.
It must only be connected using a multi-pin plug with a protective contact.
A fixed connection is not permitted. The following potentials must be connected:
Phase (L1 or L2 or L3)
Neutral cable (N)
Protective earth (PE)
The DAC
basic
or DAC
classic

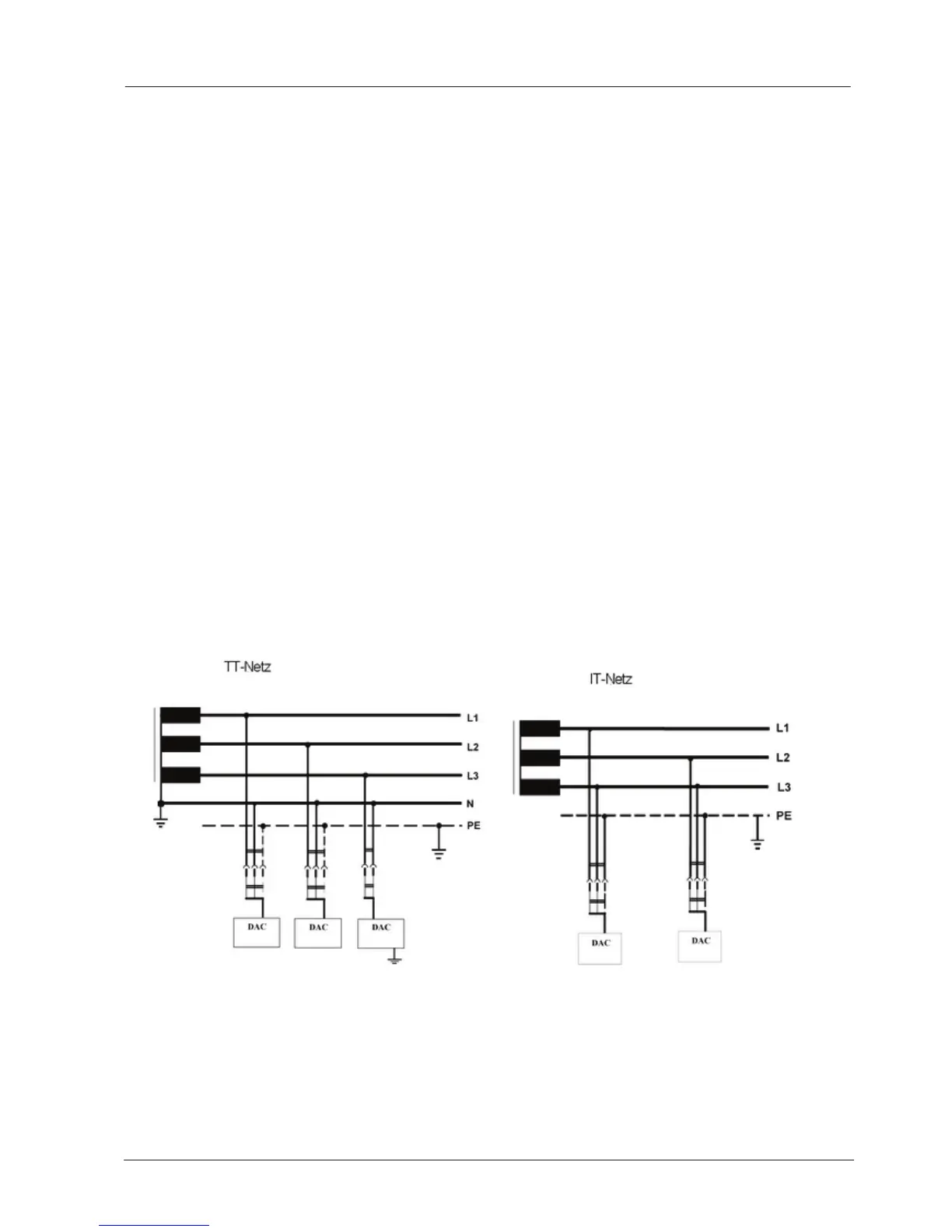

control unit is suitable for connection to the following mains supplies:
•
TN mains supply with a directly earthed point, with a protective earth (PE) that is connected to this point
•
TT mains supply with a directly earthed point where the protective earth (PE) is not connected to this mains
earthing point
.
•
IT mains supply that is not directly earthed.
