Setting the basic functions
DAC basic/classic
56
12.11.1 Setting the reference positions
The angle settings required on the machine, e.g. "low needle setting" or "thread lever up" are saved in the control
unit. A reference position is required to establish a relationship between the position sensor information and the
actual mechanical position. The reference position may be different depending on the parameter settings, normally
"Point at which the needle penetrates the stitch plate(EP)"
The reference position must be set:
•
on first commissioning
•
after replacing the control unit
•
after replacing the motor or the incremental sensor.

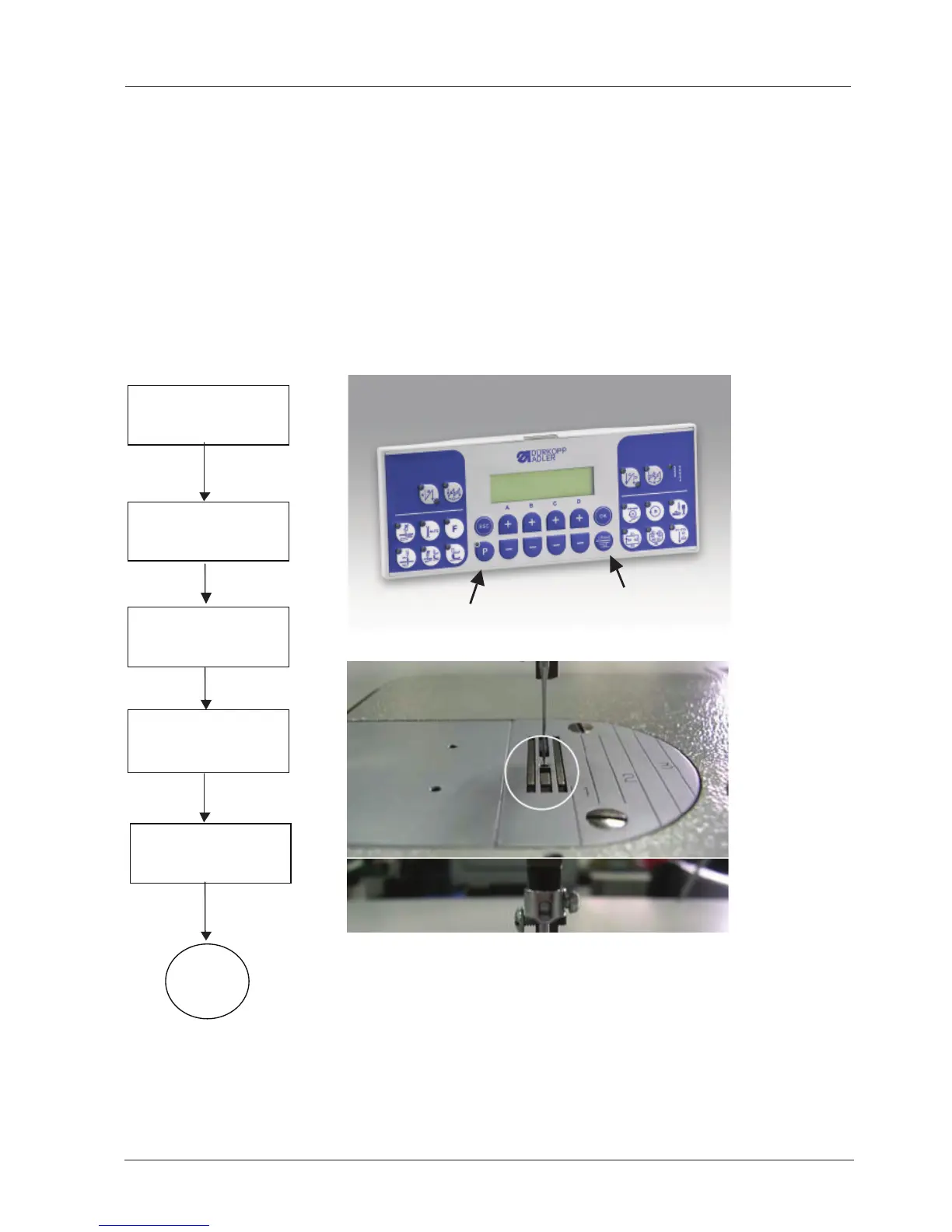

Installation
Switch on, push
P
- and
Reset- button together
Parameter t 08 10
Push foot pedal forward
until
Ref.POS
appears in the
Display
Adjust Ref.-
Position
with handwheel
press
OK
button
