3.3.2 Removing and placing the arm cover

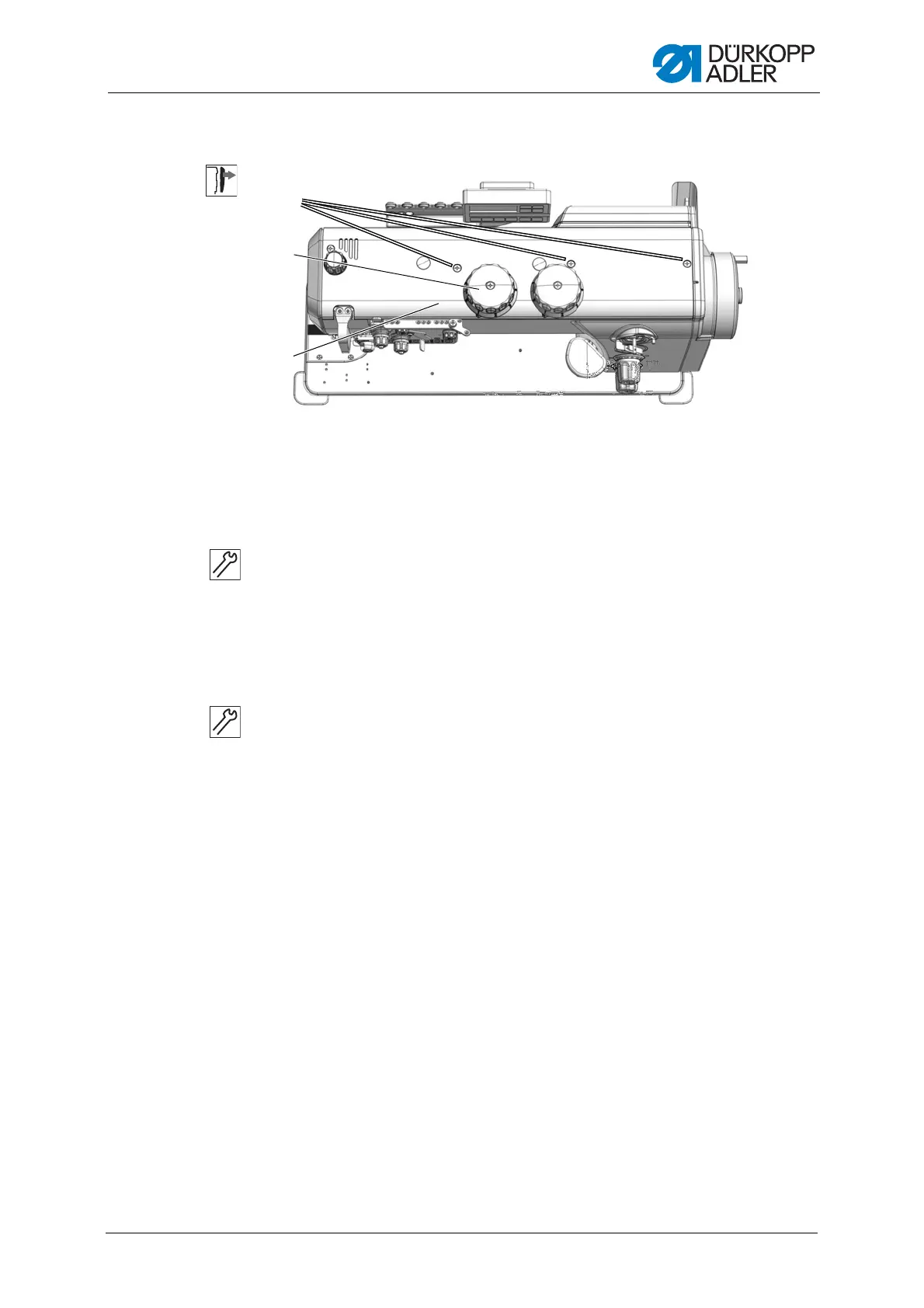

Fig. 2: Removing and placing the arm cover
Removing the arm cover
To remove the arm cover:
1. Position the left adjusting wheel for the sewing foot stroke (2) to 2.
2. Loosen the screws (1).
3. Hold the arm cover (3) at the adjusting wheels and remove it.
Placing the arm cover
To place the arm cover:
1. Position the left adjusting wheel for the sewing foot stroke (2) to 2.
2. Place the arm cover (3).
3. Tighten the screws (1).
(1) - Screws
(2) - Left adjusting wheel for sewing
foot stroke
(3) - Arm cover
