Thread cutter
Service Instructions 667 - 00.0 - 04/2016 67

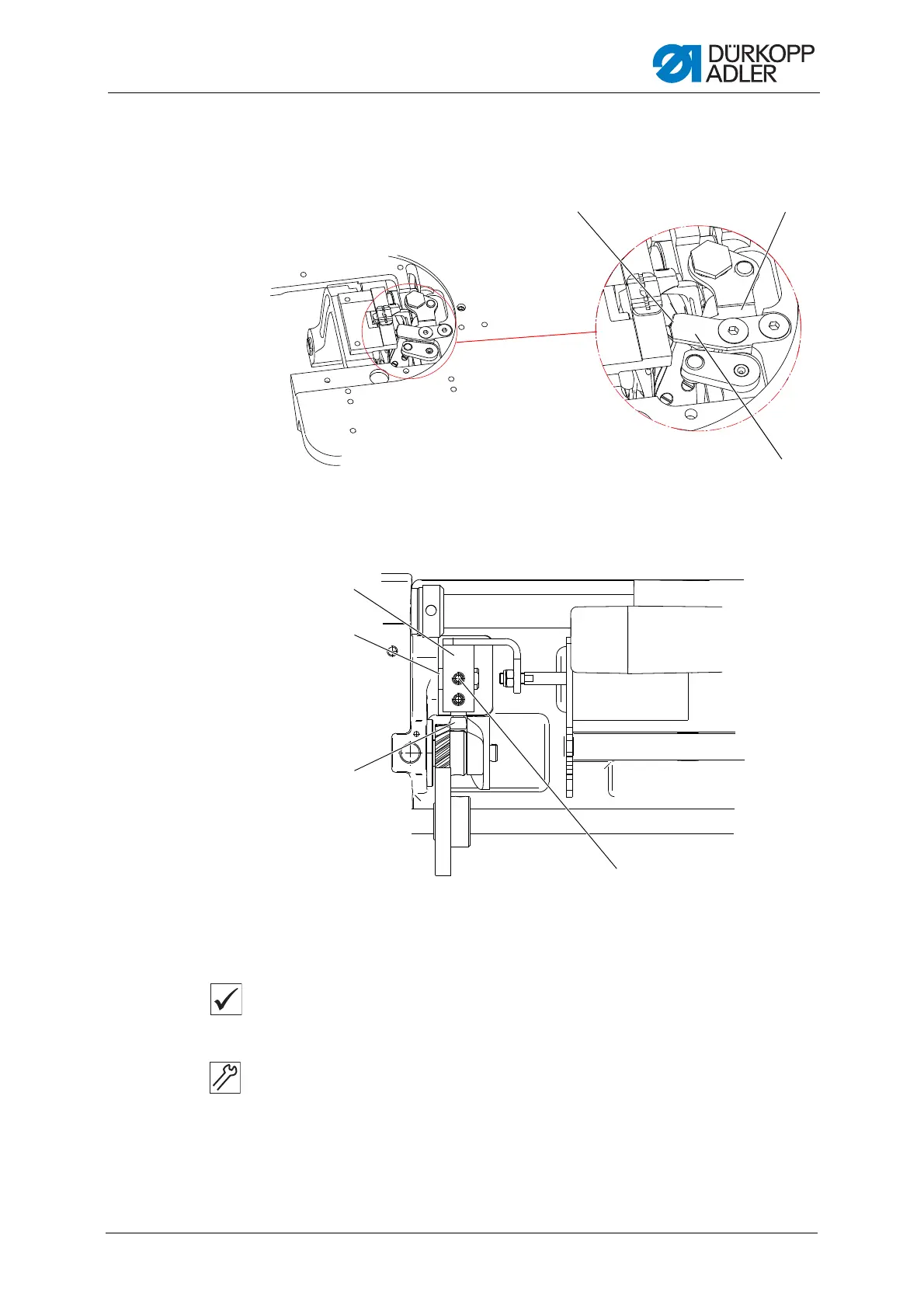

14.3 Setting the position of the thread-pulling knife
Fig. 49: Setting the position of the thread-pulling knife (1)
Fig. 50: Setting the position of the thread-pulling knife (2)
Proper setting
When the knife is at rest, the tip (1) of the thread-pulling knife (3) must be
positioned flush below the cutting edge of the stationary knife (2).
To set the position of the thread-pulling knife:
1. Turn the handwheel until the thread lever is positioned slightly beyond
its highest point.
2. Loosen the screw (7).
3. Set the thread-pulling knife (3).
(1) - Tip
(2) - Stationary knife
(3) - Thread-pulling knife
(4) - Block
(5) - Pull rod
(6) - Roller
(7) - Screw
