Setting the feed dog
40 Service Instructions 667 - 00.0 - 04/2016
3. Loosen the threaded pins (2).
4. Turn the stroke eccentric (1) such that the upper edge of the feed dog
protrudes 0.5 mm above the throat plate.
5. Move the stroke eccentric (1) to the left such that the feed dog has no
play in relation to the lever (3).
6. Tighten the threaded pins (2).
8.2.3 Setting the stroke movement
Order
First, check the following setting:
• Feed dog height ( p. 39)
Proper setting
Machine locked in place at position 1 and upper stitch length adjusting
wheel set to 0.
Cover
• Tilt the machine head ( p. 10)

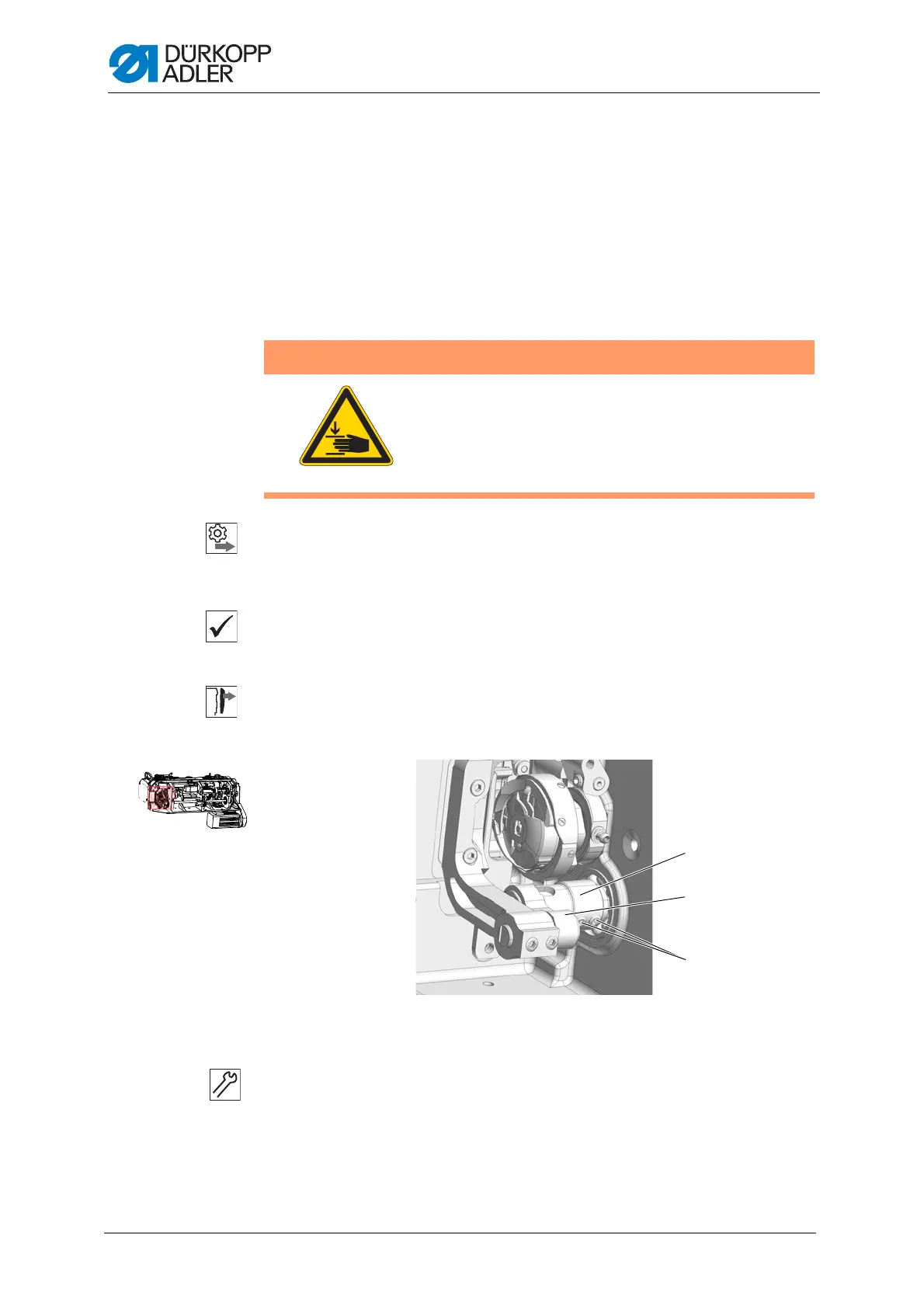

Fig. 26: Setting the stroke movement
To set the feed stroke:
1. Position the upper stitch length adjusting wheel to 0.
2. Lock the machine in place at position 1.
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you check and set
the stroke movement of the feed dog.
(1) - Stroke eccentric (2) - Lever
(3) - Stroke eccentric
①
②
③
