Thread cutter
Service Instructions 667 - 00.0 - 04/2016 65
14 Thread cutter
14.1 Setting the control cam position

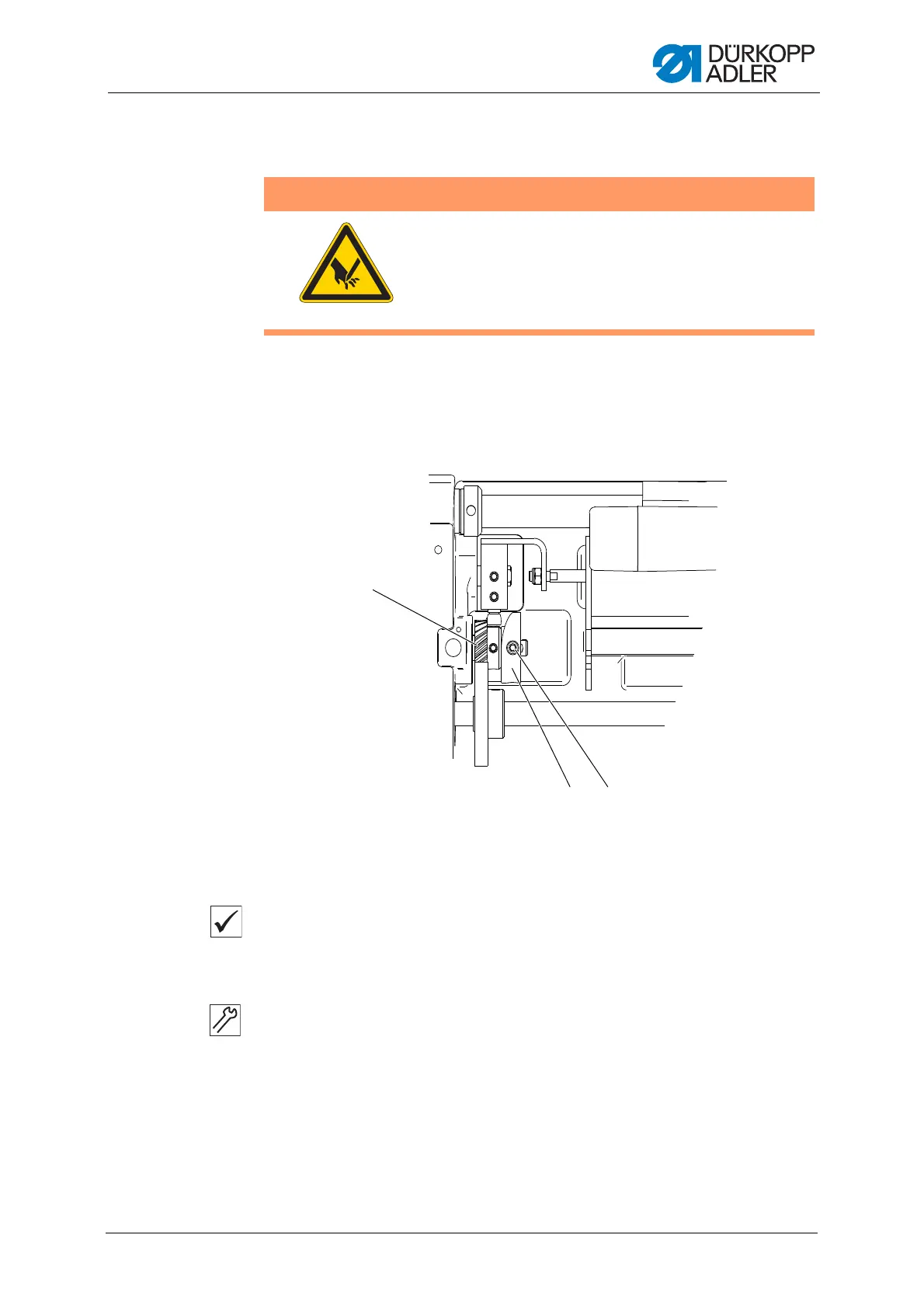

Fig. 47: Setting the control cam position
Proper setting
The control cam (2) makes contact with the hook pinion (1).
The first screw (3) in the hook's direction of rotation must be located on the
flat of the shaft. This defines the timing of the knife movement.
To set the position of the control cam:
1. Loosen the screw (3) on the control cam (2).
2. Rotate the control cam (2).
The first screw in the direction of rotation is located on the flat of the
shaft.
3. Tighten the screw (3).
WARNING
Risk of injury from sharp and moving parts!
Cutting and crushing possible.
Switch off the machine before setting the thread
cutter.
(1) - Hook pinion
(2) - Control cam
(3) - Screw
②③
