Sewing feet
54 Service Instructions 667 - 00.0 - 04/2016
11.1 Setting an even sewing foot stroke
Proper setting
For sewing foot stroke 3, the presser foot and feeding foot are raised by
the same height.
Cover
• Arm cover ( p. 11)

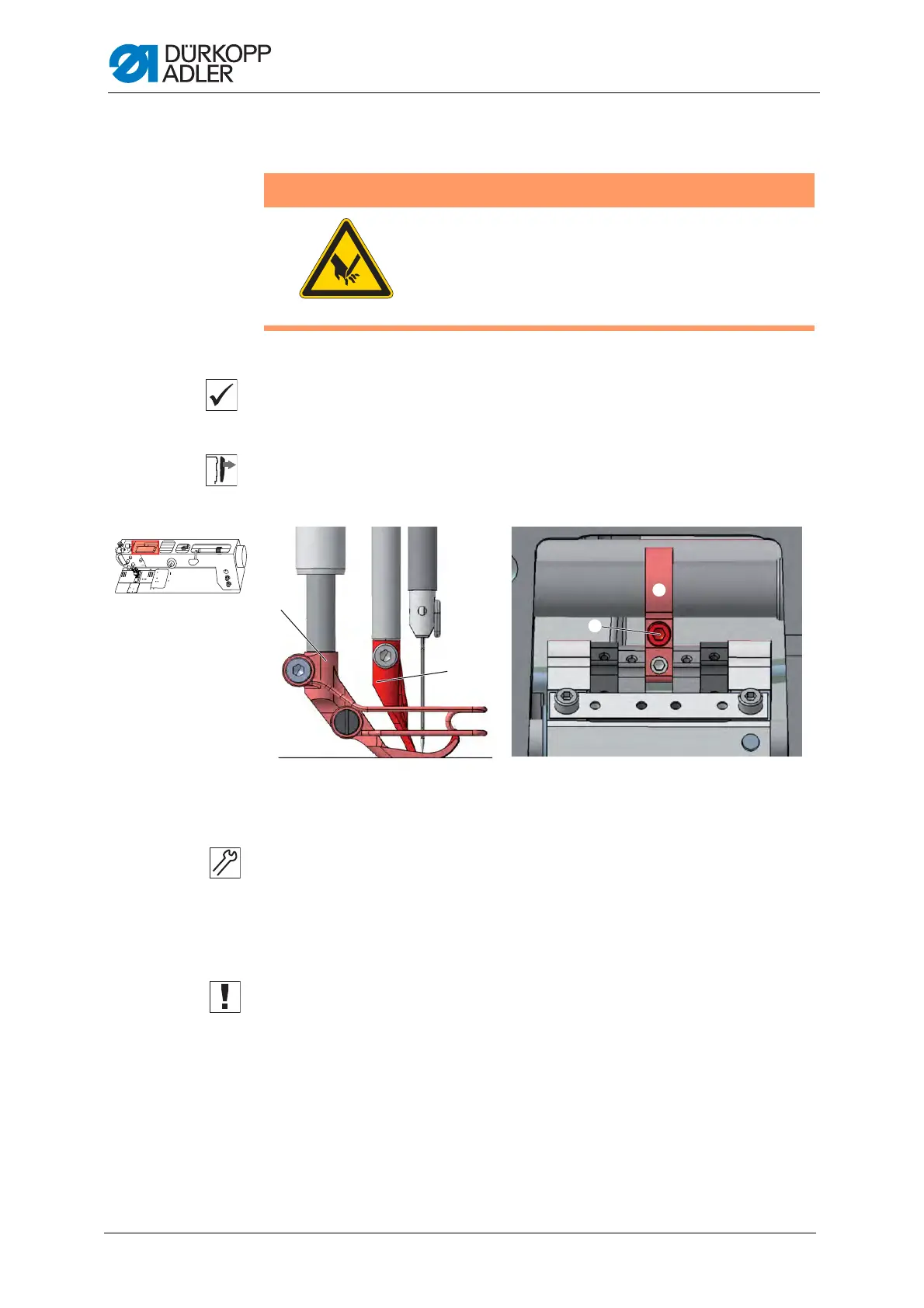

Fig. 35: Setting an even sewing foot stroke
To set the even sewing foot stroke:
1. Set the handwheel to the 0° position.
2. Loosen the screw (3).
3. Lower the presser foot (1) and feeding foot (2) together down to the
throat plate.
Important
While doing so, make sure that the feeding foot is only lowered down to
the throat plate. Do not inadvertently lower the feeding foot through the
throat plate cut-out down to the feed dog.
4. Tighten the screw (3).
WARNING
Risk of injury from sharp and moving parts!
Crushing and puncture possible.
Switch off the machine before you check and set
the sewing foot stroke.
(1) - Presser foot
(2) - Feeding foot
(3) - Screw
(4) - Sewing foot lever
