Positioning the arm shaft
Service Instructions 667 - 00.0 - 04/2016 19
4 Positioning the arm shaft
Proper setting
The 3 threaded pins (3) on the arm shaft crank (1) are seated completely
on the flat. The arm shaft crank (1) is flush with the machine casting (2).
Cover
• Arm cover ( p. 11)

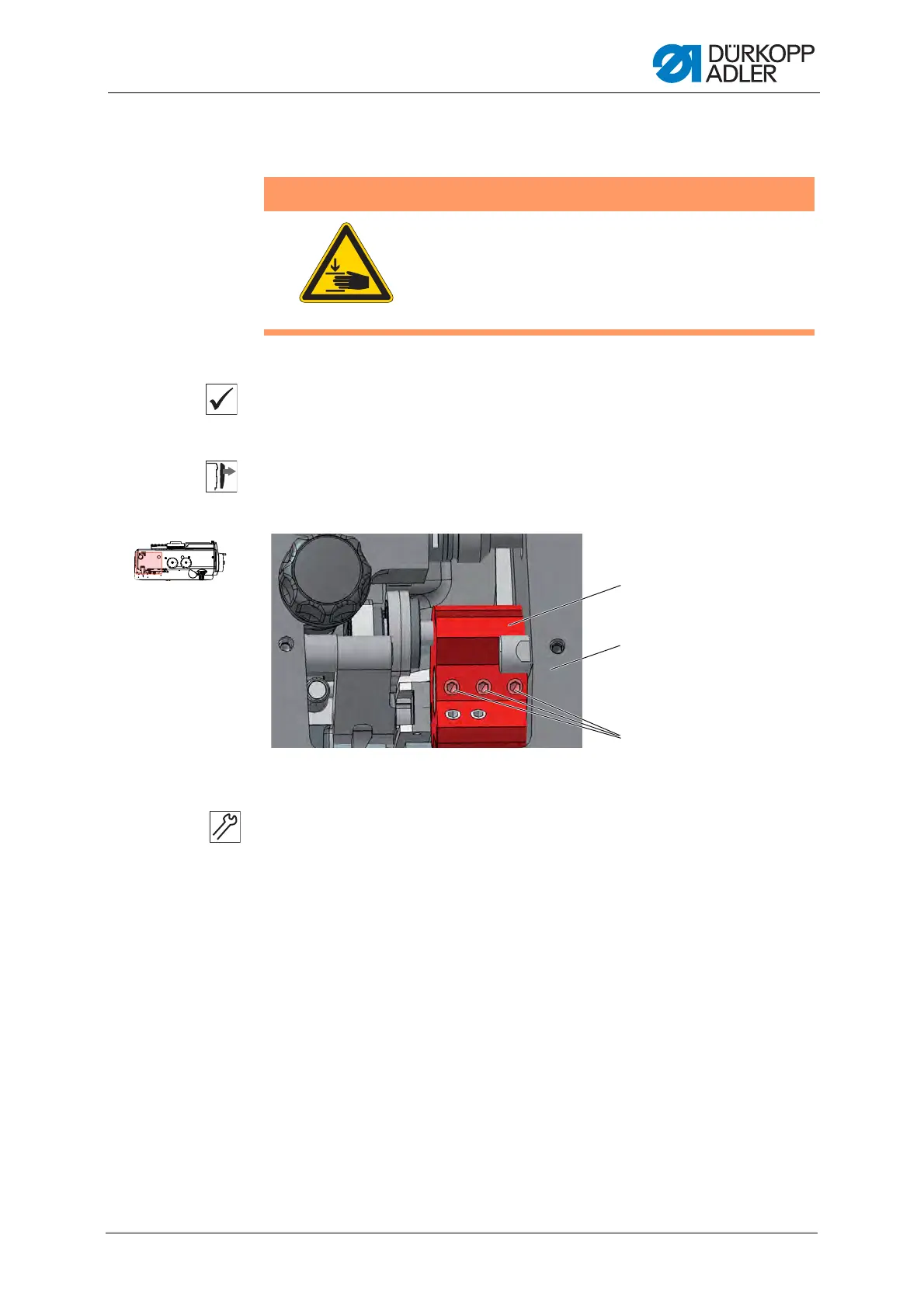

Fig. 11: Positioning the arm shaft
To position the arm shaft:
1. Loosen all threaded pins (3) on the arm shaft crank (1).
2. Turn the arm shaft crank (1) such that the threaded pins (3) are seated
completely on the flat of the arm shaft.
3. Push the arm shaft (1) to the right as far as it will go and flush with the
machine casting.
4. Tighten all the threaded pins (3) on the arm shaft crank (1).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you check and set
the position of the arm shaft crank.
3
1
2
(1) - Arm shaft crank
(2) - Machine casting
(3) - Threaded pins
