Thread cutter
66 Service Instructions 667 - 00.0 - 04/2016
14.2 Setting the armature of the thread cutter magnet

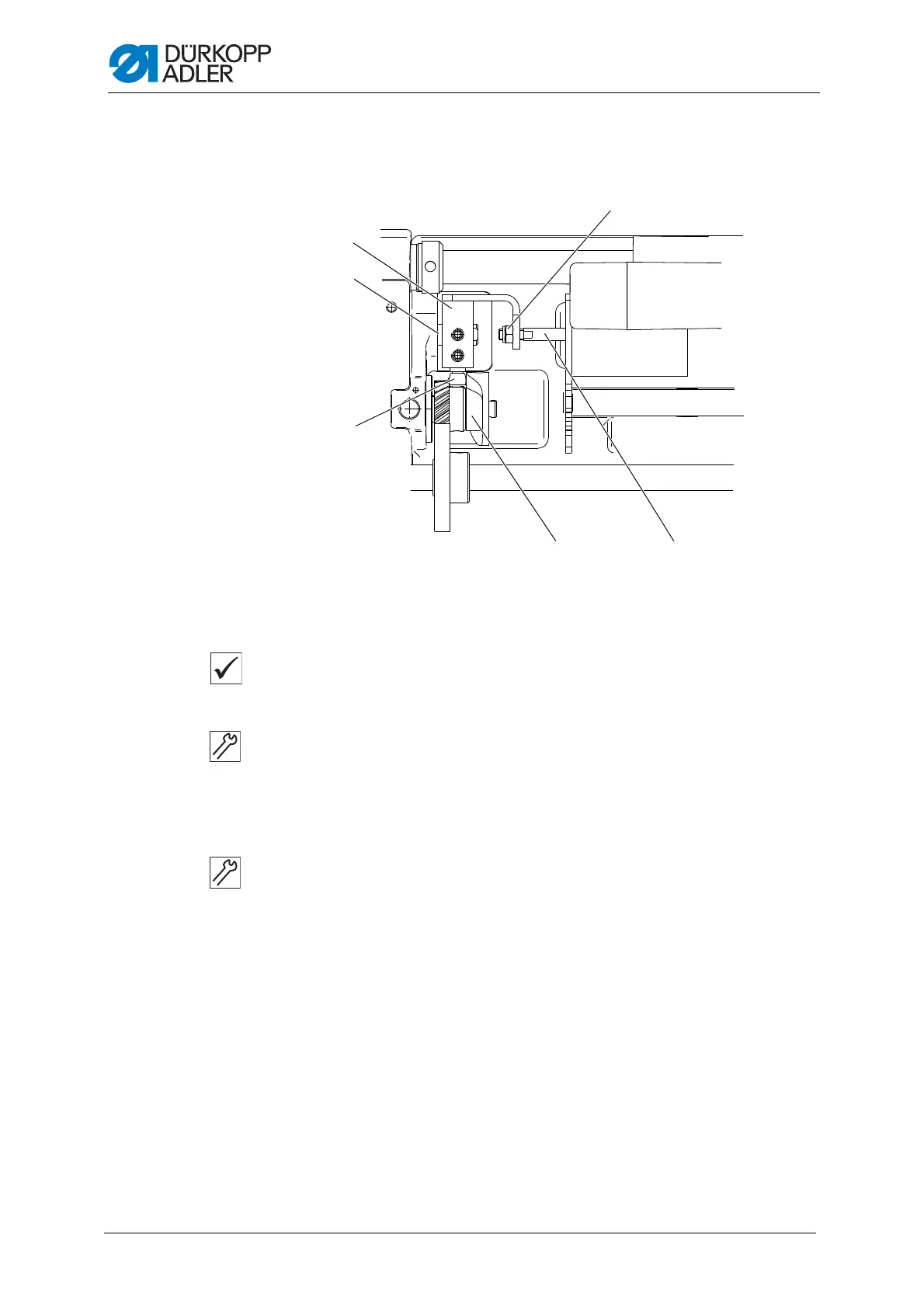

Fig. 48: Setting the armature of the thread cutter magnet
Proper setting
When the magnet is at rest, the distance between the roller (3) and the
highest point of the control cam (4) must range between 0.2 and 0.3 mm.
To check the armature of the thread cutter magnet:
1. Slide the pull rod (2) with the block (1) all the way to the left.
2. Check the distance between the roller (3) and the control cam (4) using
a feeler gage.
To set the armature of the thread cutter magnet:
3. Turn the nut (6) on the armature (5).
4. Check the setting and correct it if necessary.
(1) - Block
(2) - Pull rod
(3) - Roller
(4) - Control cam
(5) - Armature
(6) - Nut
