Working basis
Service Instructions 667 - 00.0 - 04/2016 15
3.3.6 Removing and installing the feed dog

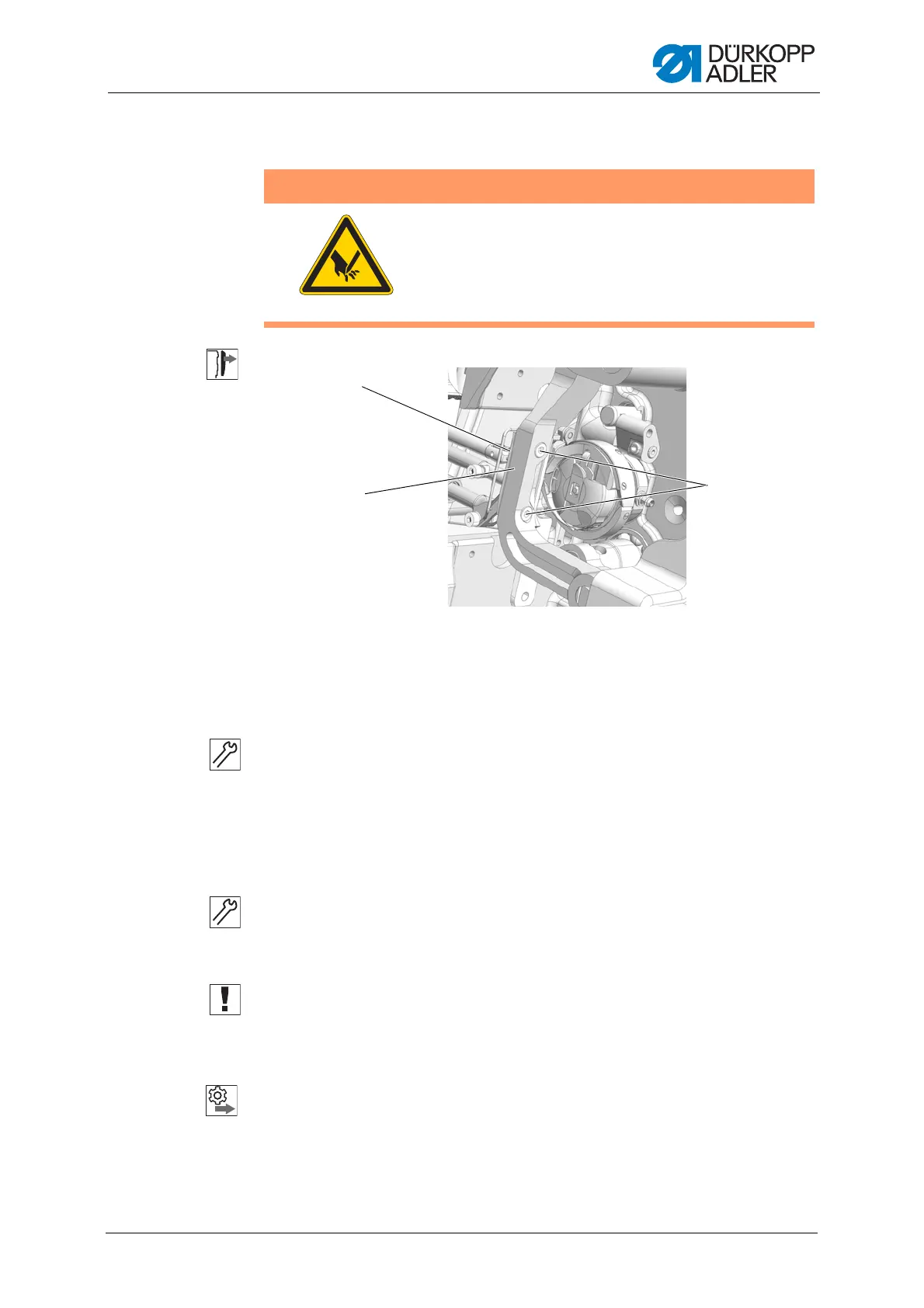

Fig. 6: Removing and installing the feed dog
Removing the feed dog
To remove the feed dog:
1. Tilt the machine head.
2. Loosen the screws (3).
3. Take the feed dog (1) off the feed dog carrier (2).
Installing the feed dog
To install the feed dog:
1. Place the feed dog (1) onto the feed dog carrier (2).
2. Tighten the screws (3).
Important
Check the feed dog position in its movement at maximum stitch length
(depending on the equipment: 6, 9 or 12) by turning the handwheel.
The feed dog must not hit against the throat plate.
Order
Then check the following setting:
• Feed dog ( p. 36)
WARNING
Risk of injury from sharp and moving parts!
Crushing and puncture possible.
Switch off the machine before you remove or install
the feed dog.
(1) - Feed dog (2) - Feed dog carrier
(3) - Screws
