Setting the handwheel scale
Service Instructions 667 - 00.0 - 04/2016 21
5 Setting the handwheel scale
Checking the proper setting
1. Lock the machine in place at position 2 ( p. 16).
The handwheel is at position 0°.
If a different degree number is next to the marking (2) then you will
have to reset the graduated scale.

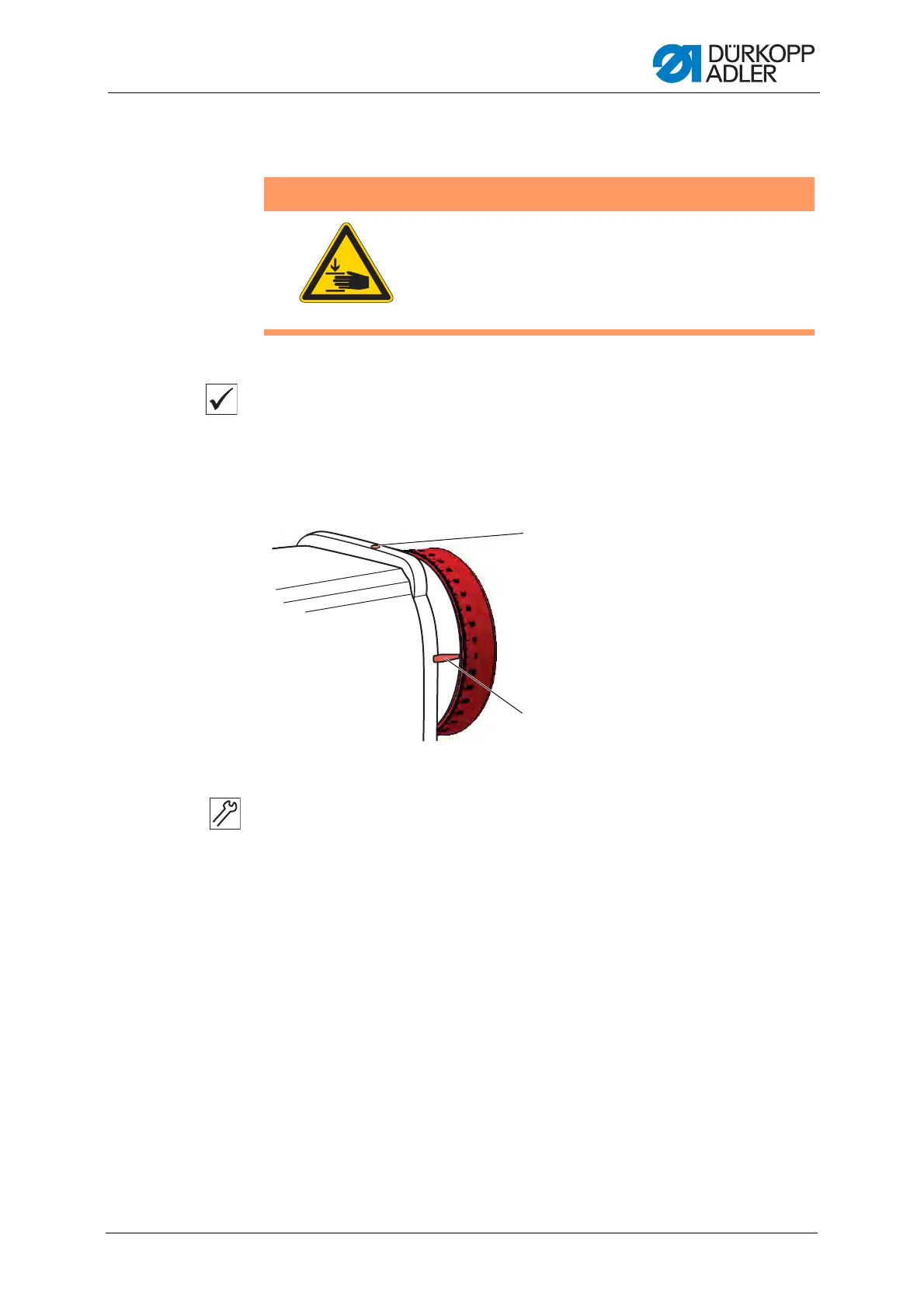

Fig. 12: Setting the handwheel scale
To set the handwheel scale:
The handwheel is fastened using 2 threaded pins, which you can see
through the screw opening (1).
1. Turn handwheel until the first threaded pin is under the opening (1).
2. Loosen the threaded pin through the opening (1).
3. Turn the handwheel by 50° such that the second threaded pin is under
the opening (1).
4. Loosen the threaded pin through the opening (1).
5. Lock the machine in place at position 2 ( p. 16).
6. Turn the handwheel scale so that the 0° is at the center of the
marking (2).
7. Tighten the threaded pin through the opening (1).
8. Removing the lock ( p. 16).
9. Move the handwheel into the 50° position.
10. Tighten the threaded pin through the opening (1).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you check and set
the position of the handwheel on the arm shaft.
2
1
(1) - Screw opening (2) - Marking
