Setting the feed dog

36 Service Instructions 667 - 00.0 - 04/2016

8.1.1 Moving the feed dog

Cover

• Throat plate ( p. 14)

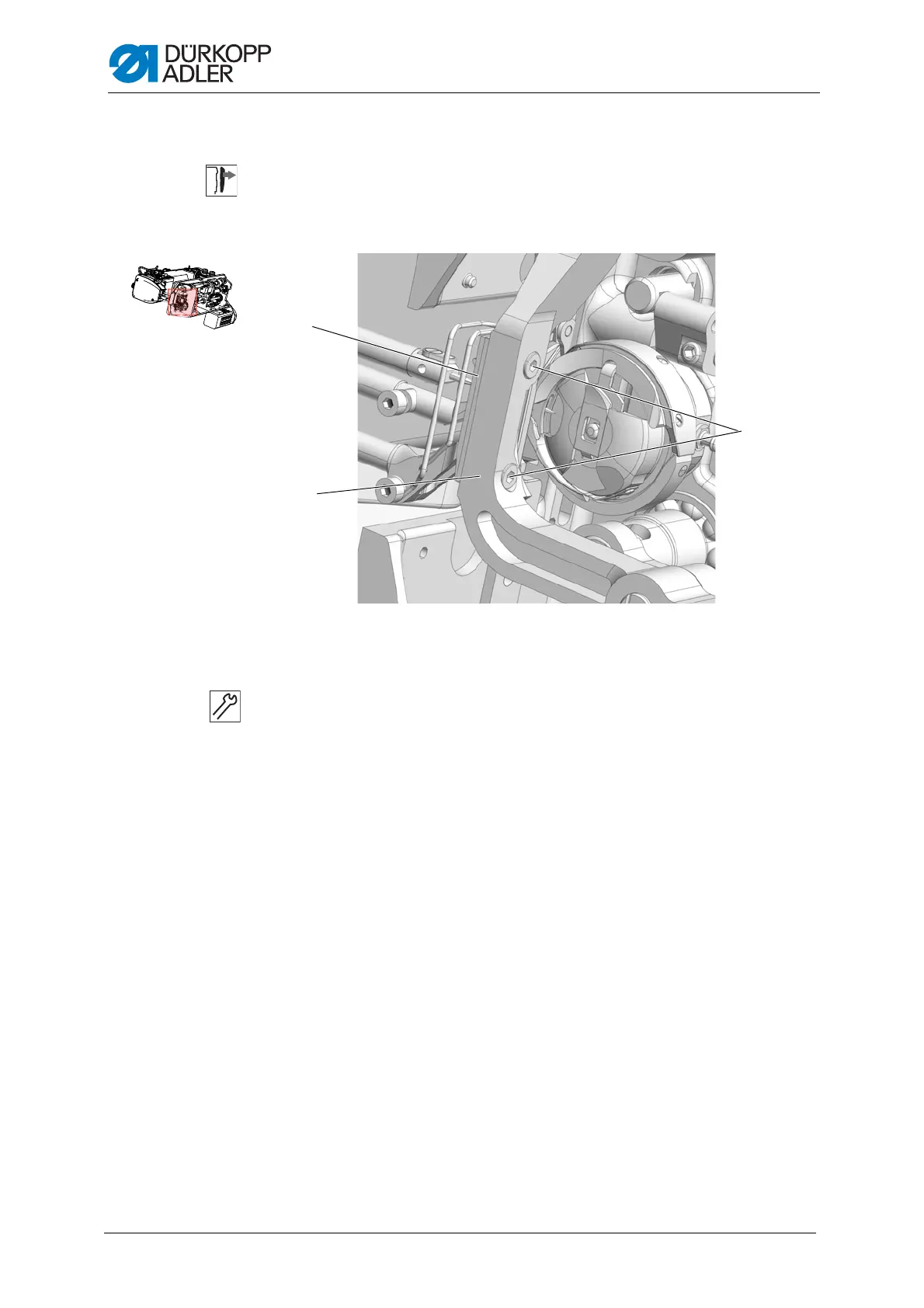

Fig. 22: Moving the feed dog

To move the feed dog:

1. Loosen the screws (3).

2. Move the feed dog (1) on the feed dog carrier (2).

Place the removed throat plate next to it as an aid for orientation so

that the feed dog can be screwed on straight.

3. Tighten the screws (3).

(1) - Feed dog

(2) - Feed dog carrier

(3) - Screws

①

②

③
