3.3.5 Removing and installing the throat plate

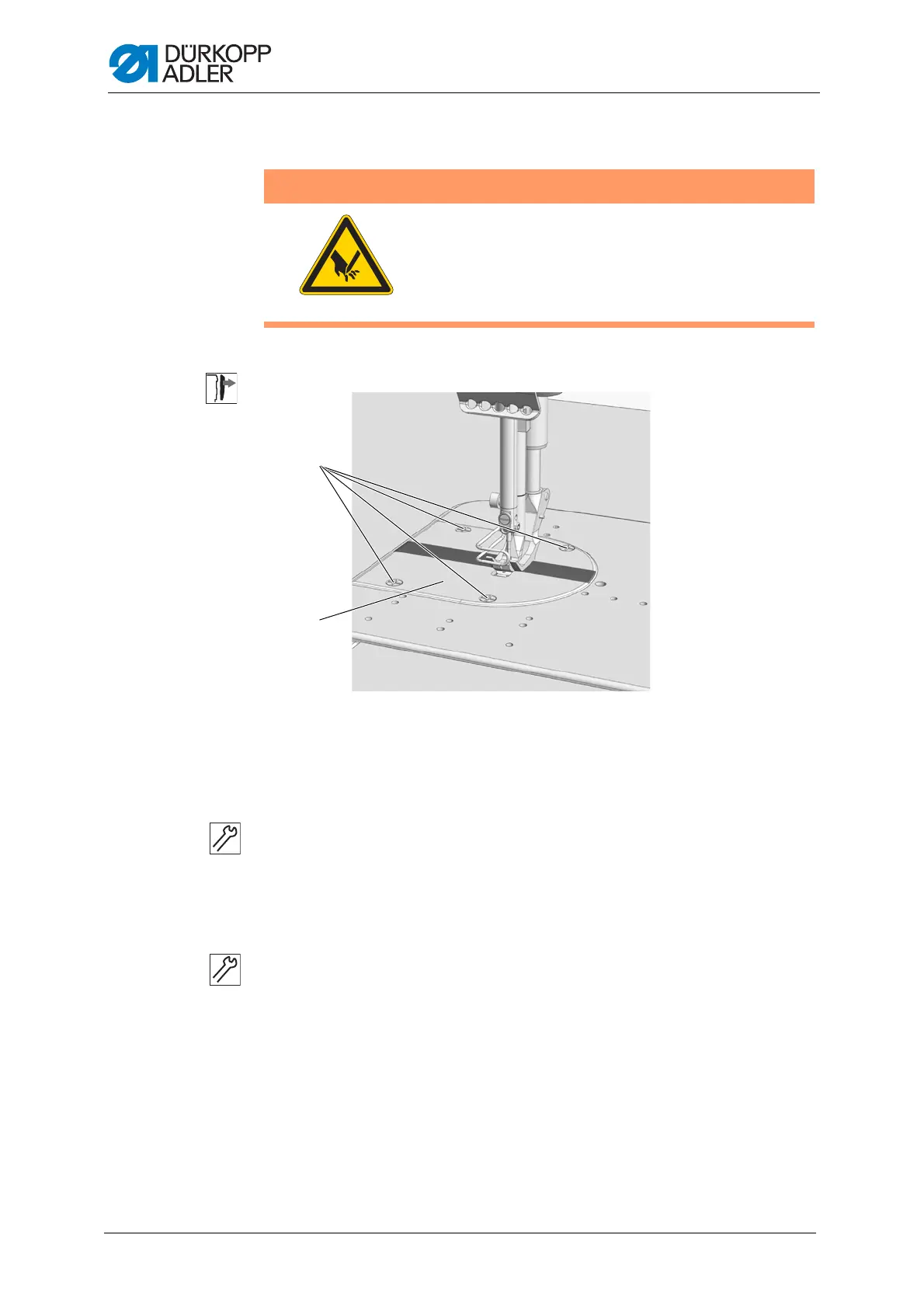

Fig. 5: Removing and installing the throat plate
Removing the throat plate
To remove the throat plate:
1. Loosen the screws (1).
2. Remove the throat plate (2).
Installing the throat plate
To install the throat plate:
1. Insert the throat plate (2).
2. Tighten the screws (1).
WARNING
Risk of injury from sharp and moving parts!
Crushing and puncture possible.
Switch off the machine before you remove or install
the throat plate.
(1) - Screws (2) - Throat plate
