Sewing feet
58 Service Instructions 667 - 00.0 - 04/2016
11.4 Setting the sewing foot lifting height
When the pedal is pressed back halfway, the sewing feet can be raised
during sewing, e. g. to move the sewing material.
When the pedal is pressed completely back, the sewing feet will be raised
after the thread is cut so that the sewing material can be exchanged.
Proper setting
The distance between the raised sewing feet and the throat plate is preset
to 25 mm on delivery.

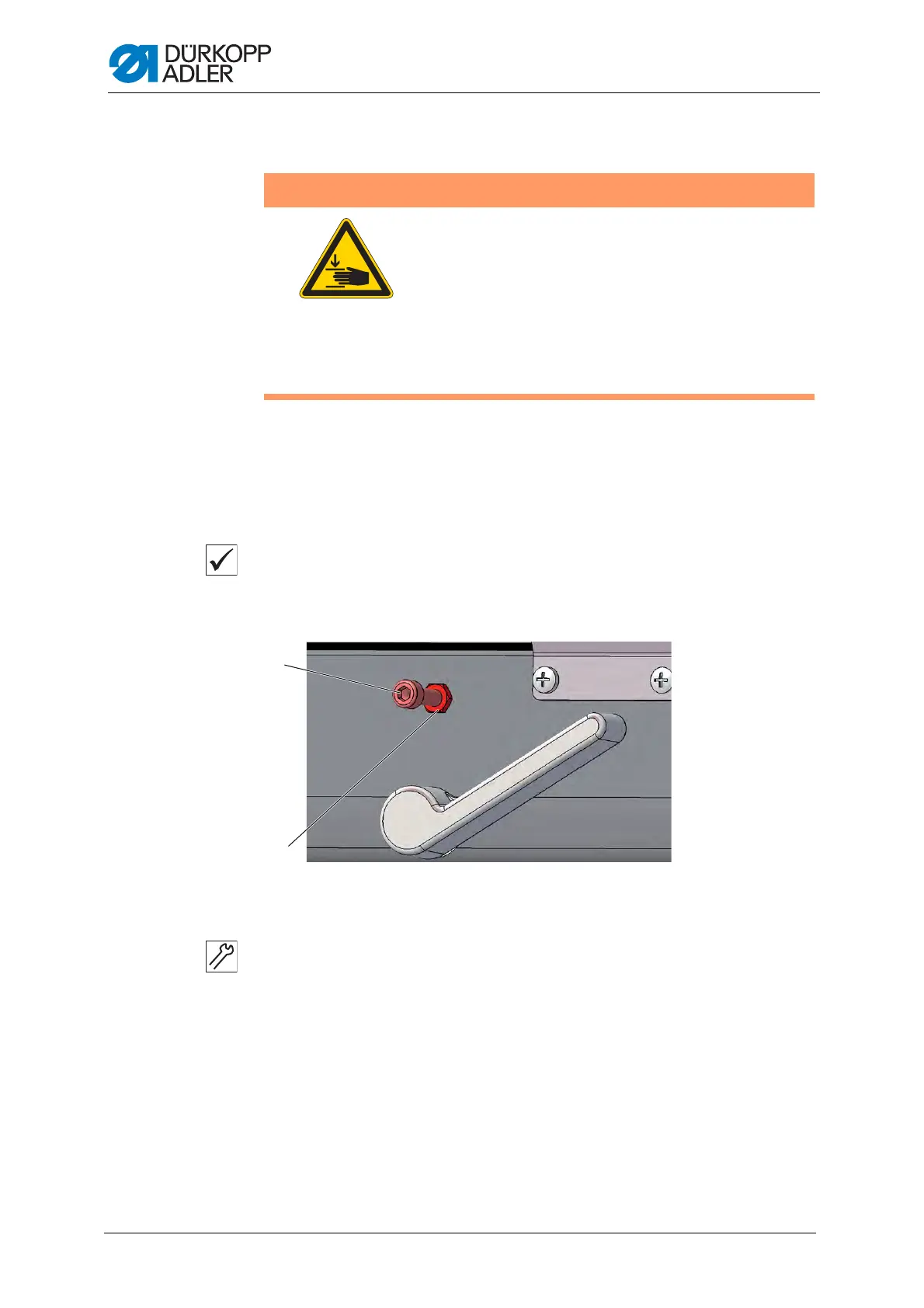

Fig. 39: Setting the sewing foot lifting height
Setting steps
1. Loosen the counternut (2) for the adjusting screw (1).
2. Turn the adjusting screw (1) to set the distance between the raised
sewing feet and the throat plate:
• Raise the sewing feet to a lesser height: turn clockwise
• Raise the sewing feet higher: turn counterclockwise
3. Tighten the counternut (2) for the adjusting screw (1).
WARNING
Risk of injury from moving parts!
Crushing possible
The machine must remain switched on so that the
sewing feet can be raised.
Work very carefully when you check and set the
lifting height for the sewing feet.
Do not put your hands under the sewing feet when
they are being lowered.
2
1
(1) - Adjusting screw
(2) - Counternut
