Sewing feet
56 Service Instructions 667 - 00.0 - 04/2016

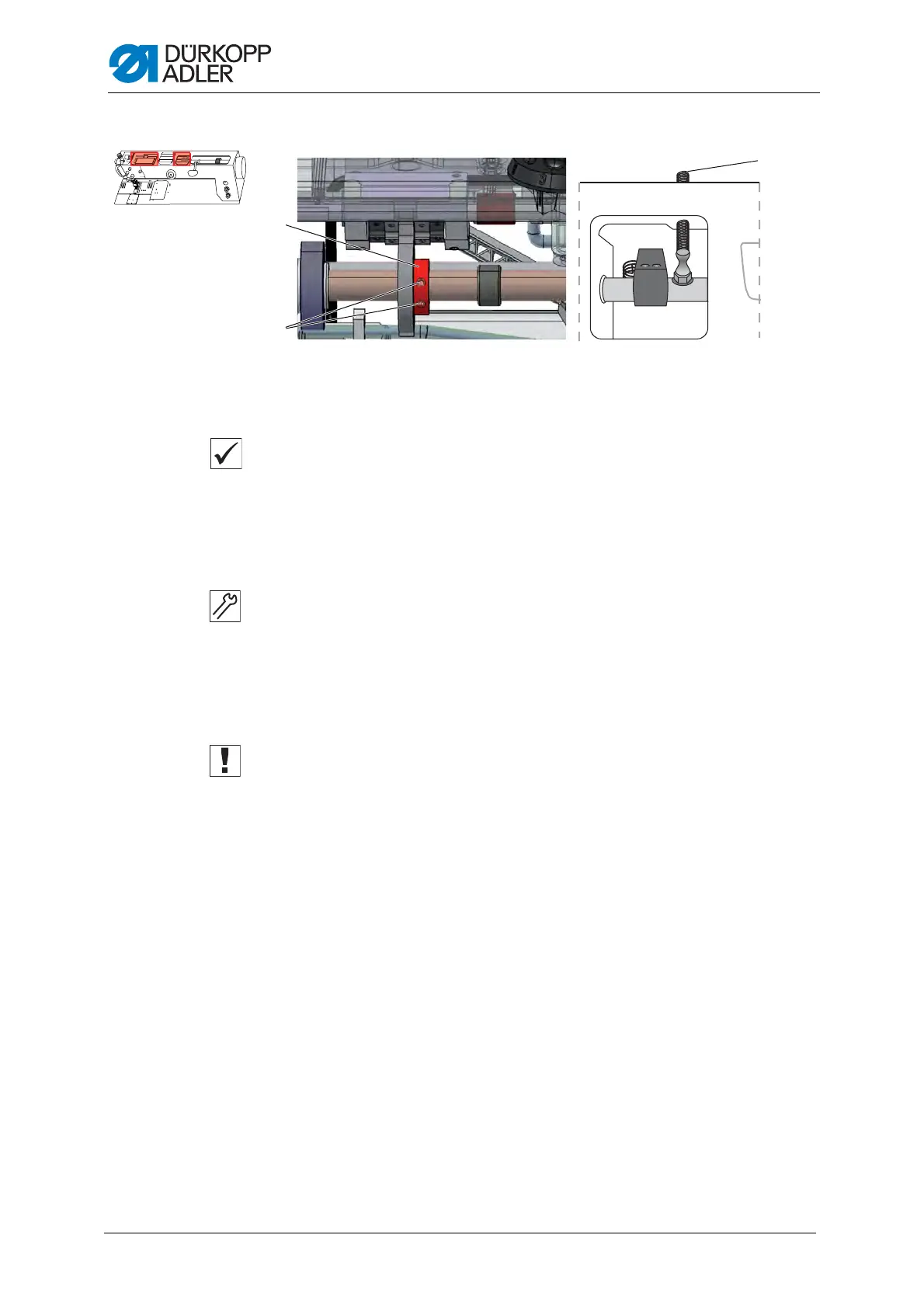

Fig. 37: Setting the stroke movement for the feeding foot (2)
Proper setting
The feeding foot reaches the level of the throat plate at the same time as
the following elements:
• The feed dog moving up
• The needle tip moving down
To set the stroke movement for the feeding foot:
1. Screw in the threaded pin (3) so that there is a stroke.
2. Loosen the threaded pins (2).
3. Turn the stroke eccentric (1) such that the feeding foot reaches the
level of the throat plate at the same time as the feed dog and the tip
of the needle.
Important
When doing so, ensure not to move the stroke eccentric (1) laterally on the
axle.
4. Tighten the threaded pins (2).
5. Unscrew the threaded pin (3) far enough so that there is no longer any
contact with the clamp.
(1) - Stroke eccentric
(2) - Threaded pins
(3) - Threaded pin
