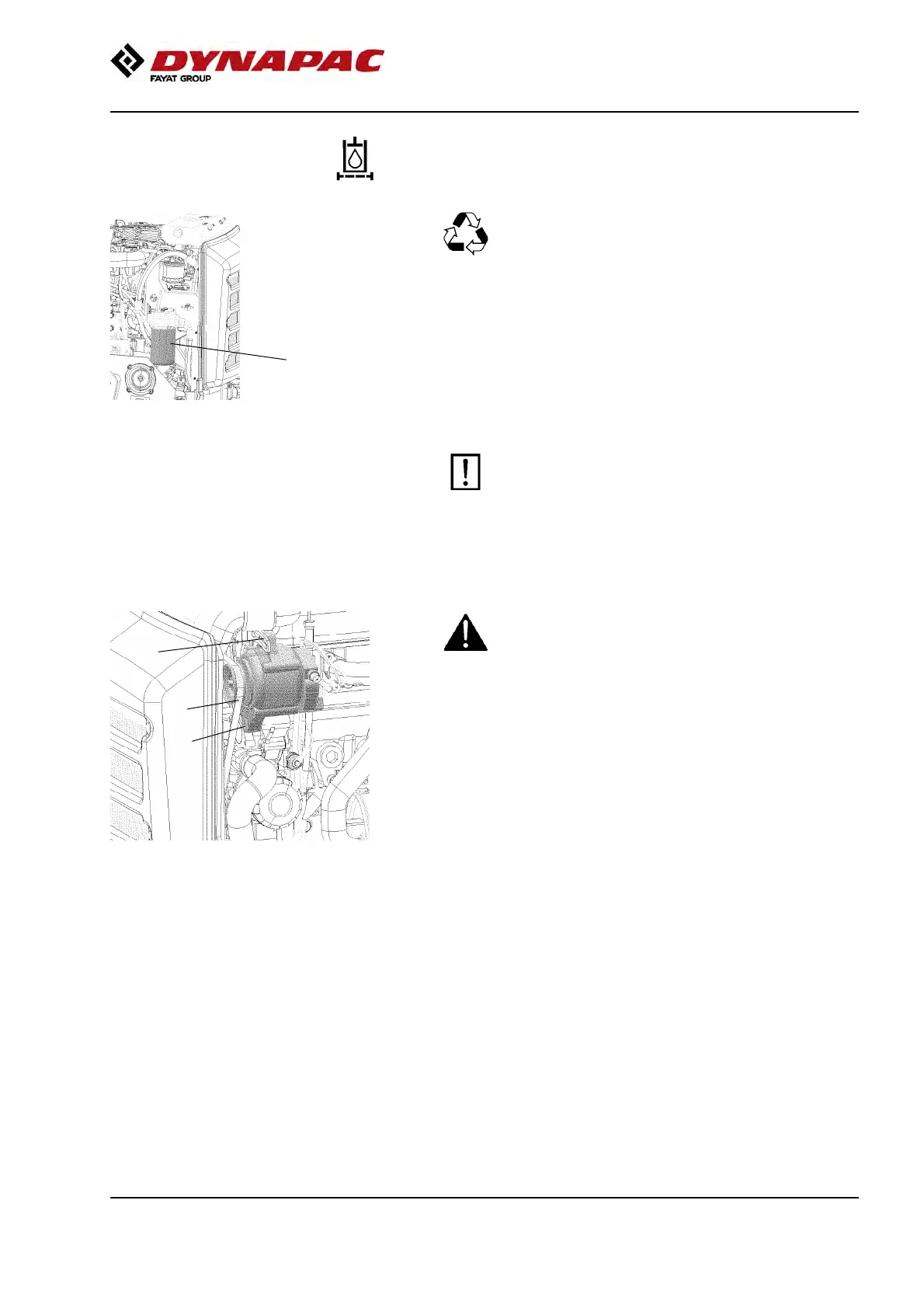

Maintenance - 1000h
4812160801_D.pdf2018-12-17
Hydraulic fluid filter - Change
Fig. Engine compartment, left side
1. Hydraulic fluid filter
1
Remove the filter (1) and deliver to special waste
handling. This is a single-use filter and cannot be
cleaned.
Remove the filter (1) and deliver to special waste
handling. This is a single-use filter and cannot be
cleaned.
Thoroughly clean the filter holder sealing surface.
Apply a thin coat of fresh hydraulic fluid to the rubber
gasket on the new filter.
Screw the filter on by hand, firstly until the filter gasket
makes contact with the filter base. Then rotate a
further ½ turn.
Do not over-tighten. The seal can be damaged.Do not over-tighten. The seal can be damaged.
Start the engine and check that the filter does not leak.
Alternator belt - Checking tension - Change
Fig. Alternator viewed from the front
1. Mounting screw
2. Mounting screw
3. Alternator belt
1
2
3
Switch off the engine, disconnect the power and
switch on the emergency brake button.
Switch off the engine, disconnect the power and
switch on the emergency brake button.
Undo the two hexagonal socket screws (1) and (2).
Bend off the old alternator belt and replace with a new
Press the alternator across so that the alternator belt
is tensioned to the measurement given below.
When the alternator belt (3) can be pressed by hand in
around 10 mm halfway between the pulleys, it is
correctly tensioned.
Tighten first screw (1) and then screw (2). Check that
the belt still has the correct tension after tightening.
