Maintenance - 2000h
4812160801_D.pdf 2018-12-17

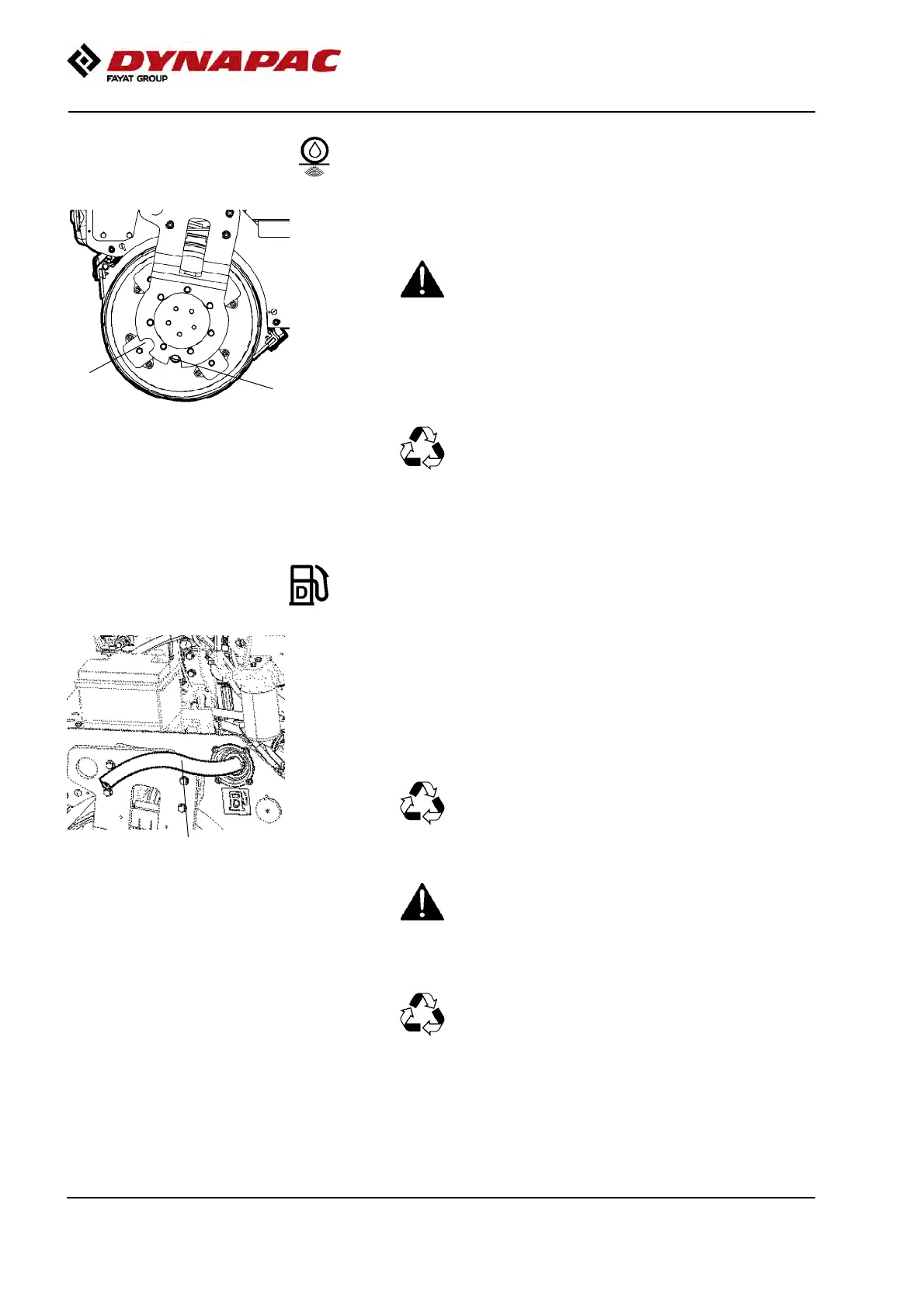

Drum - Changing the oil
Fig. Drum, vibration side
1. Oil plug (1) in position
for draining the oil.
2. The oil plug position for level
check and filling.
1
2
Park the roller on a level surface, and drive the roller
slowly until the plug (1) is in the bottom position.
Switch off the engine, disconnect the power and
push in the emergency stop button.
Switch off the engine, disconnect the power and
push in the emergency stop button.
Place a receptacle that will hold at least 4 liters (1 gal)
under the plug.
Remove the plug (1) and let the oil run out.
Deliver the drained oil to special waste handling.Deliver the drained oil to special waste handling.
Refit the plug. Top up with new oil in position 2. See
'Every 500 hours of operation' for filling oil.
Fuel tank - Cleaning
Fig. Fuel tank
1. Hose from external pump
1
It is easiest to clean the tank when it is almost empty.
Pump out any bottom sediment using an external
pump.
To remove any additional bottom sediment, fill the tank
with two liters of diesel, and then pump it out using the
external pump.
Collect in a container which holds at least 28
liters and deliver to special waste handling.
Collect in a container which holds at least 28
liters and deliver to special waste handling.
Keep in mind fire risk when handling fuel.Keep in mind fire risk when handling fuel.
The fuel tank is made of plastic (polyethylene)
and is recyclable.
The fuel tank is made of plastic (polyethylene)
and is recyclable.
