Releasing the brake
1. Remove the 2 plugs (191).

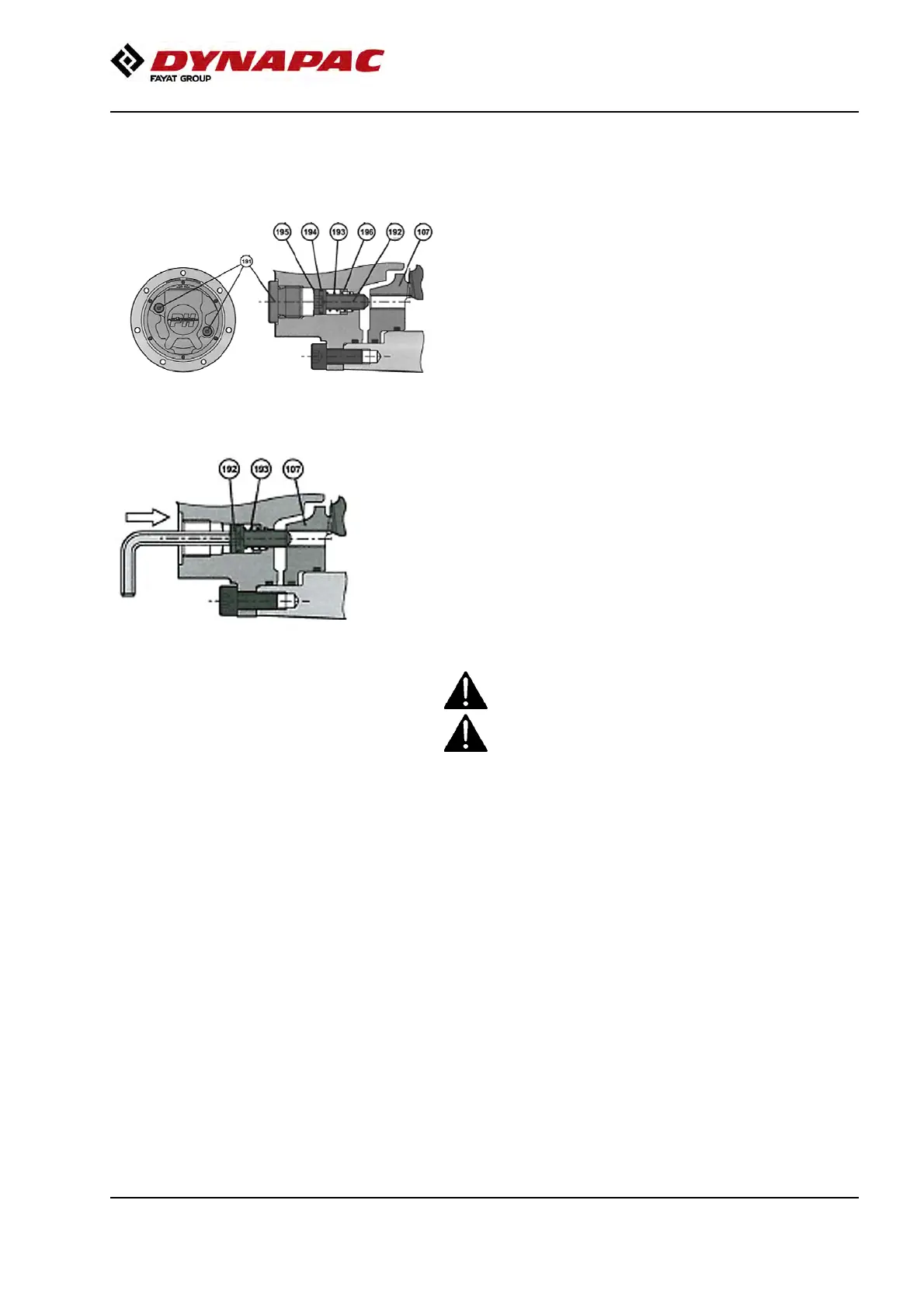

Figure. Releasing the brake
2. Press the screws (192) inwards to compress the
springs (193) so that the screw reaches the brake
(107) inner thread.
3. Tighten the two screws (192) alternately a little at a
time so that the brake piston (107) loose (screw
approximately 2 turns).
Tightening the screws (192) too hard can damage
the inner mechanism
Tightening the screws (192) too hard can damage
the inner mechanism
The machine should be started with reactivated
brake.
The machine should be started with reactivated
brake.
