Maintenance, 10h
4812160801_D.pdf2018-12-17
Sprinkler system - Check, cleaning

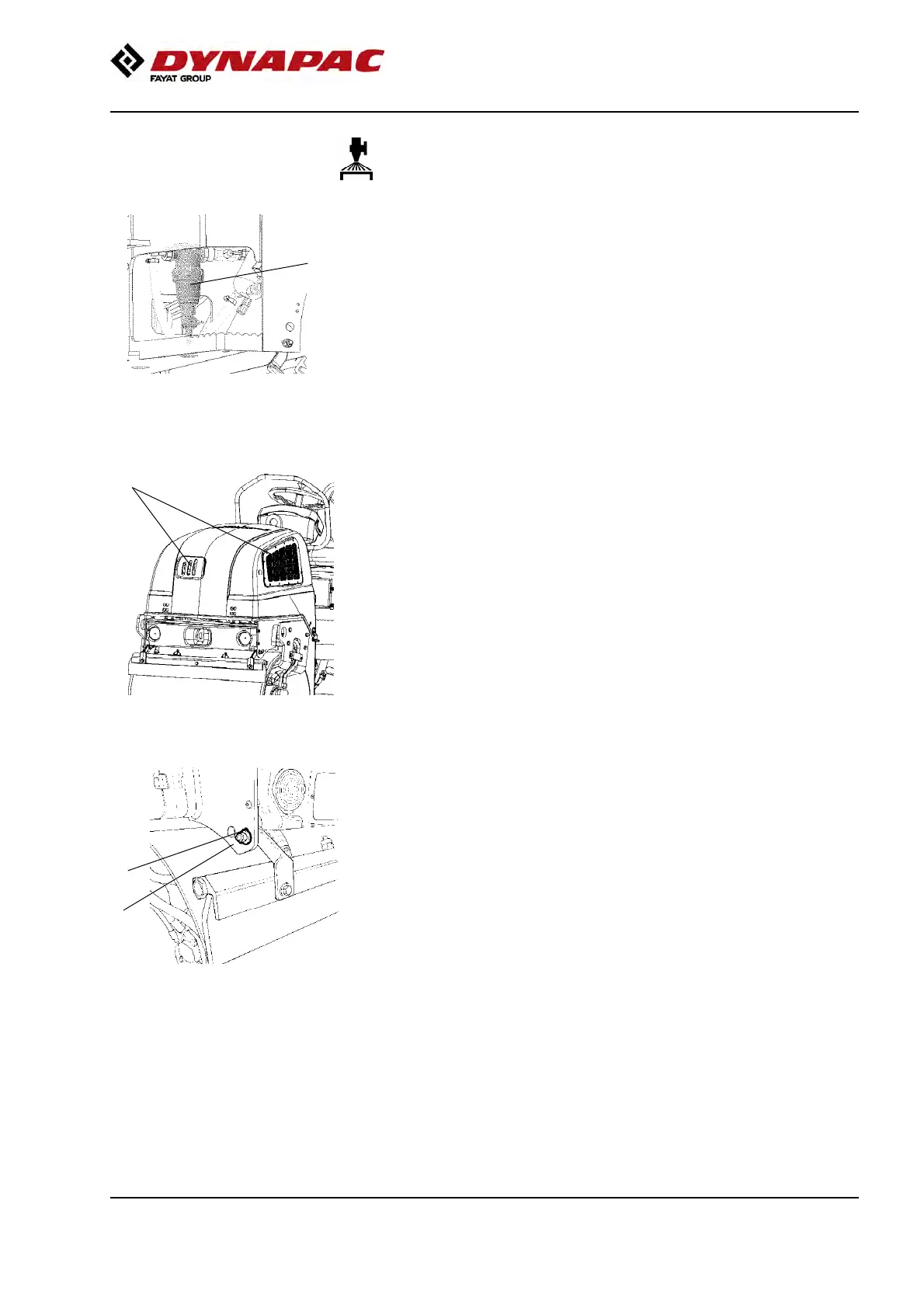

Fig. Bay under the floor
1. Water filter
1
Check that the water filter (1) is not blocked. Clean
where necessary. Clean the water filter by unscrewing
the filter’s lower section, and clean the strainer and
filter housing. Reassemble in the reverse order.
Fig. Engine cover
1. Cooling air grille/engine
1
Air circulation - Check
Check that the circulation of air to the engine through
the grille in the engine cover is unobstructed.
Fig. Front scrapers in transport
position
2. Locking nut
3. Mounting plate
2
3
Scrapers - Check, adjustment
Make sure that the scrapers are undamaged. Adjust
the scrapers if necessary in the following way:
For firmer application of the scraper, undo the locking
nut (2) and adjust it until the desired application is
achieved.
Lock the setting by tightening the lock nut against the
mounting bracket (3).
Adjust the pressure on both scraper brackets.
To set a lower scraper pressure, adjust in the reverse
order to the above.
