Miscellaneous
4812160801_D.pdf2018-12-17
Miscellaneous
Lifting
2
3
1

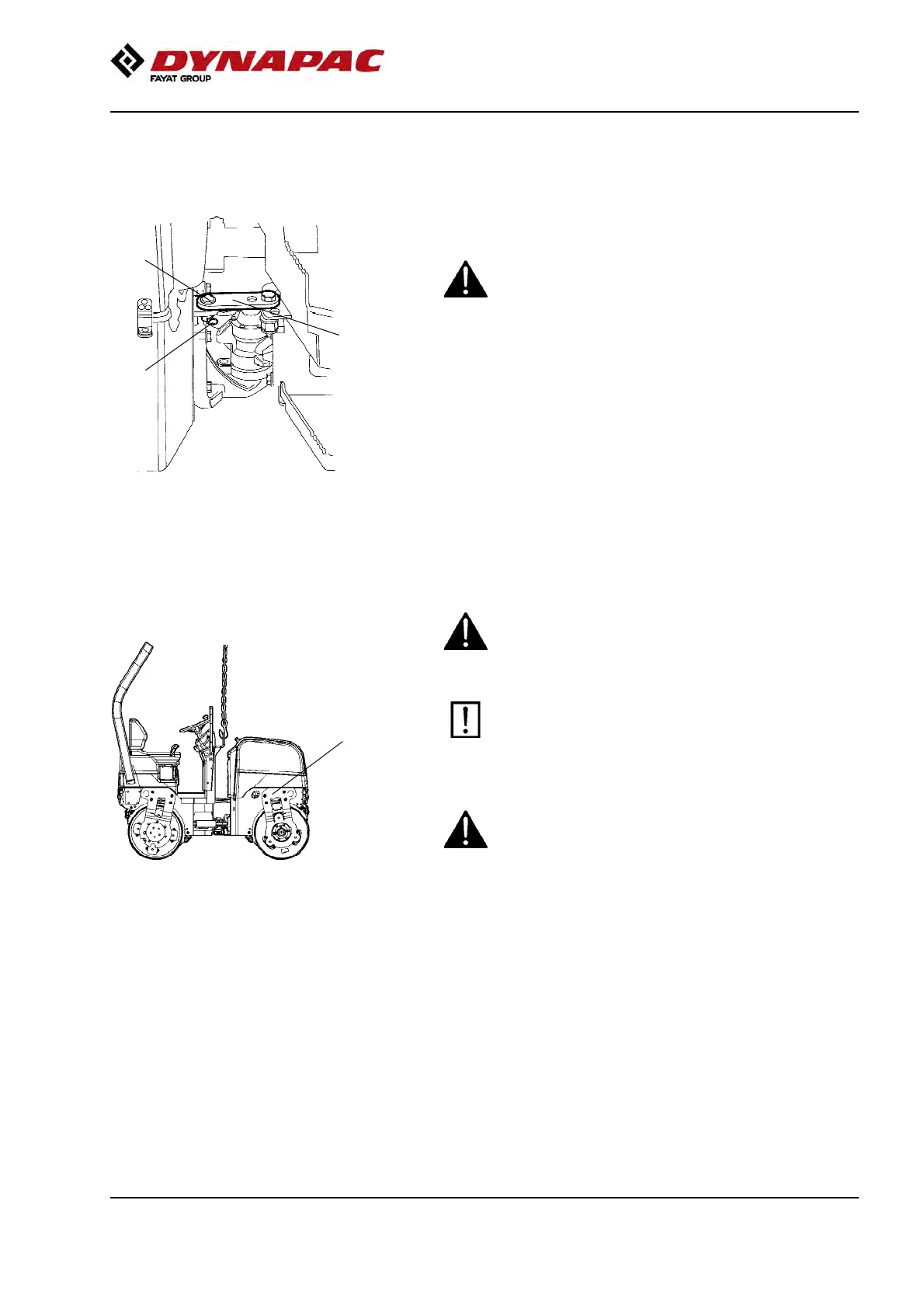

Fig. Steering joint
1. Cotter pin
2. Locking arm
3. Locking bolt
Locking the articulation
Before lifting the roller the steering joint must be
locked to prevent it turning.
Before lifting the roller the steering joint must be
locked to prevent it turning.
Turn the steering wheel to the straight ahead position.
Switch off the machine. Apply the parking brake.
Pull out the locking pin (1), turn the locking arm (2) to
the front frame, secure the locking arm to the front
frame half by inserting the locking bolt (3) through the
bracket in the front frame and the locking arm.
Secure the position of the locking arm by refitting the
locking pin (1).
Lifting the roller
Weight: refer to the hoisting plate on
the roller
1
Fig. Roller prepared for lifting
1. Hoisting plate
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
Lifting gear such as chains, steel wires, straps,
and lifting hooks must be dimensioned and used
in accordance with the applicable safety
regulations for lifting devices.
Lifting gear such as chains, steel wires, straps,
and lifting hooks must be dimensioned and used
in accordance with the applicable safety
regulations for lifting devices.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
49
