Dynapac CC1000 User Manual

Maintenance - Maintenance schedule
4812160801_D.pdf2018-12-17
Maintenance - Maintenance schedule

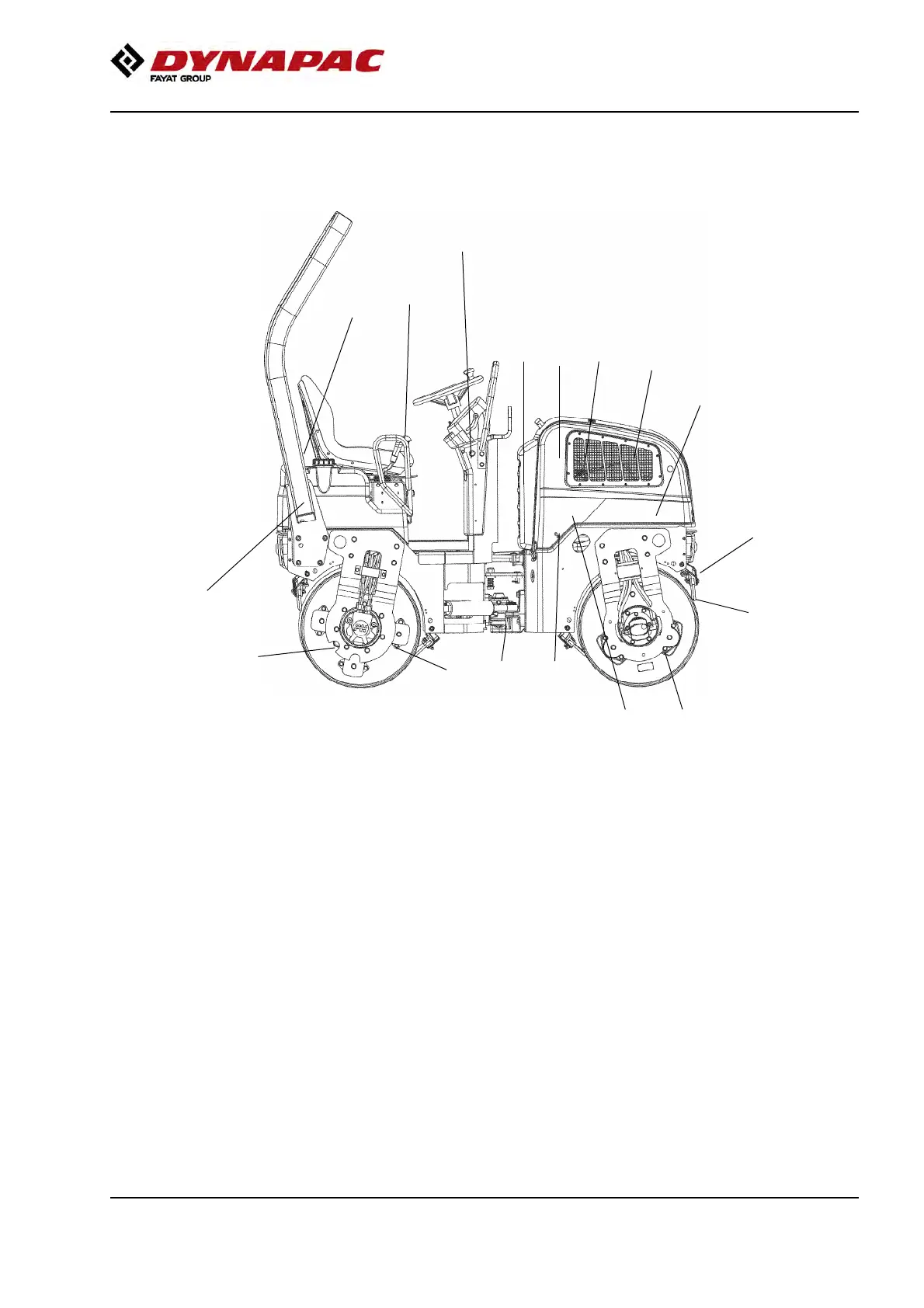

Service and maintenance points
Fig. Service and maintenance points
1
2
3
4 5
6
7
8
9
10
1112
13
14
15
16
11
17
1. Water tank, filling 7. Air cleaner 13. Hydraulic fluid, filling1. Water tank, filling 7. Air cleaner 13. Hydraulic fluid, filling
2. Forward/Reverse lever 8. Battery (maintenance free) 14. Fuel tank, refilling2. Forward/Reverse lever 8. Battery (maintenance free) 14. Fuel tank, refilling
3. Emergency brake 9. Sprinkler (left side)3. Emergency brake 9. Sprinkler (left side)
4. Hydraulic fluid cooler/ radiator 10. Scrapers 15. Steering joint4. Hydraulic fluid cooler/ radiator 10. Scrapers 15. Steering joint
5. Alternator belt 11. Rubber element 16. Drums, filling with oil5. Alternator belt 11. Rubber element 16. Drums, filling with oil
6. Engine 12. Hydraulic fluid filter 17. ROPS6. Engine 12. Hydraulic fluid filter 17. ROPS
