Maintenance - 2000h
4812160801_D.pdf2018-12-17
Steering joint - Check

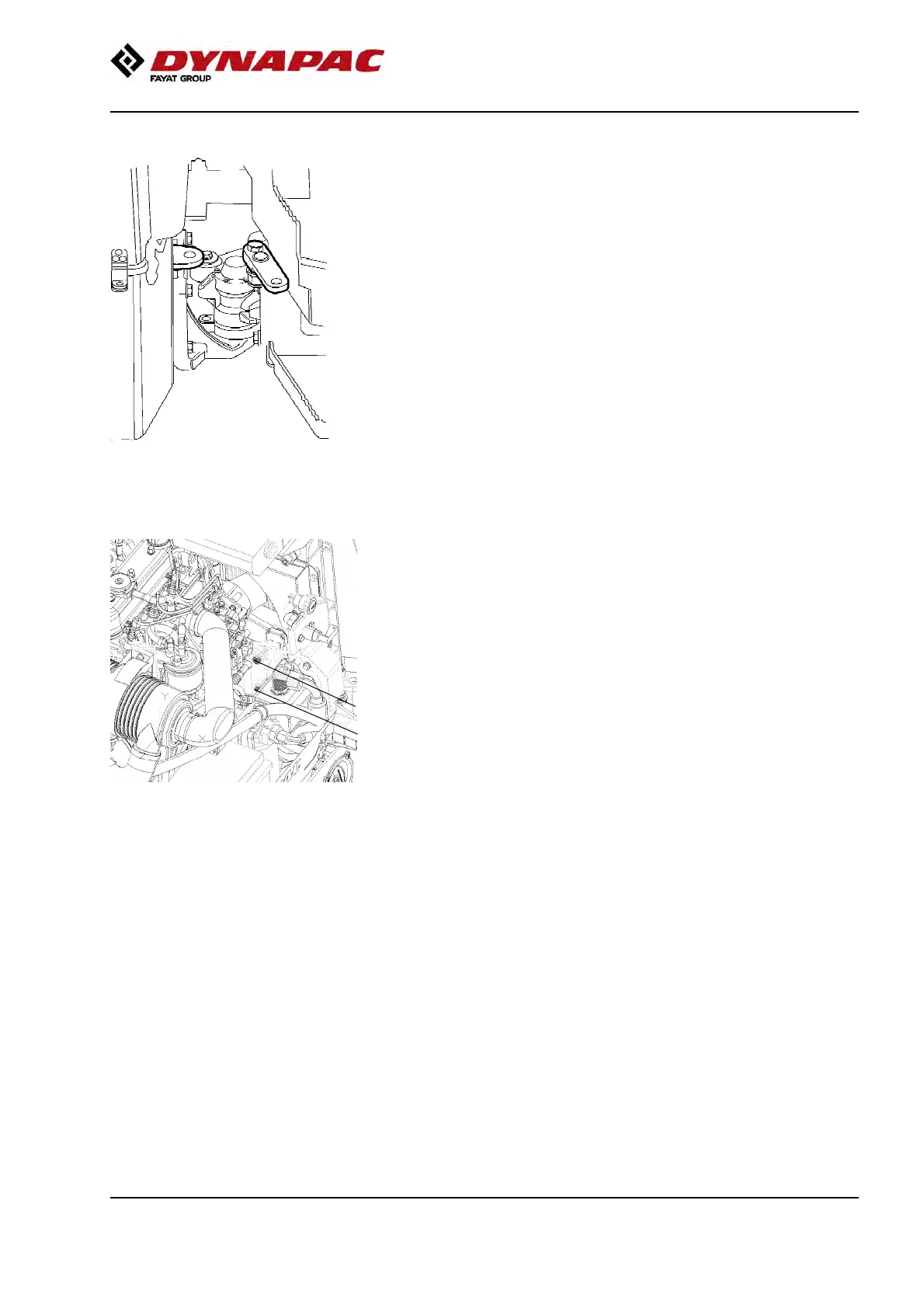

Fig. Steering joint
Inspect the steering joint to detect any damage or
cracks.
Check and tighten any loose bolts.
Check also for any stiffness and play in the steering
joint. Rectify if necessary.
Belt tension on the hydraulic pump drive belt -
Check
Fig. Engine compartment
1. Screw
2. Screw
1
2
If the hydraulic pump drive belt can be pressed in 5-6
mm between the pulleys with a force of 50 Nm, then
the belt is correctly tensioned.
Do as follows to tension the belt:
- Undo the screws (1) and (2).
- Press over the hydraulic pump so that the belt
tensions to the specified extent.
- Tighten screw (1) and then screw (2).
- Check that the belt still has the correct tension after
tightening.
Replace the belt when necessary, or after 2000 h.
107
