Miscellaneous
4812160801_D.pdf 2018-12-17

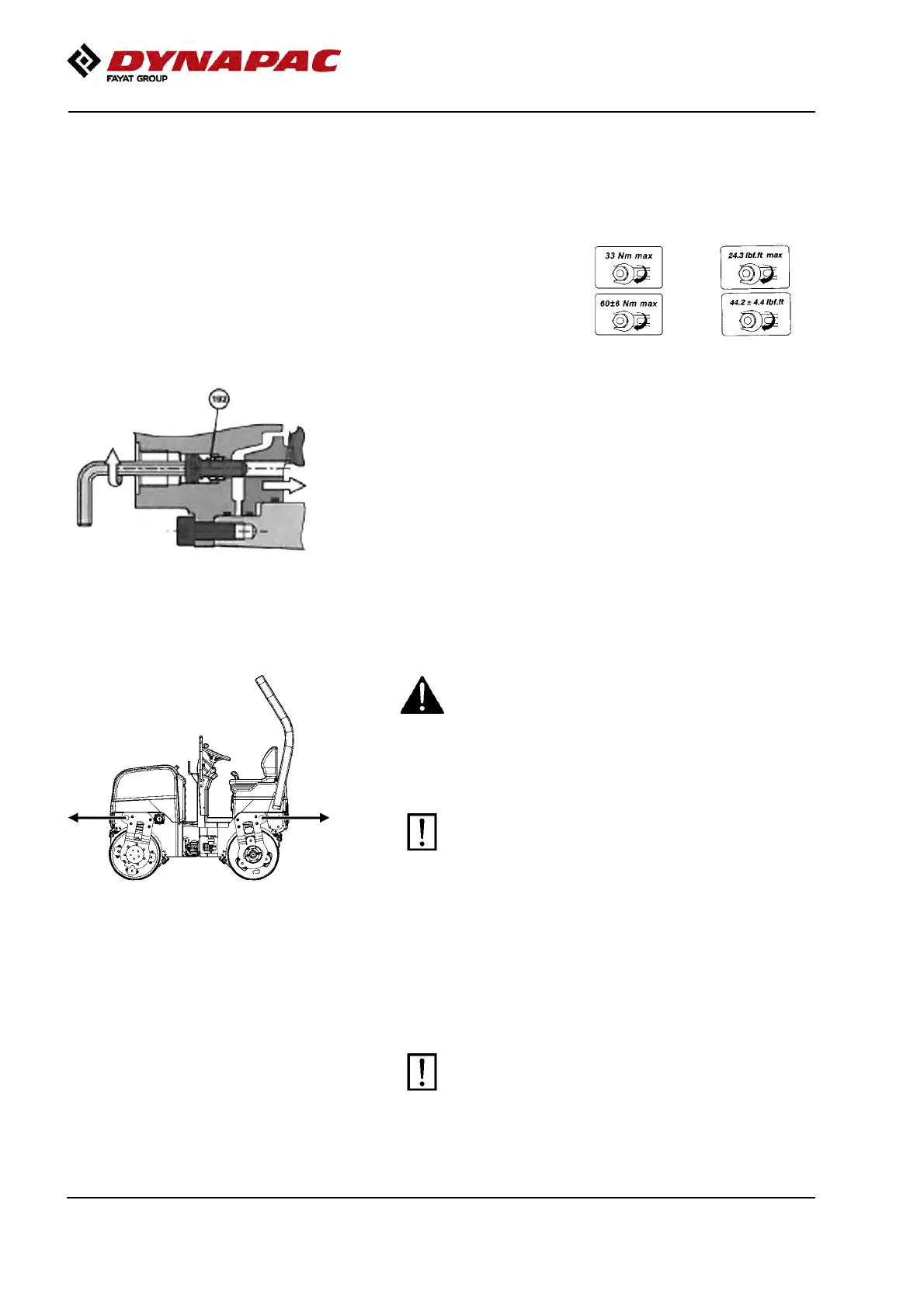

Restored brakeRestored brake
Undo the two screws (192) alternately, and then insert
the plugs (191).
Undo the two screws (192) alternately, and then insert
the plugs (191).
Tightening torqueTightening torque
Screws (192)Screws (192)
Plugs (191)Plugs (191)
Towing the roller
Fig. Towing the roller
A towing bar must be used when towing, as the
roller has no brakes and can only be slowed and
stopped by the vehicle towing the roller.
A towing bar must be used when towing, as the
roller has no brakes and can only be slowed and
stopped by the vehicle towing the roller.
The roller must be towed slowly, max. 3 km/h (2
mph) and for short distances only, max. 300 m
(1000 ft).
The roller must be towed slowly, max. 3 km/h (2
mph) and for short distances only, max. 300 m
(1000 ft).
When towing/recovering a machine, the towing device
must be connected to both lifting holes. Pulling forces
shall act longitudinally on the machine as illustrated.
Max total towing force 50.8 kN (11,430 lbf), 25.4 kN
(5,715 lbf) per fork.
Reset the steps taken for towing as described in
the towing instructions on the previous page.
Reset the steps taken for towing as described in
the towing instructions on the previous page.
54
