Maintenance - 1000h
4812160801_D.pdf 2018-12-17
Belt tension on the hydraulic pump drive belt -
Check

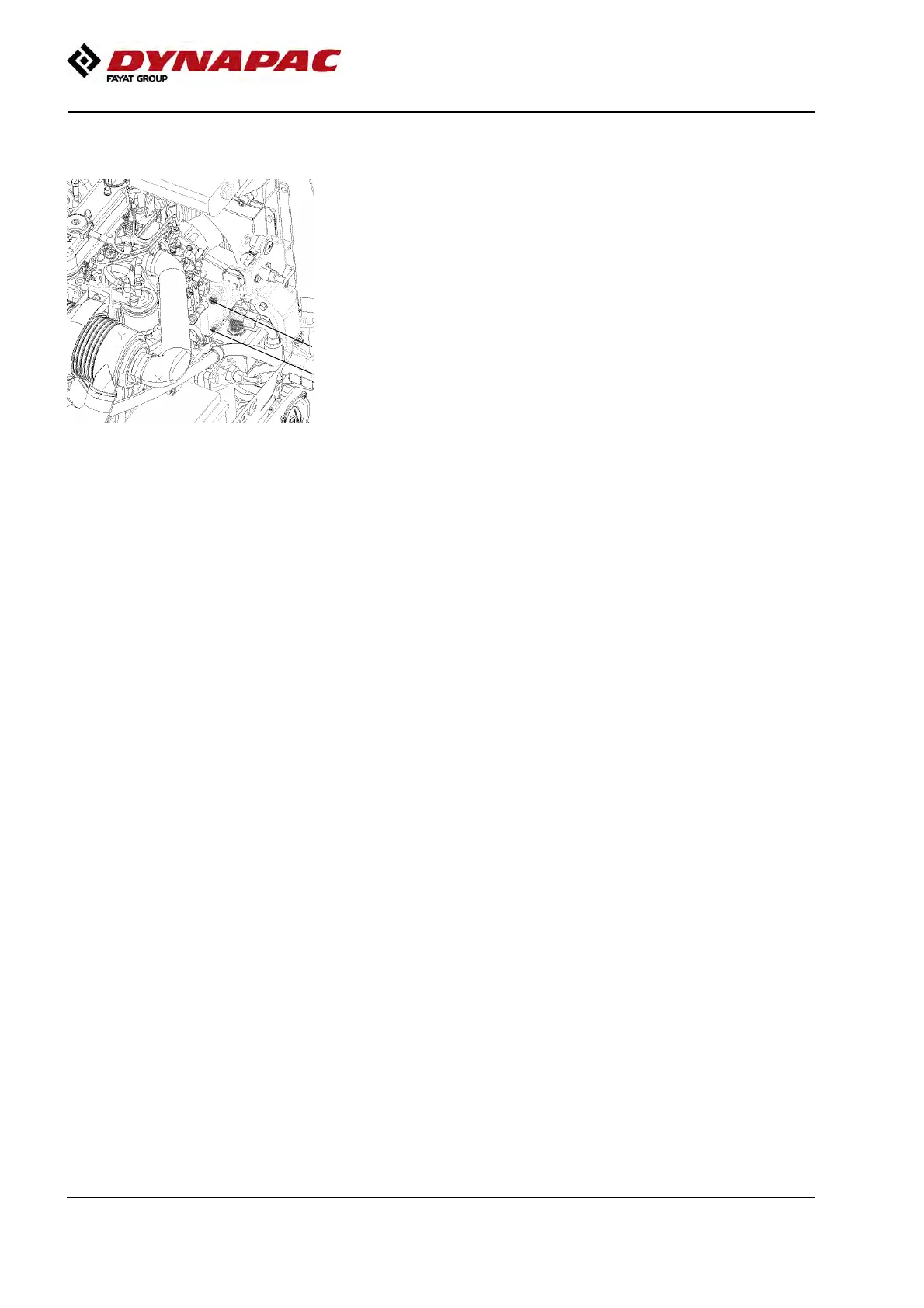

Fig. Engine compartment
1. Screw
2. Screw
1
2
If the hydraulic pump drive belt can be pressed in 5-6
mm between the pulleys with a force of 50 Nm, then
the belt is correctly tensioned.
Do as follows to tension the belt:
- Undo the screws (1) and (2).
- Press over the hydraulic pump so that the belt
tensions to the specified extent.
- Tighten screw (1) and then screw (2).
- Check that the belt still has the correct tension after
tightening.
Replace the belt when necessary, or after 2000 h.
