Dynapac CC1000 User Manual

Machine description
4812160801_D.pdf 2018-12-17
Locations - Control panel and controls
1 Starter switch 23 Low fuel level1 Starter switch 23 Low fuel level
2 Engine speed control 24 Oil pressure, engine2 Engine speed control 24 Oil pressure, engine
3 Emergency stop 25 Parking brake lamp3 Emergency stop 25 Parking brake lamp
4 Vibration On/Off 26 Fuel level4 Vibration On/Off 26 Fuel level
5 Handbook compartment 27 Water temperature, engine5 Handbook compartment 27 Water temperature, engine
6 Forward/reverse lever 28 Battery/charging6 Forward/reverse lever 28 Battery/charging
7 Seat switch 29 Glow plug7 Seat switch 29 Glow plug
8 Fuse box 30 Hourmeter8 Fuse box 30 Hourmeter
9 Instrument cover 31 Parking brake9 Instrument cover 31 Parking brake

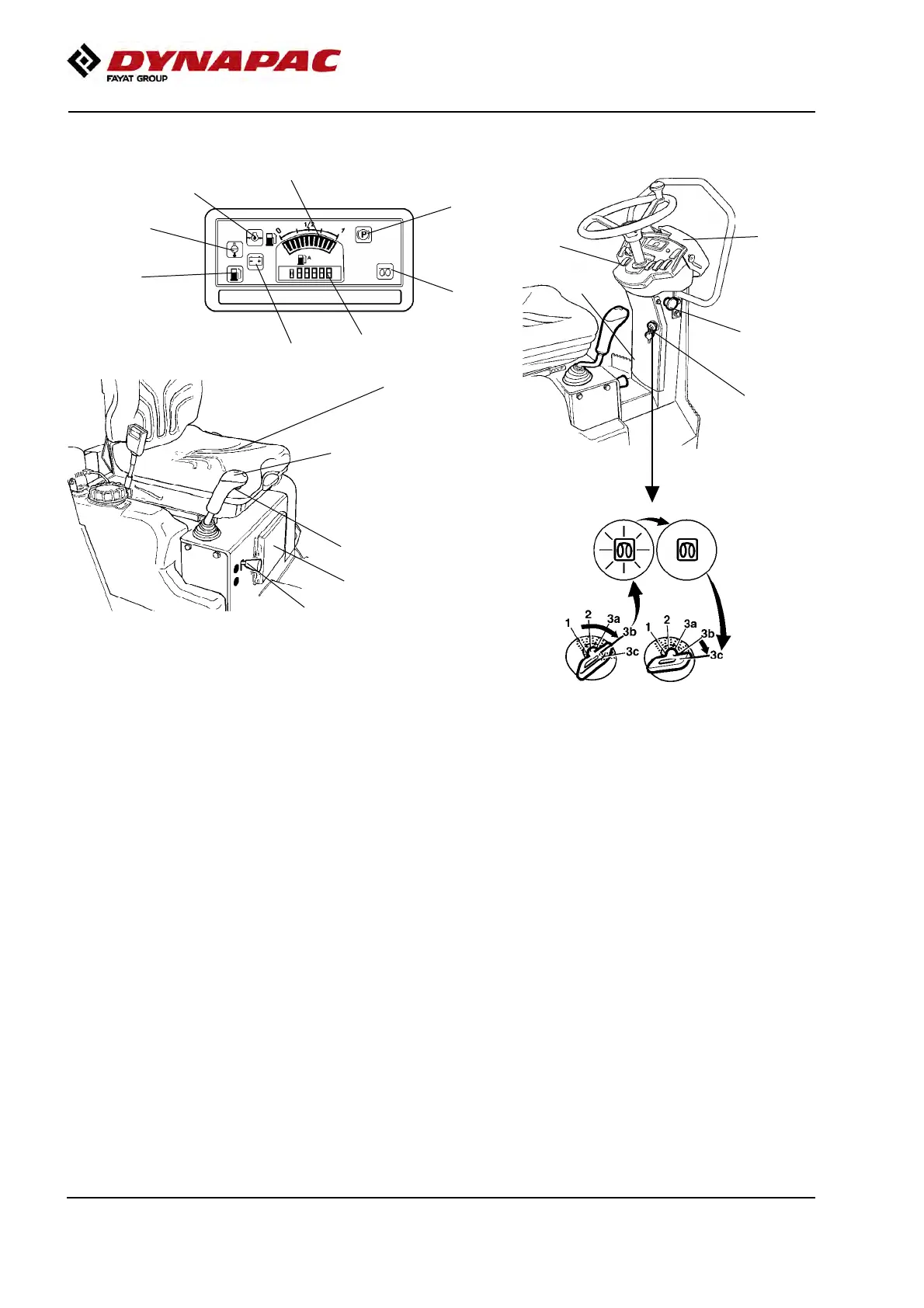

Fig. Operator position
Fig. Control panel
Fig. Operator's
station
1
2
3
23
24
25
26
28
27
30
8
4
6
5
9
7
29
31
30
